CS-2511 T - Echo Chainsaw (SN: C70215001001 - C70215999999) Engine Parts Diagram

Chainsaw

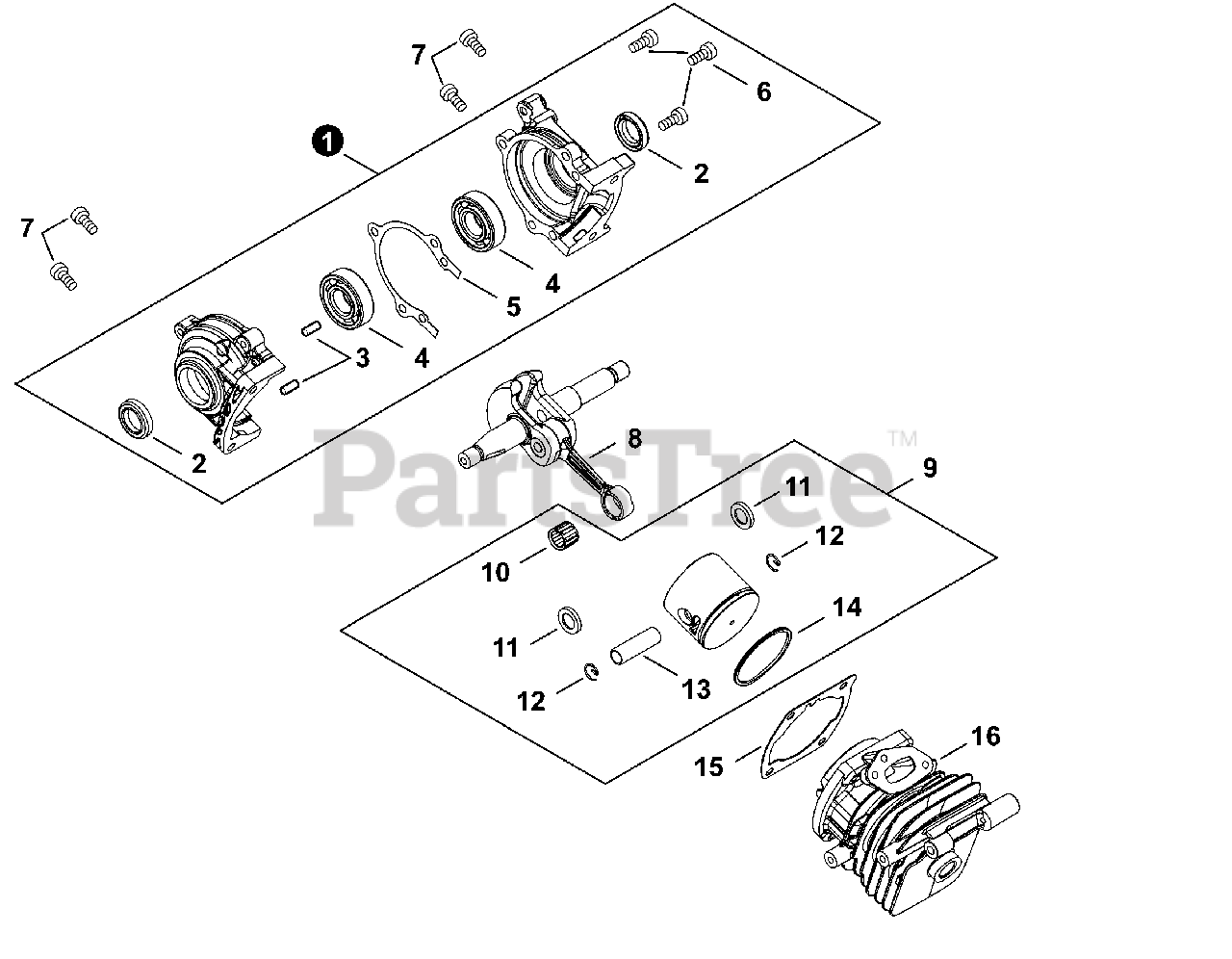

Engine Parts Diagram

  • Title

1

Echo P021050130

CRANKCASE SET

Note: Includes Items 2-6

$117.99

$

Usually ships in 2-4 days

0

2

Echo V505000070

SEAL, OIL 12

$5.99

$

In Stock, only 1 left!

0

3

Echo 90033040080

PIN, LOCATING 4×8

$0.99

$

In Stock, Qty 20+

0

4

Echo 90080036001

BEARING, BALL 6001

$9.49

$

In Stock, only 1 left!

0

5

Echo V102000290

GASKET, CRANKCASE

$2.49

$

Usually ships in 2-4 days

0

6

Echo V804000100

BOLT, TORX 4×16

$0.99

$

In Stock, only 3 left!

0

7

Echo V804000100

BOLT, TORX 4×16

$0.99

$

In Stock, only 3 left!

0

8

Echo A011001440

CRANKSHAFT

$132.99

$

Usually ships in 2-4 days

0

9

Echo P021050120

PISTON KIT

Note: Includes Items 10-14

$66.99

$

Usually ships in 2-4 days

0

10

Echo V553000020

BEARING, NEEDLE 8
(Superseded to V553000140)

$10.99

$

In Stock, only 1 left!

0

11

Echo 10001455930

WASHER, THRUST

$3.49

$

Usually ships in 2-4 days

0

12

Echo 10001504630

RING, SNAP

$0.99

$

In Stock, Qty 9

0

13

Echo V606000020

PIN, PISTON 8

$6.49

$

Usually ships in 2-4 days

0

14

Echo A101000700

RING, PISTON

$8.99

$

Usually ships in 2-4 days

0

15

Echo V100000830

GASKET, CYLINDER

$2.99

$

In Stock, only 2 left!

0

16

Echo P021051920

CYLINDER

$107.99

$

Usually ships in 2-4 days

0
