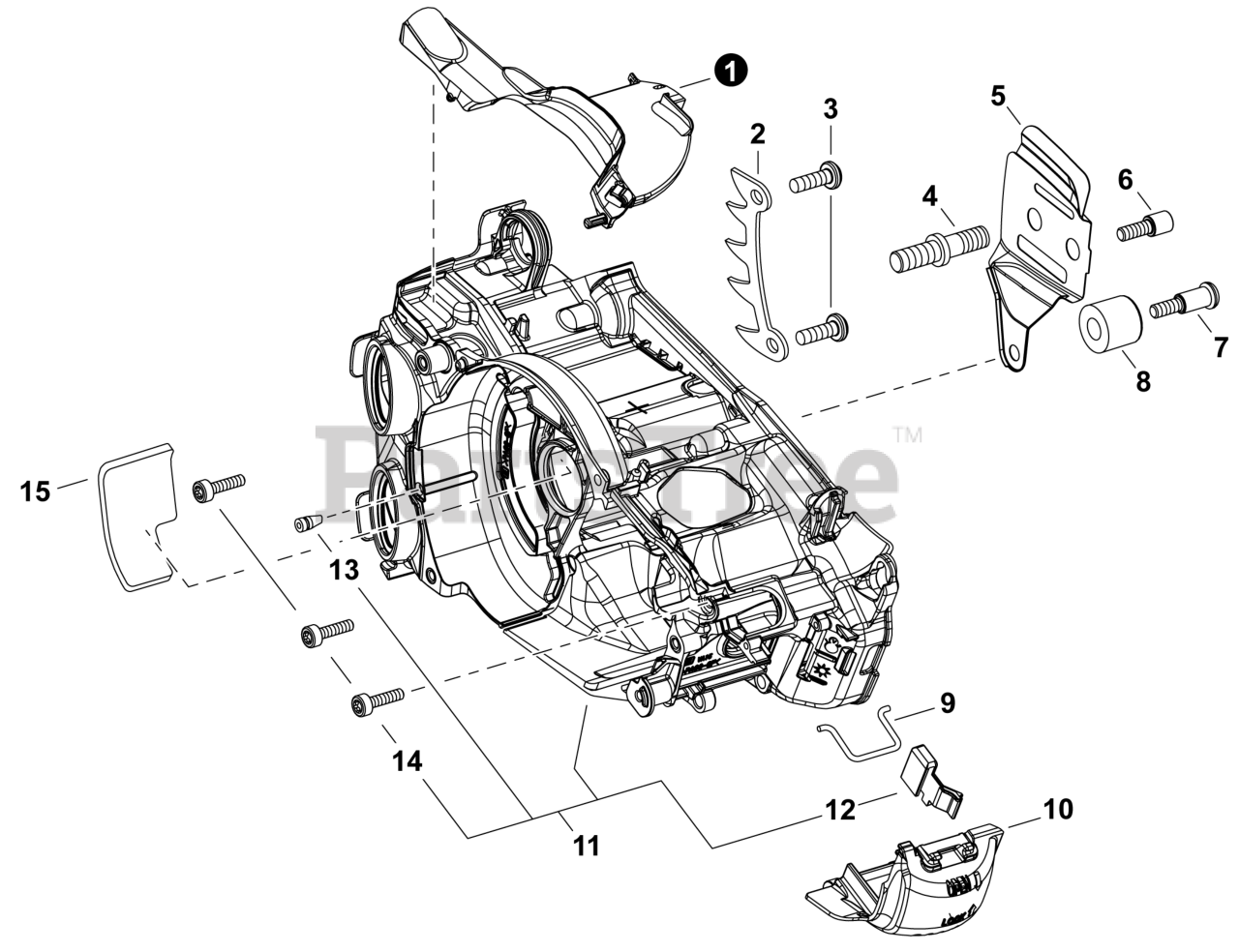

CS-2511 P - Echo Chainsaw (SN: C83715001001 - C83715999999) Engine Cover Parts Diagram

Chainsaw

Engine Cover Parts Diagram

  • Title

1

Echo A127000560

COVER, DUST

$3.99

$

Usually ships in 2-4 days

0

2

Echo C304000000

SPIKE, BUMPER

$4.49

$

In Stock, Qty 5

0

3

Echo V805000240

BOLT, TORX 5x12

$0.99

$

In Stock, Qty 20+

0

4

Echo V225000262

STUD, GUIDE BAR

$3.99

$

In Stock, only 2 left!

0

5

Echo C305000511

PLATE, GUIDE - INNER

$3.49

$

In Stock, only 1 left!

0

6

Echo V203002280

BOLT 5

$0.99

$

In Stock, Qty 9

0

7

Echo V203002260

BOLT 5x12

$0.99

$

In Stock, only 1 left!

0

8

Echo C310000140

CATCHER, CHAIN

$2.99

$

In Stock, only 3 left!

0

9

Echo C649000440

RETAINER, COVER

$2.99

$

In Stock, only 1 left!

0

10

Echo A429000200

COVER, SPARK PLUG

$3.99

$

In Stock, only 2 left!

0

11

Echo P021051914

ENGINE COVER ASSY

Note: Includes Items 12-14

$66.99

$

In Stock, Qty 8

0

12

Echo A219000071

SHUTTER, AIR

$1.99

$

Usually ships in 2-4 days

0

13

Echo 43611413930

VENT ASSY

$6.49

$

In Stock, only 1 left!

0

14

Echo V804000100

BOLT, TORX 4x16

$0.99

$

In Stock, only 3 left!

0

15

Echo V341000201

SHIELD, HEAT

$2.49

$

Usually ships in 2-4 days

0
