CS-2511 P - Echo Chainsaw (SN: C83715001001 - C83715999999) Engine Parts Diagram

Chainsaw

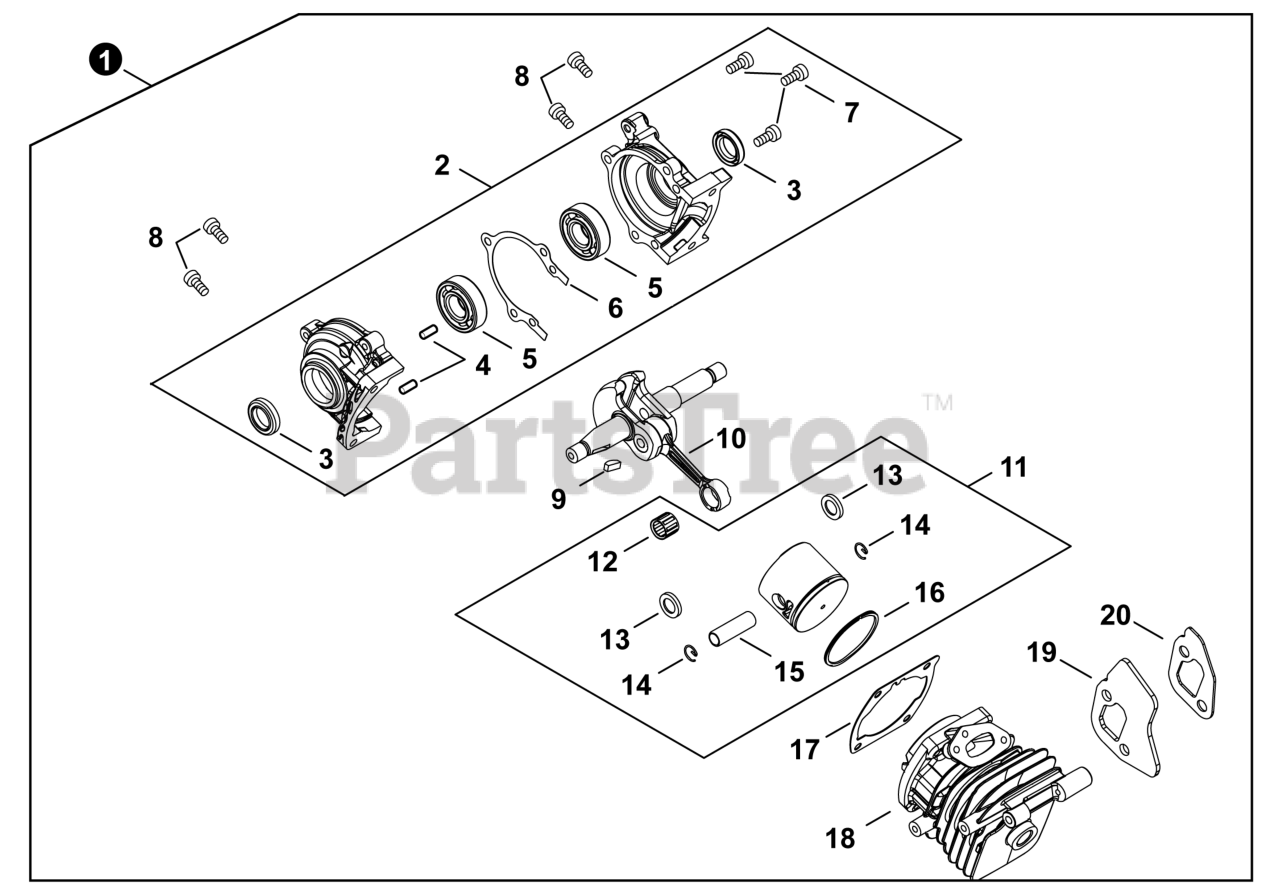

Engine Parts Diagram

  • Title

1

Echo SB1120

SHORT BLOCK

Note: Includes Items 2-20

$212.99

$

Usually ships in 2-4 days

0

2

Echo P021050130

CRANKCASE SET

Note: Includes Items 3-7

$117.99

$

Usually ships in 2-4 days

0

3

Echo V505000070

SEAL, OIL 12

$5.99

$

In Stock, only 1 left!

0

4

Echo 90033040080

PIN, LOCATING 4x8

$0.99

$

In Stock, Qty 20+

0

5

Echo 90080036001

BEARING, BALL 6001

$9.49

$

In Stock, only 1 left!

0

6

Echo V102000290

GASKET, CRANKCASE

$2.49

$

Usually ships in 2-4 days

0

7

Echo V804000100

BOLT, TORX 4x16

$0.99

$

In Stock, only 3 left!

0

8

Echo V804000100

BOLT, TORX 4x16

$0.99

$

In Stock, only 3 left!

0

9

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, Qty 16

0

10

Echo A011001440

CRANKSHAFT

$132.99

$

Usually ships in 2-4 days

0

11

Echo P021050120

PISTON KIT

Note: Includes Items 12-16

$66.99

$

Usually ships in 2-4 days

0

12

Echo V553000020

BEARING, NEEDLE 8
(Superseded to V553000140)

$10.99

$

In Stock, only 1 left!

0

13

Echo 10001455930

WASHER, THRUST

$3.49

$

Usually ships in 2-4 days

0

14

Echo 10001504630

RING, SNAP

$0.99

$

In Stock, Qty 9

0

15

Echo V606000020

PIN, PISTON 8

$6.49

$

Usually ships in 2-4 days

0

16

Echo A101000700

RING, PISTON

$8.99

$

Usually ships in 2-4 days

0

17

Echo V100000830

GASKET, CYLINDER

$2.99

$

In Stock, only 2 left!

0

18

Echo P021051920

CYLINDER

$107.99

$

Usually ships in 2-4 days

0

19

Echo A312000090

HEAT SHIELD, EXHAUST

$4.99

$

Usually ships in 2-4 days

0

20

Echo V104002290

GASKET, EXHAUST

$2.49

$

In Stock, only 2 left!

0
