CS 2260 - Jonsered Chainsaw (2012-05) IGNITION SYSTEM Parts Diagram

Chainsaw

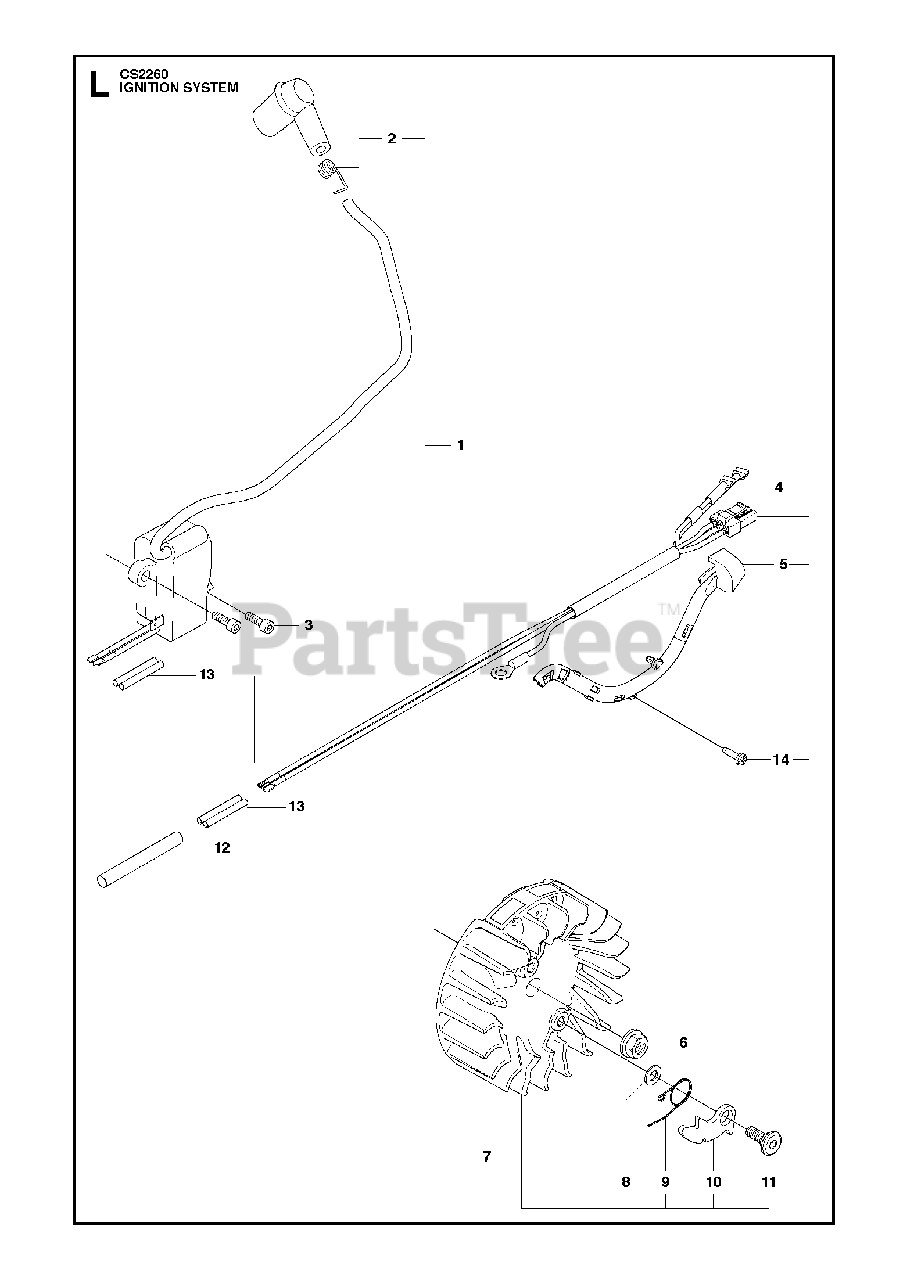

IGNITION SYSTEM Parts Diagram

  • Title
1

Jonsered 575428401

IGNITION MODULE ASSY
(Superseded to 522795106)

$120.99

$

Usually ships in 3-10 days

0

2

Jonsered 501485404

SPARK PLUG CAP ASSY

Note: . 1

$14.99

$

Usually ships in 3-10 days

0

3

Jonsered 503200220

No Description Available

Note: . 1

$6.49

$

In Stock, Qty 18

0

4

Jonsered 575430601

WIRING ASSY

$62.99

$

Usually ships in 3-10 days

0

5

Jonsered 505178201

CABLE HOLDER

Note: . 4

$4.99

$

Usually ships in 3-10 days

0

6

Jonsered 503220401

NUT W/ WASHER

$7.49

$

In Stock, Qty 8

0

7

Jonsered 504872401

FLYWHEEL ASSY

$121.16

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, only 2 left!

0

$7.49

$

In Stock, Qty 10

0

$8.99

$

Usually ships in 3-10 days

0

11

Jonsered 501819901

SCREW M5X14

$6.49

$

In Stock, Qty 6

0

12

Jonsered 504043505

CABLE COVER

Note: . 1 4

$4.99

$

Usually ships in 3-10 days

0

13

Jonsered 503238501

SHRINK HOSE

Note: . 4

$4.99

$

Usually ships in 3-10 days

0

14

Jonsered 503212813

SCREW

Note: . 4

$3.49

$

Usually ships in 3-10 days

0
