CS 2255 - Jonsered Chainsaw (2008-03) ELECTRICAL Parts Diagram

Chainsaw

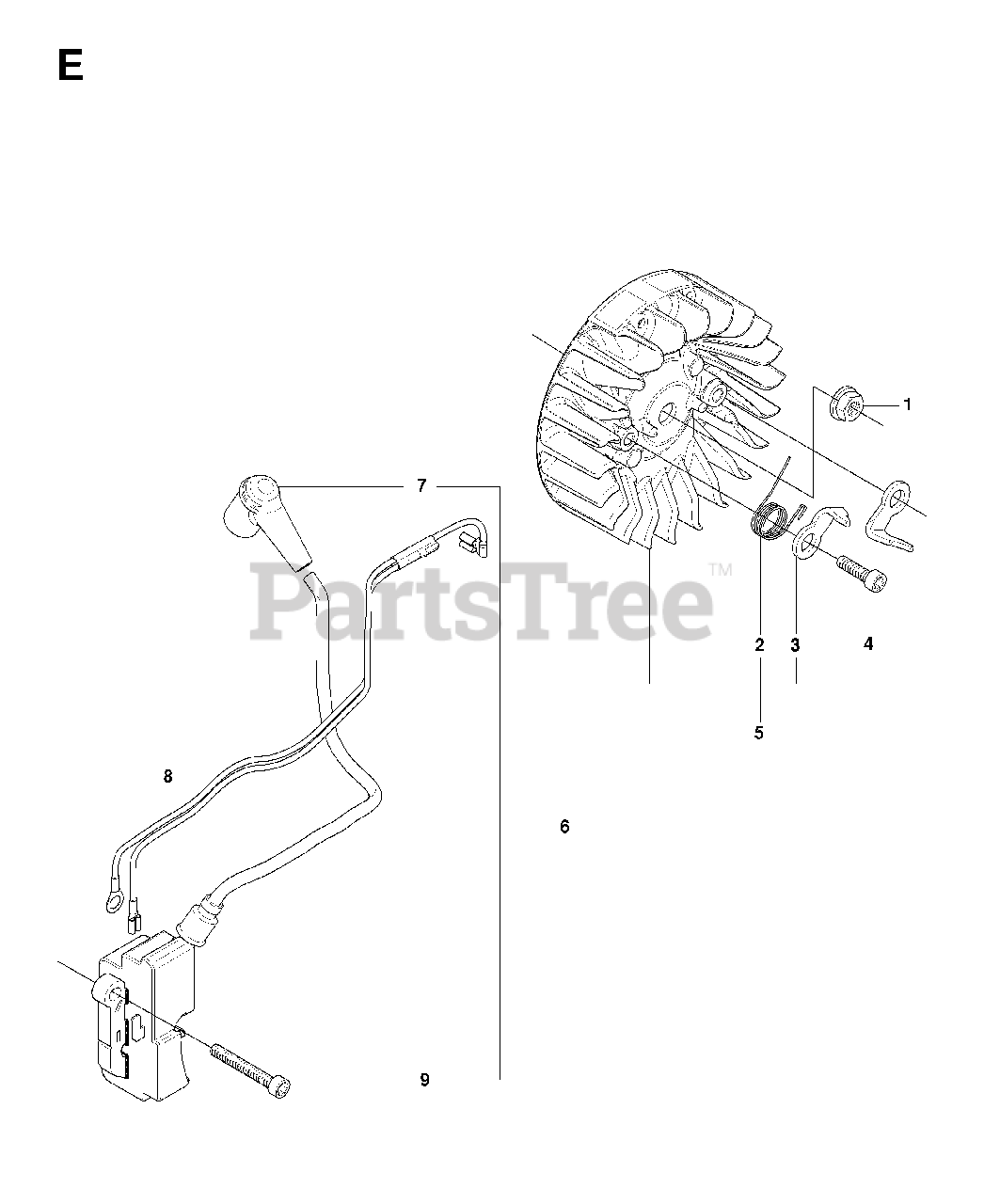

ELECTRICAL Parts Diagram

  • Title
1

Jonsered 503220401

NUT W/ WASHER

$7.49

$

In Stock, Qty 7

0

2

Jonsered 503783201

%SPRING, STARTER CATCH
(Superseded to 529271101)

$7.49

$

In Stock, Qty 7

0

$8.99

$

In Stock, only 2 left!

0

4

Jonsered 501819903

PIN, STARTER CATCH

$9.99

$

In Stock, only 3 left!

0

5

$241.99

$

Usually ships in 3-10 days

0

6

Jonsered 544047001

IGNITION MODULE

$121.99

$

Usually ships in 3-10 days

0

7

Jonsered 501485402

SPARK PLUG CONN. KIT

$13.99

$

In Stock, Qty 5

0

8

Jonsered 537272701

CABLE ASSY

$31.99

$

In Stock, only 1 left!

0

$6.49

$

In Stock, only 2 left!

0
