CS 2255 - Jonsered Chainsaw (2008-03) CLUTCH OIL PUMP Parts Diagram

Chainsaw

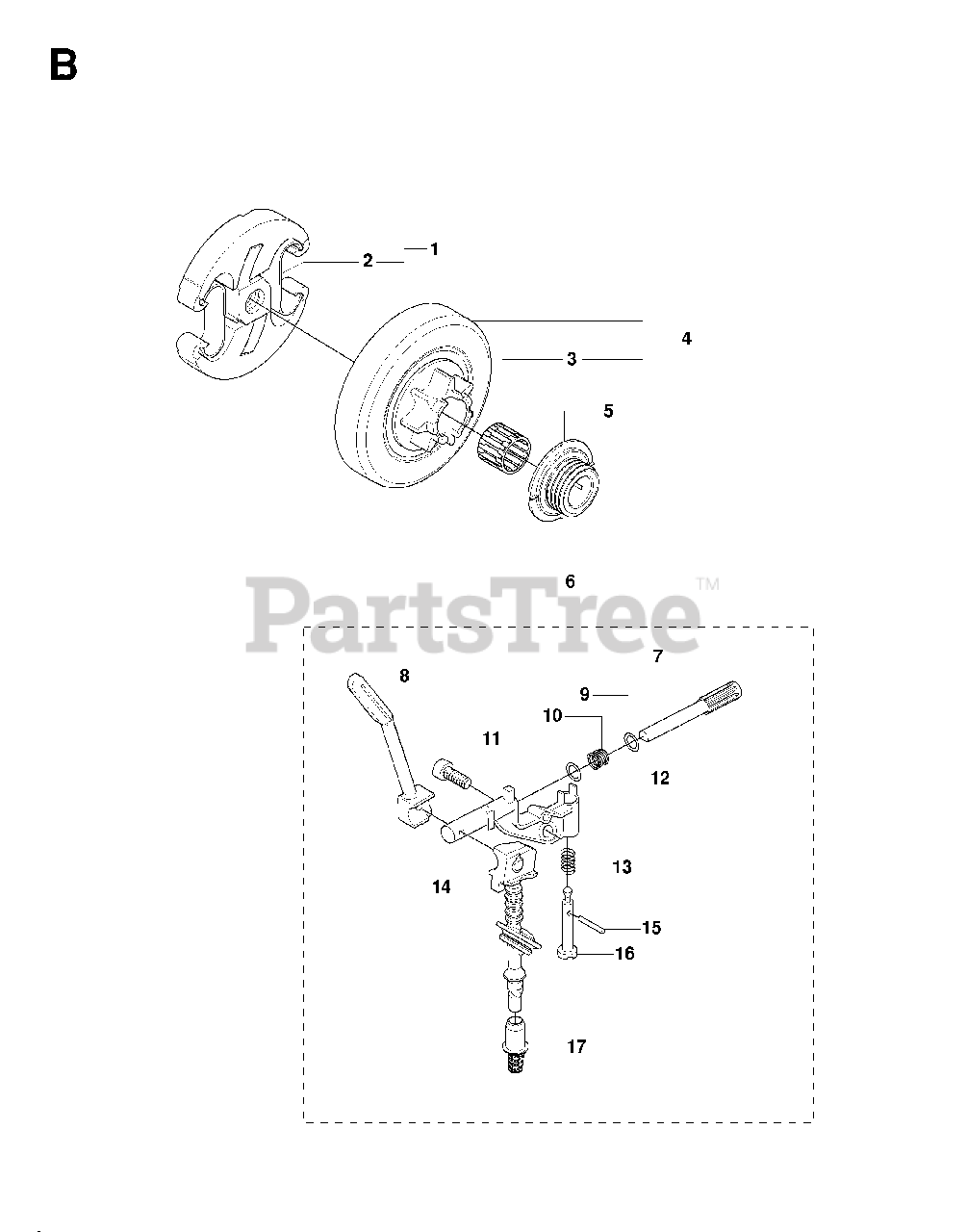

CLUTCH OIL PUMP Parts Diagram

  • Title

1

Jonsered 537110503

CLUTCH

$48.99

$

In Stock, Qty 7

0

2

Jonsered 537359101

SPRING

$8.99

$

In Stock, Qty 12

0

3

Jonsered 503255201

NEEDLE BEARING

$27.99

$

Usually ships in 3-10 days

0

4

Jonsered 537291702

CLUTCH DRUM

$54.99

$

In Stock, only 1 left!

0

4

Jonsered 537291602

CLUTCH DRUM

$54.99

$

Usually ships in 3-10 days

0

5

Jonsered 537252601

PINION
(Superseded to 598718301)

$17.99

$

Usually ships in 3-10 days

0

6

Jonsered 544180102

OIL PUMP COMPLETE
(Superseded to 544180104)

$93.99

$

In Stock, only 1 left!

0

7

Jonsered 537069301

%PUMP PISTON
(Superseded to 537069302)

$24.99

$

In Stock, only 1 left!

0

8

Jonsered 537261501

OIL HOSE

$18.99

$

In Stock, Qty 8

0

9

Jonsered 503230060

WASHER

$5.99

$

In Stock, only 1 left!

0

10

Jonsered 503891601

SPRING

$6.99

$

In Stock, only 3 left!

0

11

Jonsered 503217416

SCREW

$6.49

$

In Stock, Qty 10

0

12

Jonsered 503230060

WASHER

$5.99

$

In Stock, only 1 left!

0

13

Jonsered 503891501

SPRING

$6.49

$

In Stock, Qty 7

0

14

Jonsered 537261401

RP OIL HOSE
(Superseded to 537261402)

$6.99

$

In Stock, only 4 left!

0

15

Jonsered 721116430

PIN

$4.99

$

In Stock, only 2 left!

0

16

Jonsered 537027101

SCREW

$9.99

$

In Stock, only 2 left!

0

17

Jonsered 537332101

%OIL SCREEN
(Superseded to 505315181)

$6.49

$

In Stock, only 1 left!

0
