CS 2255 - Jonsered Chainsaw (2008-03) CLUTCH COVER Parts Diagram

Chainsaw

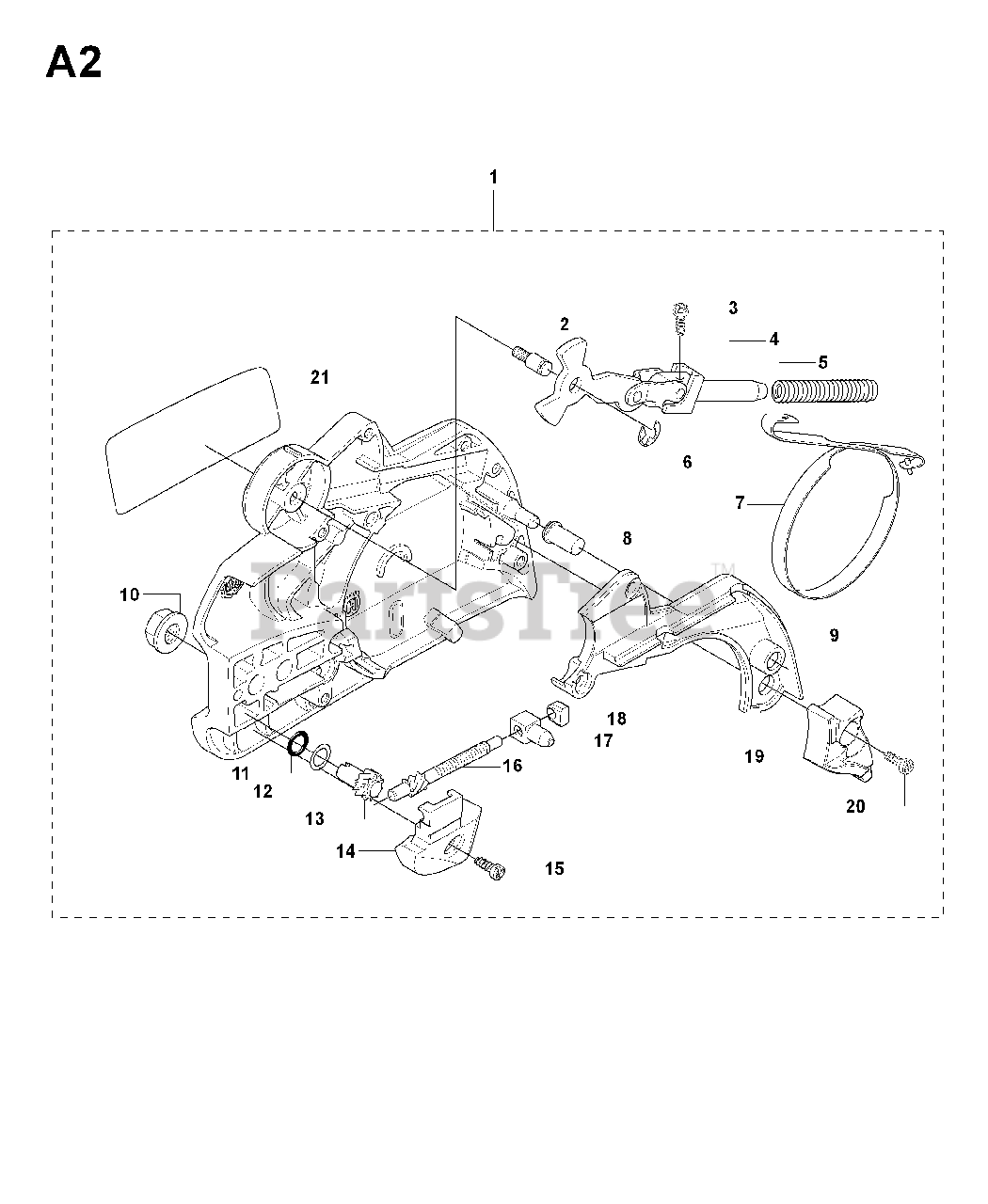

CLUTCH COVER Parts Diagram

  • Title

1

Jonsered 544097903

CLUTCH COVER ASSY

$122.97

$

Usually ships in 3-10 days

0

2

Jonsered 503892901

PIN

$6.49

$

In Stock, only 1 left!

0

3

Jonsered 503217010

SCREW

$4.99

$

In Stock, Qty 17

0

4

Jonsered 503890802

JOINT

$40.99

$

In Stock, only 1 left!

0

5

Jonsered 503465901

SPRING

$8.99

$

In Stock, only 1 left!

0

6

Jonsered 735310820

E-RING 4

$4.99

$

In Stock, Qty 20+

0

7

Jonsered 537043001

BRAKE BAND

$31.99

$

Usually ships in 3-10 days

0

8

Jonsered 503855201

SLEEVE

$7.49

$

In Stock, only 4 left!

0

9

Jonsered 537108001

COVER

$7.99

$

In Stock, Qty 12

0

10

Jonsered 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0

11

Jonsered 740480702

O-RING

$7.49

$

In Stock, only 4 left!

0

12

Jonsered 503230063

WASHER

$6.49

$

In Stock, only 3 left!

0

13

Jonsered 537079402

SCREW

$13.99

$

In Stock, only 2 left!

0

14

Jonsered 537286401

COVER

$7.49

$

In Stock, Qty 9

0

15

Jonsered 503217010

SCREW

$4.99

$

In Stock, Qty 17

0

16

Jonsered 537286501

SCREW
(Superseded to 575260403)

$34.99

$

Usually ships in 3-10 days

0

17

Jonsered 537286601

PAWL

$34.99

$

Usually ships in 3-10 days

0

18

Jonsered 537017401

SLEEVE

$6.49

$

In Stock, Qty 9

0

19

Jonsered 537089001

PROTECTOR

$10.99

$

In Stock, only 3 left!

0

20

Jonsered 503217010

SCREW

$4.99

$

In Stock, Qty 17

0

21

Jonsered 544376802

No Description Available

$4.99

$

Usually ships in 3-10 days

0
