CS 2253 - Jonsered Chainsaw (2012-07) STARTER Parts Diagram

Chainsaw

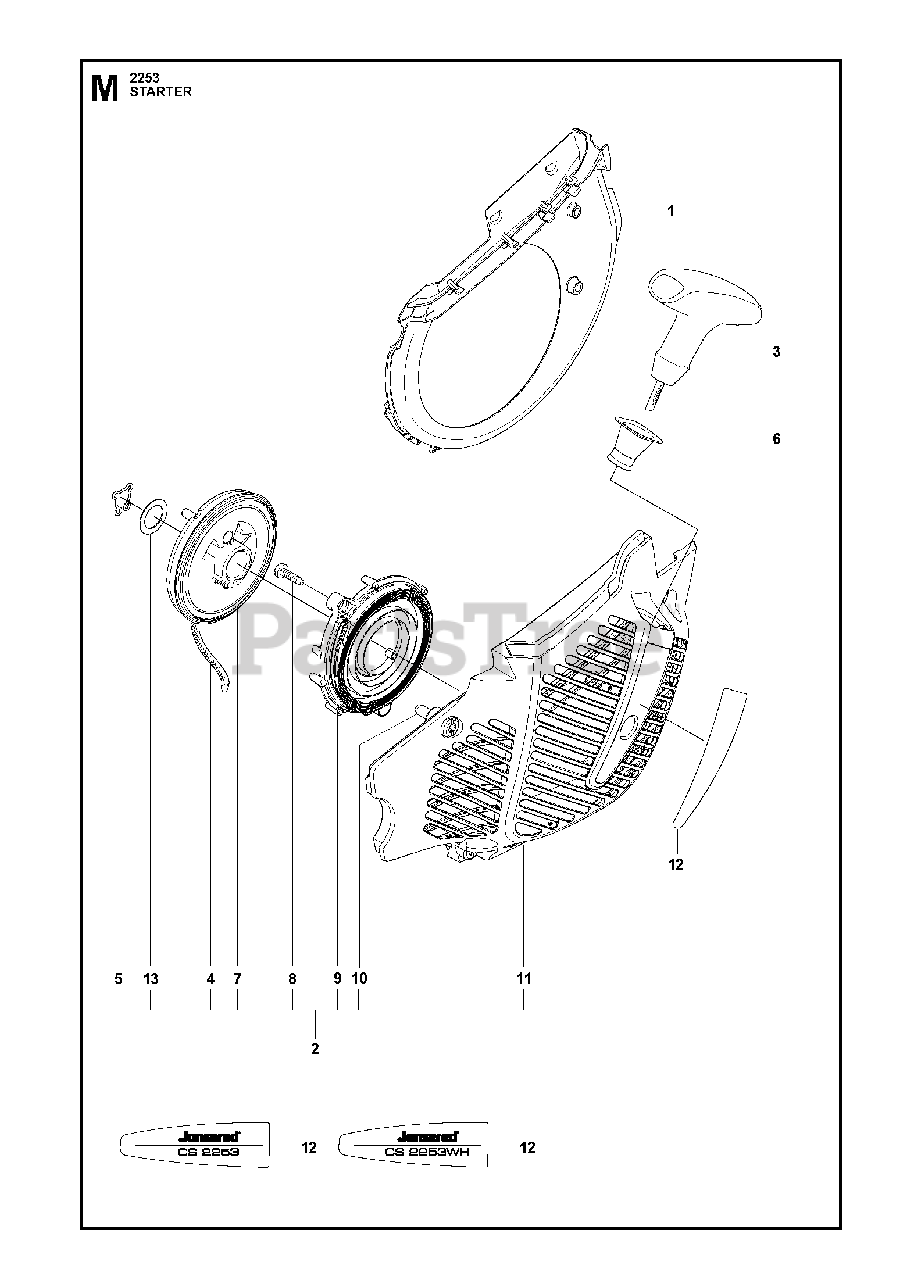

STARTER Parts Diagram

  • Title
1

Jonsered 522796201

COOLING AIR CONDUCTOR

$7.99

$

Usually ships in 3-10 days

0

2

Jonsered 578385802

No Description Available
(Superseded to 578385804)

$

$

Not available

3

Jonsered 544376501

STARTER HANDLE

Note: . 2

$14.99

$

In Stock, only 4 left!

0

4

Jonsered 505305125

STARTER ROPE

Note: . 2

$9.49

$

In Stock, only 2 left!

0

5

Jonsered 575857601

CLIPS

Note: . 2

$5.99

$

In Stock, only 3 left!

0

6

Jonsered 537283201

SLEEVE

Note: . 2 11

$12.99

$

In Stock, only 2 left!

0

7

Jonsered 505158101

STARTER PULLEY ASSY

Note: . 2

$17.99

$

Usually ships in 3-10 days

0

8

Jonsered 503212813

SCREW

Note: . 2

$3.49

$

Usually ships in 3-10 days

0

9

Jonsered 505157901

SPRING CASSETTE ASSY
(Superseded to 505157902)

Note: . 2

$15.99

$

Usually ships in 3-10 days

0

10

Jonsered 544080301

SCREW

Note: . 2

$3.99

$

In Stock, only 3 left!

0

11

Jonsered 578385701

No Description Available
(Superseded to 578385702)

Note: . 2

$

$

Not available

12

Jonsered 579546603

No Description Available

Note: WH

$

$

Not available

12

Jonsered 579546602

No Description Available

$5.99

$

Usually ships in 3-10 days

0

13

Jonsered 505158501

WASHER

Note: . 2

$3.49

$

Usually ships in 3-10 days

0
