CS 2252 - Jonsered Chainsaw (2012-07) FUEL TANK Parts Diagram

Chainsaw

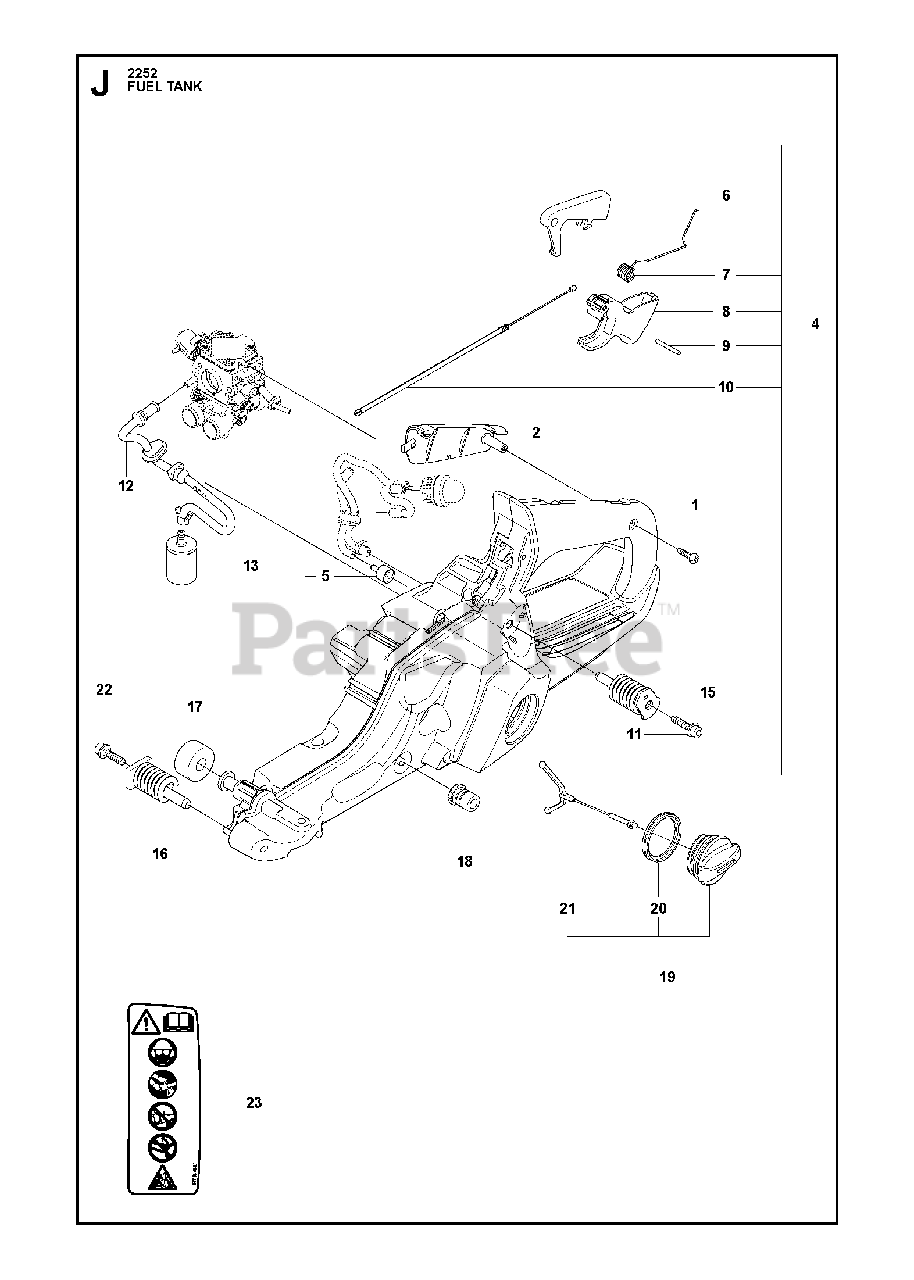

FUEL TANK Parts Diagram

  • Title

1

Jonsered 503212813

SCREW

$3.49

$

Usually ships in 3-10 days

0

2

Jonsered 504106302

No Description Available

$5.99

$

Usually ships in 3-10 days

0

4

Jonsered 580887101

No Description Available
(Superseded to 580887102)

$113.99

$

Usually ships in 3-10 days

0

5

Jonsered 537359501

FUEL TANK VENT
(Superseded to 501152901)

Note: . 4

$17.99

$

In Stock, Qty 6

0

6

Jonsered 544099802

THROTTLE LOCKOUT

Note: . 4

$4.99

$

Usually ships in 3-10 days

0

7

Jonsered 544099901

SPRING

Note: . 4

$7.49

$

In Stock, only 4 left!

0

8

Jonsered 505157702

No Description Available

Note: . 4

$6.99

$

Usually ships in 3-10 days

0

9

Jonsered 720182520

PIN

Note: . 4

$2.99

$

In Stock, Qty 20+

0

10

Jonsered 521887901

THROTTLE CABLE ASSY

Note: . 4

$17.99

$

Usually ships in 3-10 days

0

11

Jonsered 503218874

SCREW

$10.99

$

In Stock, Qty 9

0

12

Jonsered 573993503

No Description Available

$11.99

$

Usually ships in 3-10 days

0

13

Jonsered 503443201

FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

15

Jonsered 578227401

ANTIVIBRATION ELEMENT

$13.99

$

In Stock, Qty 9

0

16

Jonsered 505128701

ANITVIBRATION ELEMENT

$17.99

$

In Stock, only 2 left!

0

17

Jonsered 523085501

DEFLECTION LIMITER

$9.49

$

In Stock, only 1 left!

0

18

Jonsered 501007601

LATERAL SUPPORT

$7.49

$

In Stock, only 4 left!

0

19

Jonsered 544111202

TANK CAP ASSY
(Superseded to 544111203)

$6.99

$

In Stock, Qty 16

0

20

Jonsered 537215001

SEALING
(Superseded to 589241101)

Note: . 19

$8.99

$

In Stock, only 2 left!

0

21

Jonsered 503578903

No Description Available

Note: . 19

$

$

Not available

22

Jonsered 503218876

SCREW

$6.49

$

In Stock, Qty 20+

0

23

Jonsered 577844301

DECAL

Note: . 4

$4.99

$

Usually ships in 3-10 days

0
