CS 2245 - Jonsered Chainsaw (2011-07) STARTER Parts Diagram

Chainsaw

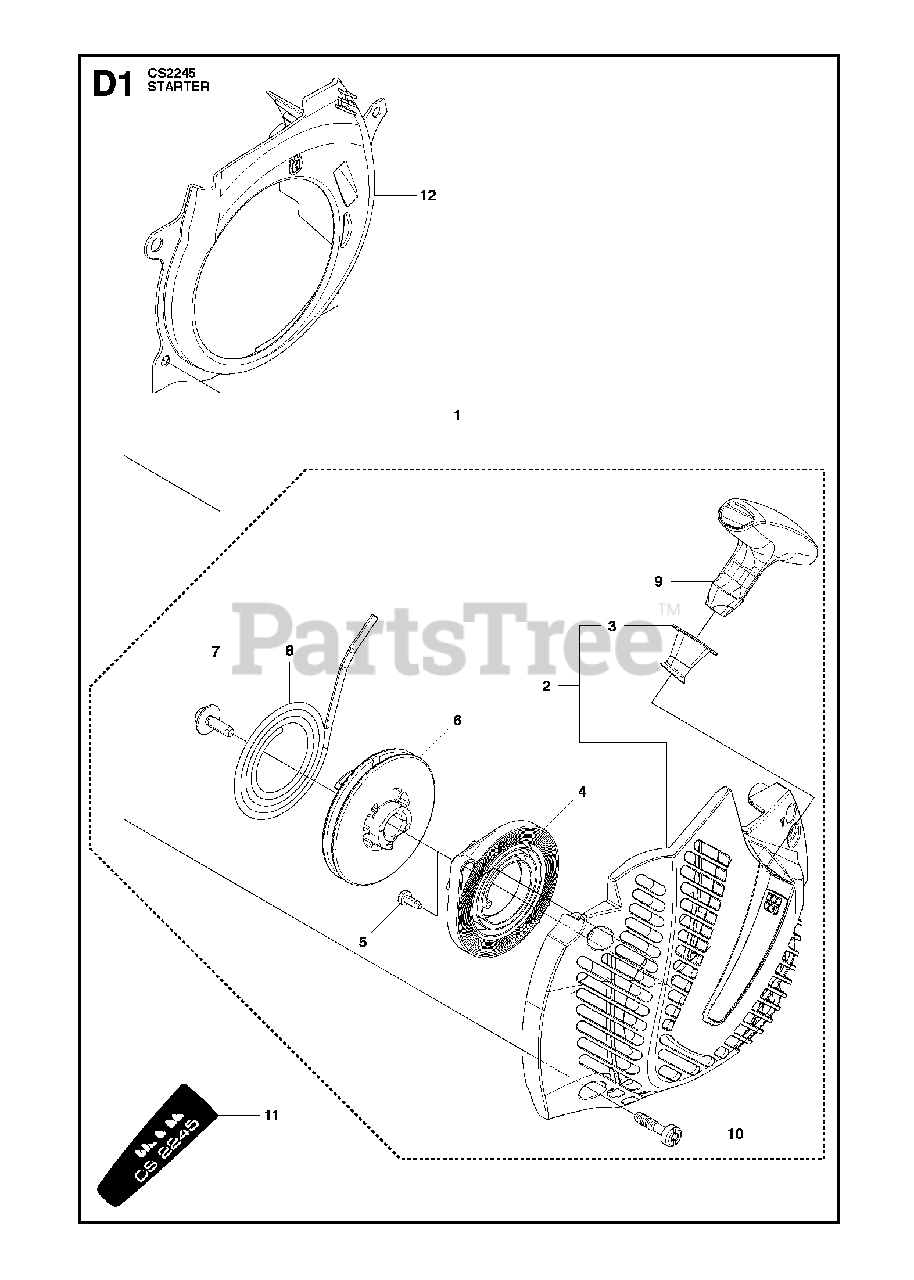

STARTER Parts Diagram

  • Title

1

Jonsered 502300602

STARTER ASSY

$84.99

$

In Stock, only 1 left!

0

2

Jonsered 502300701

STARTER HOUSING

Note: . 1

$26.99

$

In Stock, only 1 left!

0

3

Jonsered 537283201

SLEEVE

Note: . 1 2

$12.99

$

In Stock, only 2 left!

0

4

Jonsered 540057502

SPRING CASSETTE ASSY

Note: . 1

$24.99

$

In Stock, Qty 7

0

5

Jonsered 503212810

SCREW

Note: . 1

$3.99

$

In Stock, Qty 12

0

6

Jonsered 537092501

PULLEY
(Superseded to 537092502)

Note: . 1

$31.99

$

In Stock, only 1 left!

0

7

Jonsered 503217716

SCREW

Note: . 1

$6.49

$

In Stock, Qty 8

0

8

Jonsered 505305125

STARTER ROPE

Note: . 1

$9.49

$

In Stock, Qty 6

0

9

Jonsered 544376501

STARTER HANDLE

Note: . 1

$14.99

$

In Stock, only 4 left!

0

10

Jonsered 503217321

SCREW

Note: . 1

$4.99

$

In Stock, only 4 left!

0

11

Jonsered 505402601

LABEL

$4.99

$

Usually ships in 3-10 days

0

12

Jonsered 544081501

COOLING AIR CONDUCTOR

$10.99

$

In Stock, Qty 9

0
