CS 2240 S - Jonsered Chainsaw (2010-06) STARTER Parts Diagram

Chainsaw

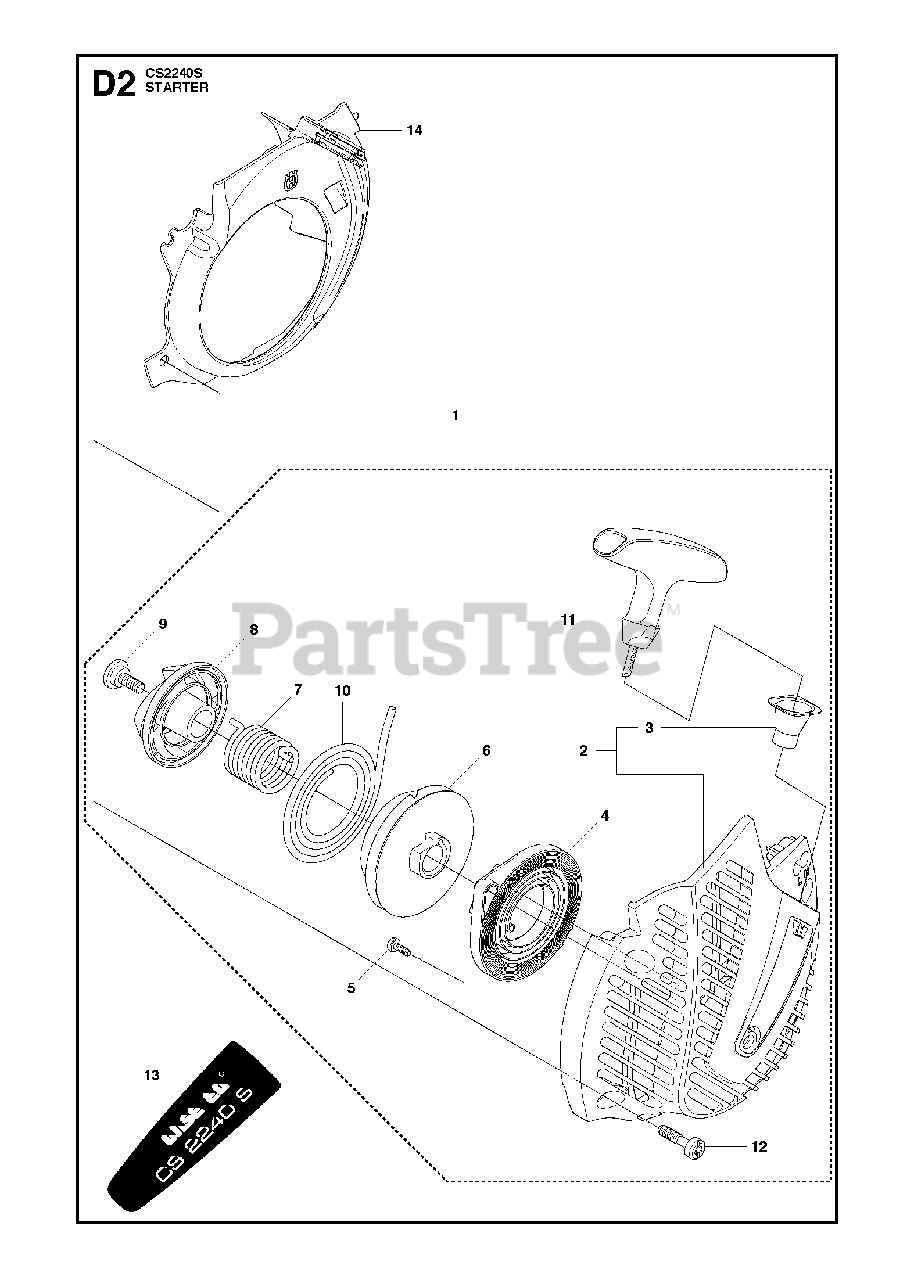

STARTER Parts Diagram

  • Title

1

Jonsered 505425502

STARTER
(Superseded to 505425505)

$60.99

$

Usually ships in 3-10 days

0

2

Jonsered 505425401

STARTER HOUSING
(Superseded to 505425405)

Note: . 1

$20.99

$

In Stock, Qty 7

0

3

Jonsered 537283201

SLEEVE

Note: . 1 2

$12.99

$

In Stock, only 2 left!

0

4

Jonsered 540057502

SPRING CASSETTE ASSY

Note: . 1

$24.99

$

In Stock, Qty 7

0

5

Jonsered 503212810

SCREW

Note: . 1

$3.99

$

In Stock, Qty 12

0

6

Jonsered 537423201

STARTER PULLEY

Note: . 1

$12.99

$

In Stock, only 1 left!

0

7

Jonsered 505647301

SPRING

Note: . 1

$7.49

$

In Stock, Qty 13

0

8

Jonsered 537423301

CARRIER

Note: . 1

$21.99

$

In Stock, only 1 left!

0

9

Jonsered 537426601

SCREW

Note: . 1

$6.49

$

In Stock, Qty 13

0

10

Jonsered 505305125

STARTER ROPE

Note: . 1

$9.49

$

In Stock, Qty 6

0

11

Jonsered 544376501

STARTER HANDLE

Note: . 1

$14.99

$

In Stock, only 4 left!

0

12

Jonsered 503217321

SCREW

Note: . 1

$4.99

$

In Stock, only 4 left!

0

13

Jonsered 522599802

LABEL

$6.99

$

Usually ships in 3-10 days

0

14

Jonsered 544197101

%COOLING AIR CONDUCTOR
(Superseded to 544197102)

$6.99

$

In Stock, only 1 left!

0
