CS 2240 S - Jonsered Chainsaw (2010-06) CHAIN BRAKE CLUTCH COVER Parts Diagram

Chainsaw

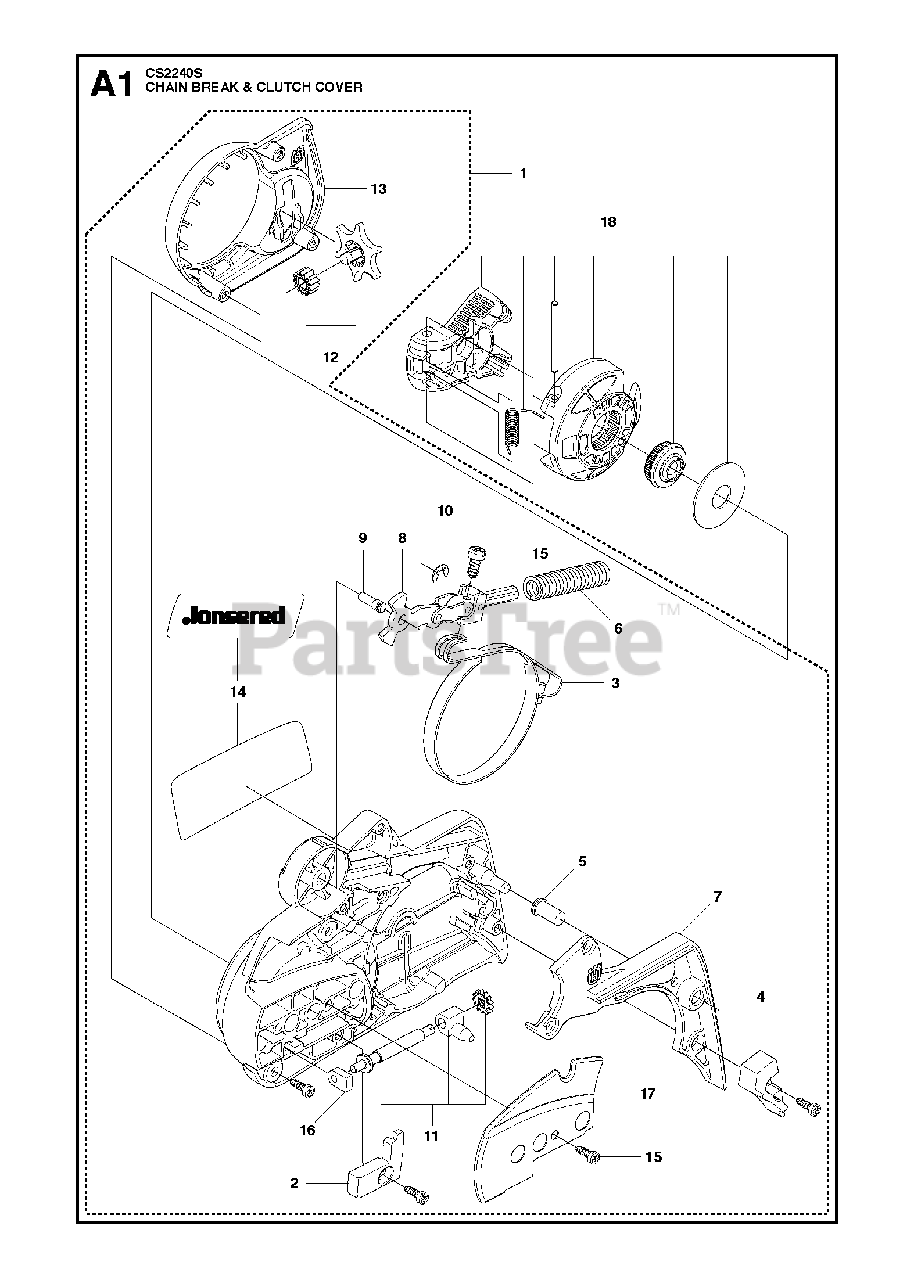

CHAIN BRAKE CLUTCH COVER Parts Diagram

  • Title
1

Jonsered 544194906

CLUTCH COVER ASSY

$68.99

$

Usually ships in 3-10 days

0

2

Jonsered 504542801

COVER

Note: . 1

$4.99

$

In Stock, Qty 5

0

3

Jonsered 544306001

BRAKE BAND ASSY

Note: . 1

$10.99

$

In Stock, Qty 9

0

4

Jonsered 544253101

WEAR PROTECTION

Note: . 1

$6.49

$

In Stock, only 3 left!

0

5

Jonsered 503855201

SLEEVE

Note: . 1

$7.49

$

In Stock, only 3 left!

0

6

Jonsered 505892601

BRAKE SPRING

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

7

Jonsered 544248501

COVER

Note: . 1

$13.99

$

In Stock, only 1 left!

0

8

Jonsered 503890802

JOINT

Note: . 1

$40.99

$

In Stock, only 1 left!

0

9

Jonsered 503892901

PIN

Note: . 1

$6.49

$

In Stock, only 1 left!

0

10

Jonsered 735310820

E-RING 4

Note: . 1

$4.99

$

In Stock, Qty 20+

0

11

Jonsered 537392901

CHAIN TENSIONER SCREW, COMP.

Note: . 1

$13.99

$

In Stock, only 1 left!

0

12

Jonsered 537347202

CHAIN TENSIONER WHEEL

Note: . 1

$6.99

$

Usually ships in 3-10 days

0

13

Jonsered 537392602

No Description Available

Note: . 1

$6.99

$

Usually ships in 3-10 days

0

14

Jonsered 544357502

LABEL

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

15

Jonsered 503217010

SCREW

Note: . 1

$4.99

$

In Stock, Qty 12

0

16

Jonsered 525354301

BEARING SLEEVE

Note: . 1

$9.99

$

Usually ships in 3-10 days

0

17

Jonsered 505321001

WEAR PLATE

Note: . 1

$4.99

$

In Stock, only 4 left!

0

$22.99

$

In Stock, only 1 left!

0
