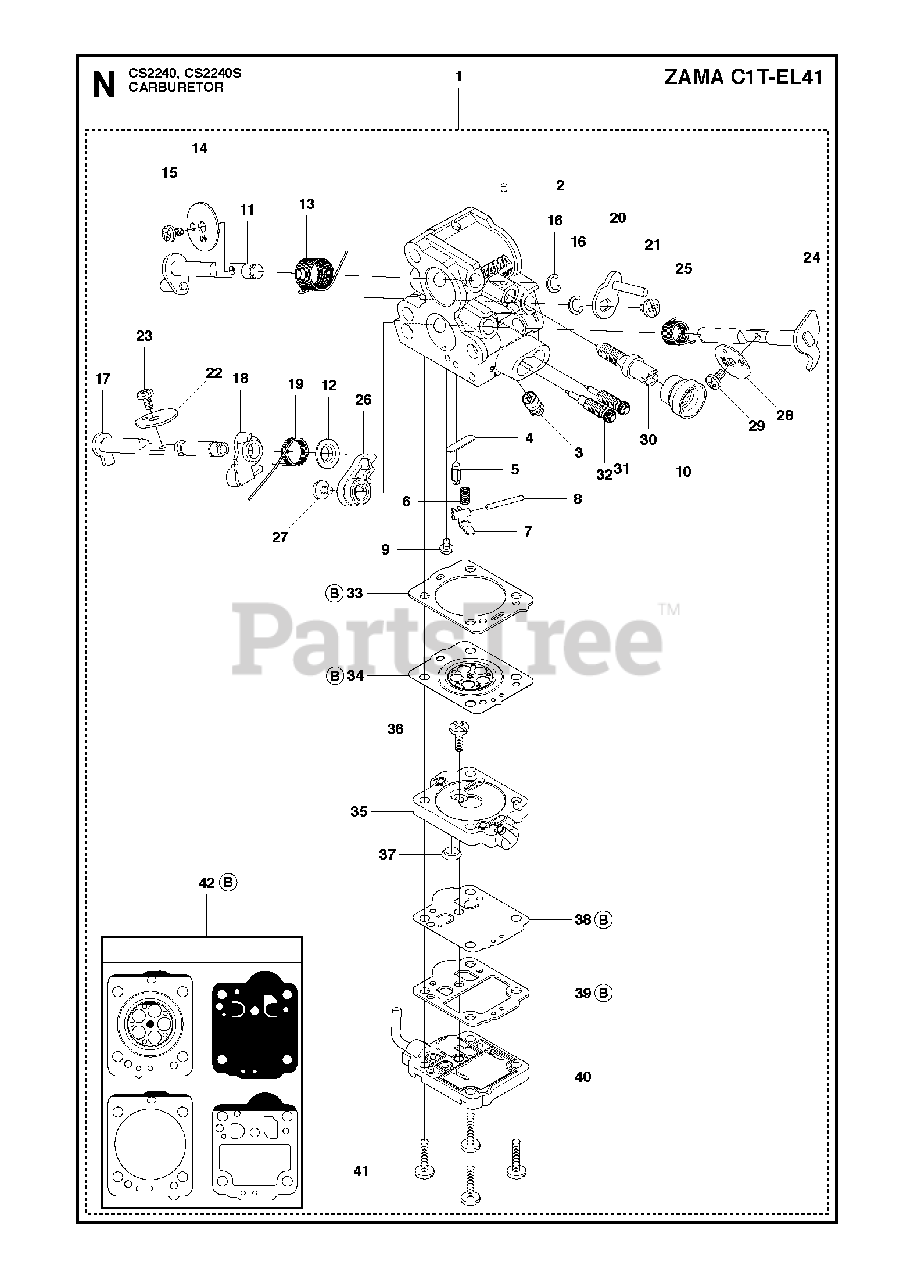

CS 2240 - Jonsered Chainsaw (2010-06) CARBURETOR Parts Diagram

Chainsaw

CARBURETOR Parts Diagram

  • Title

1

Jonsered 506450501

CARBURETOR

$80.99

$

Usually ships in 3-10 days

0

2

Jonsered 503481101

PLUG

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

3

Jonsered 504024001

NOZZLE ASSY

Note: . 1

$11.99

$

Usually ships in 3-10 days

0

4

Jonsered 503535601

PLUG

Note: . 1

$7.49

$

In Stock, Qty 6

0

5

Jonsered 503479701

INLET NEEDLE

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

6

Jonsered 537020301

SPRING
(Superseded to 537273401)

Note: . 1

$

$

Not available

7

Jonsered 503665901

LEVER

Note: . 1

$4.99

$

In Stock, only 2 left!

0

8

Jonsered 503480001

PIN FULCRUM
(Superseded to 537020801)

Note: . 1

$3.49

$

In Stock, only 1 left!

0

9

Jonsered 504024101

SCREW

Note: . 1

$3.49

$

Usually ships in 3-10 days

0

10

Jonsered 505535201

CAP ZAMA 0051034

Note: . 1

$6.49

$

Usually ships in 3-10 days

0

11

Jonsered 504026101

SHAFT ASSY

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

12

Jonsered 505110701

COLLAR ZAMA 005020

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

13

Jonsered 504028501

SPRING

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

14

Jonsered 504027501

VALVE

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

15

Jonsered 503481801

SCREW

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

16

Jonsered 504026701

CIRCLIP

Note: . 1

$3.99

$

In Stock, only 1 left!

0

17

Jonsered 504026201

SHAFT ASSY

Note: . 1

$17.99

$

Usually ships in 3-10 days

0

18

Jonsered 540053701

LEVER

Note: . 1

$5.99

$

Usually ships in 3-10 days

0

19

Jonsered 504028301

SPRING

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

20

Jonsered 504026301

LEVER

Note: . 1

$17.99

$

Usually ships in 3-10 days

0

21

Jonsered 503479001

SCREW

Note: . 1

$3.99

$

In Stock, Qty 8

0

22

Jonsered 504027401

VALVE

Note: . 1

$3.49

$

Usually ships in 3-10 days

0

23

Jonsered 503481801

SCREW

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

24

Jonsered 504026001

SHAFT ASSY

Note: . 1

$11.99

$

Usually ships in 3-10 days

0

25

Jonsered 504028401

SPRING

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

26

Jonsered 544983101

LEVER

Note: . 1

$4.99

$

In Stock, only 2 left!

0

27

Jonsered 503479001

SCREW

Note: . 1

$3.99

$

In Stock, Qty 8

0

28

Jonsered 504027601

VALVE

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

29

Jonsered 503479201

SCREW

Note: . 1

$3.99

$

In Stock, only 2 left!

0

30

Jonsered 504027301

SCREW

Note: . 1

$7.49

$

Usually ships in 3-10 days

0

31

Jonsered 504909201

SCREW

Note: . 1

$9.49

$

In Stock, only 2 left!

0

32

Jonsered 504028101

SCREW

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

33

Jonsered 504024301

GASKET

Note: . 1 42

$4.99

$

Usually ships in 3-10 days

0

34

Jonsered 504024501

DIAPHRAGM

Note: . 1 42

$13.99

$

In Stock, Qty 14

0

35

Jonsered 504024601

BODY

Note: . 1

$22.99

$

Usually ships in 3-10 days

0

36

Jonsered 504028201

SCREW

Note: . 1

$2.49

$

Usually ships in 3-10 days

0

37

Jonsered 504025001

STRAINER

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

38

Jonsered 504025601

DIAPHRAGM

Note: . 1 42

$9.49

$

Usually ships in 3-10 days

0

39

Jonsered 504025701

GASKET

Note: . 1 42

$4.99

$

Usually ships in 3-10 days

0

40

Jonsered 504025901

COVER

Note: . 1

$14.99

$

In Stock, only 1 left!

0

41

Jonsered 504027801

SCREW

Note: . 1

$2.49

$

Usually ships in 3-10 days

0

42

Jonsered 504028601

GASKET KIT
(Superseded to 545008031)

Note: . 1

$24.99

$

Usually ships in 3-10 days

0
