CS 2210 (24A-414C056) - Cub Cadet Chipper/Shredder (2010) Chipper Shredder Chute Assembly Parts Diagram

Chipper/Shredder

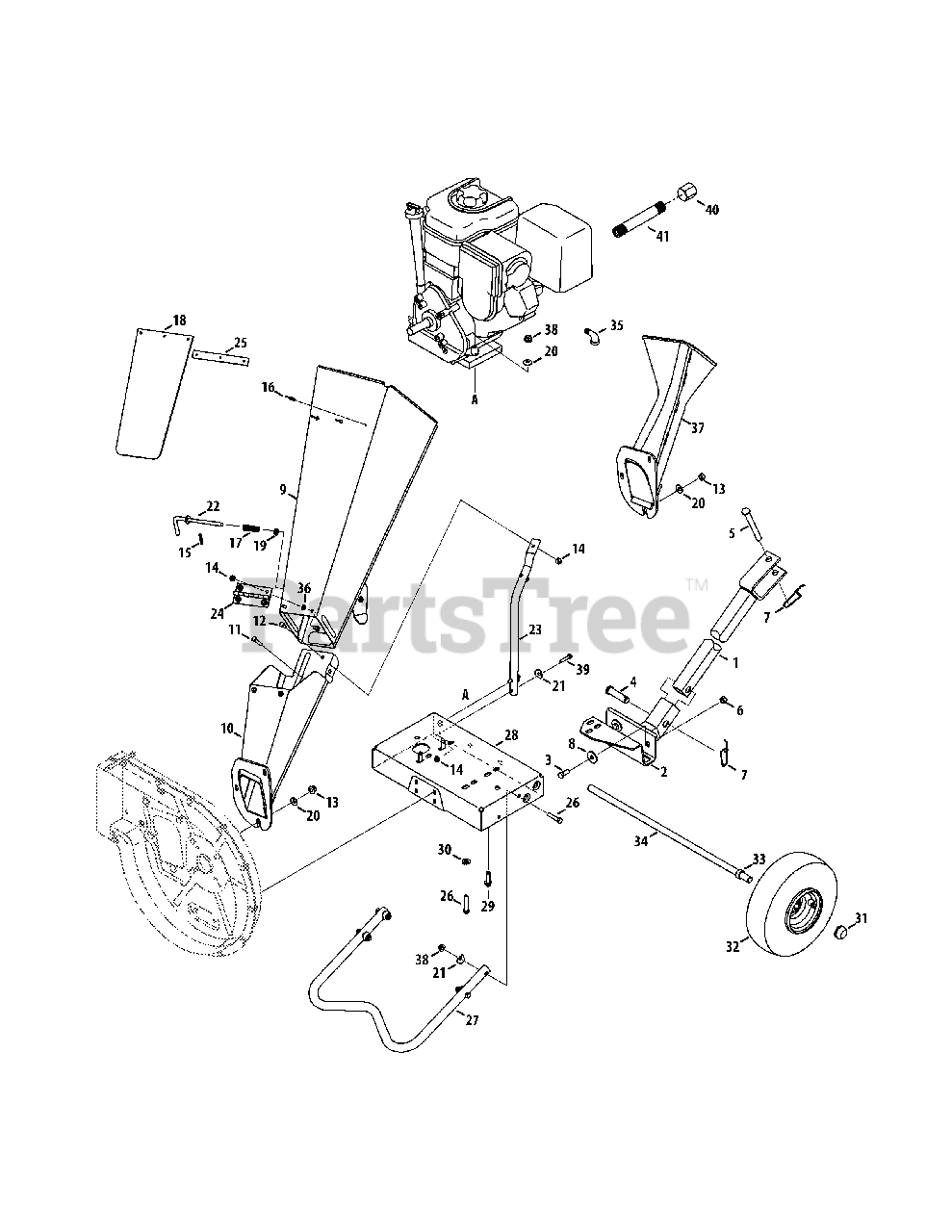

Chipper Shredder Chute Assembly Parts Diagram

  • Title
1

Cub Cadet 981-0133-4021

Tongue Hitch Mount
(Superseded to 981-0133B-0637)

$77.99

$

In Stock, only 1 left!

0

2

Cub Cadet 681-0134A-0637

Base Hitch Mount
(Superseded to 681-0134B-0637)

$83.99

$

In Stock, only 1 left!

0

3

Cub Cadet 710-3001

Hex Cap Screw, 3/8-16 x.88

$7.49

$

In Stock, Qty 9

0

4

Cub Cadet 711-0299

Clevis Pin,.625 x 2.4

$36.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 911-0835

Clevis Pin,.50 x 4.62

$12.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 732-0194

Spring Pin

$4.99

$

In Stock, only 2 left!

0

8

Cub Cadet 936-0133

Flat Washer,.411 x 1.25 x 1.0
(Superseded to 736-0133)

$

$

Not available

9

Cub Cadet 681-04006-4021

Upper Chipper Chute Assembly
(Superseded to 981-04006-4021)

Note: Model CS 3210

$216.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 681-04117-4021

Lower Chipper Chute Assembly

Note: Model CS 3210

$157.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0106

Hex Cap Screw, 1/4-20 x 1.25

Note: Model CS 3210

$3.99

$

In Stock, only 2 left!

0

12

Cub Cadet 710-3013

Screw, 1/4-20 x .50

Note: Model CS 3210

$4.99

$

In Stock, only 1 left!

0

13

Cub Cadet 912-3010

Hex Nut, 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04064

Flange Lock Nut 1/4-20

Note: Model CS 3210

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 914-0104

Cotter Pin
(Superseded to 714-0104)

Note: Model CS 3210

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 728-0175

Pop Rivet

Note: Model CS 3210

$4.99

$

In Stock, Qty 11

0

17

Cub Cadet 932-0306A

Compression Spring,.531 x 1.75

Note: Model CS 3210

$8.49

$

In Stock, only 4 left!

0

18

Cub Cadet 735-0249A

Chute Flap

Note: Model CS 3210

$24.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 936-0140

Flat Washer
(Superseded to 736-0140)

Note: Model CS 3210

$

$

Not available

20

Cub Cadet 736-0242

Bell Washer.340 ID x.872 OD

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 936-0451

Washer,.320 ID x.93 OD
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

22

Cub Cadet 947-04163

Lock Rod

Note: Model CS 3210

$14.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 749-1004-0637

Chipper Chute Support

Note: Model CS 3210

$46.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 981-04032

Chipper Chute Hinge

Note: Model CS 3210

$12.99

$

In Stock, only 1 left!

0

25

Cub Cadet 781-0633

Chute Flap Strip

Note: Model CS 3210

$10.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 710-0805

Hex Cap Screw, 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

27

$52.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 681-0184C-4021

Frame Assembly

Note: Model CS 2210

$117.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 681-0183B-4021

Frame Assembly

Note: Model CS 3210

$55.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 710-0502A

Hex Sems Screw, 3/8-16 x 1.25

$6.99

$

In Stock, only 2 left!

0

30

Cub Cadet 936-0170

Special Lock Washer, 5/16
(Superseded to 736-0170)

$

$

Not available

31

Cub Cadet 726-0214

Push Cap, 5/8

$10.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 634-04627

Wheel, 10 x 4 x 4

$104.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 950-0786

Spacer, .64 x .88 x .38

$7.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 738-0813

Axle, 22.47"

$52.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 937-0195

Elbow Fitting

$16.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 726-0233

Push Nut,.25ID x.50OD

Note: Model CS 3210

$4.49

$

In Stock, only 3 left!

0

37

Cub Cadet 681-04118-4021

Chipper Chute
(Superseded to 681-04118A-4021)

Note: Model CS 2210

$133.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 710-0809

Hex Cap Screw, 1/4-20 x 1.250

Note: Model CS 3210

$6.99

$

In Stock, Qty 19

0

40

Cub Cadet 737-0132

End Cap, 1/4 NPT

$10.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 737-0298

Pipe, 1/4 NPT x 3.5 LG

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 964-04023

Debris Collection Bag
(Superseded to 664P04023A)

Note: Not Shown

$103.99

$

In Stock, only 2 left!

0

Cub Cadet 723-0400

Safety Glasses

Note: Not Shown

$26.99

$

Usually ships in 3-6 days

0
