CS 2188 - Jonsered Chainsaw (2011-05) CYLINDER PISTON Parts Diagram

Chainsaw

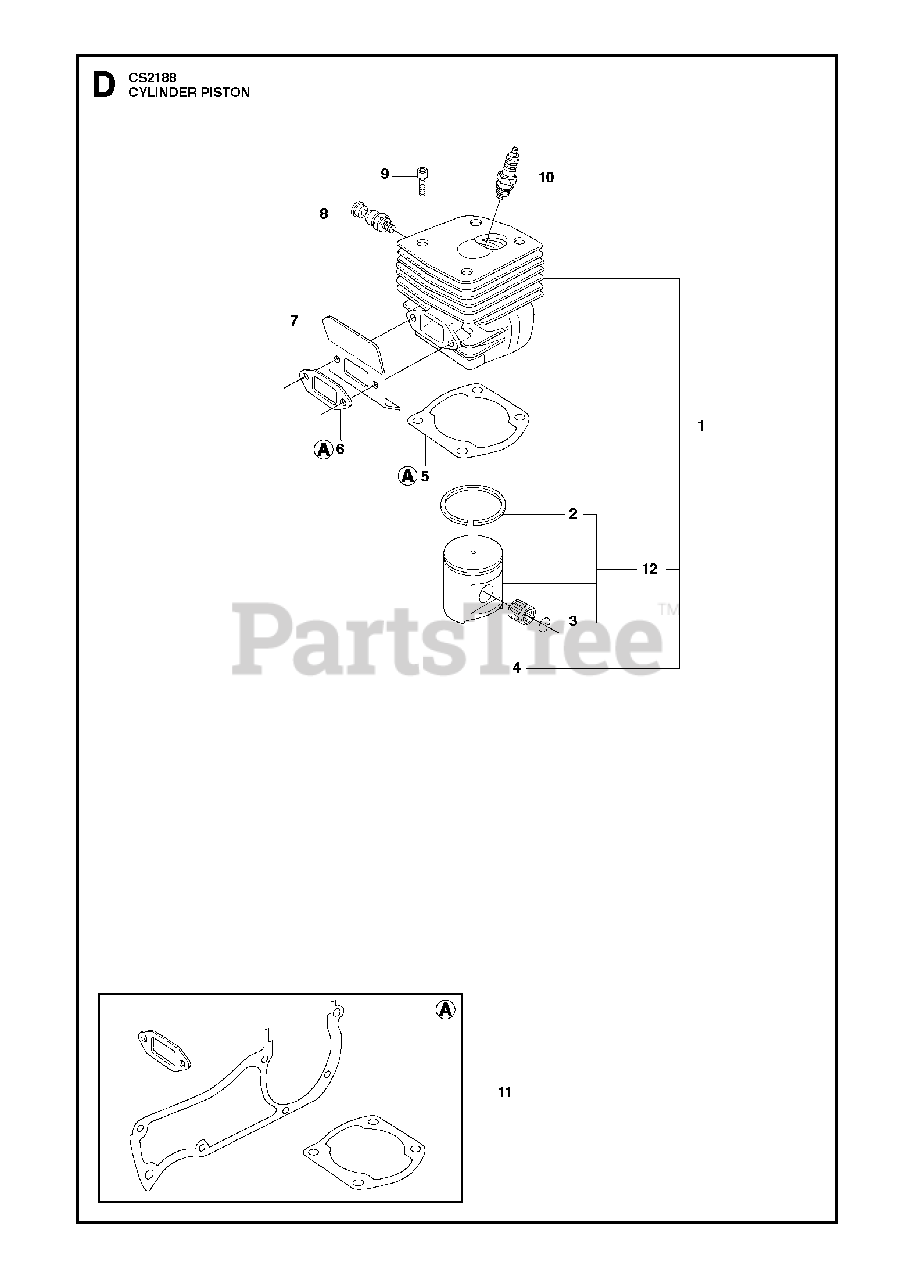

CYLINDER PISTON Parts Diagram

  • Title
1

Jonsered 544006502

CYLINDER ASSY

$433.99

$

Usually ships in 3-10 days

0

2

Jonsered 503289053

PISTON RING

Note: . 12

$20.99

$

Usually ships in 3-10 days

0

3

Jonsered 737441300

CLIP

Note: . 12

$2.99

$

In Stock, only 2 left!

0

4

Jonsered 503256101

SUPPORT BUSHING

Note: . 1

$28.99

$

In Stock, only 1 left!

0

5

Jonsered 537005701

GASKET

Note: . 11

$6.99

$

In Stock, Qty 11

0

6

Jonsered 503775901

GASKET

Note: . 11

$9.49

$

In Stock, only 3 left!

0

7

Jonsered 537086201

DEFLECTOR

$6.99

$

In Stock, only 2 left!

0

8

Jonsered 503715301

DECOMPRESSION VALVE

$34.99

$

Usually ships in 3-10 days

0

9

Jonsered 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 19

0

10

Jonsered 503235108

SPARK PLUG RCJ7Y
(Superseded to 952030150)

Note: RCJ 7 Y

$3.49

$

In Stock, Qty 20+

0

11

Jonsered 537033901

GASKET SET

Note: A Set of gaskets

$14.99

$

In Stock, only 4 left!

0

12

Jonsered 537420202

PISTON ASSY

Note: . 1

$102.99

$

Usually ships in 3-10 days

0
