CS 2188 EPA - Jonsered Chainsaw (2009-05) CHAIN BRAKE Parts Diagram

Chainsaw

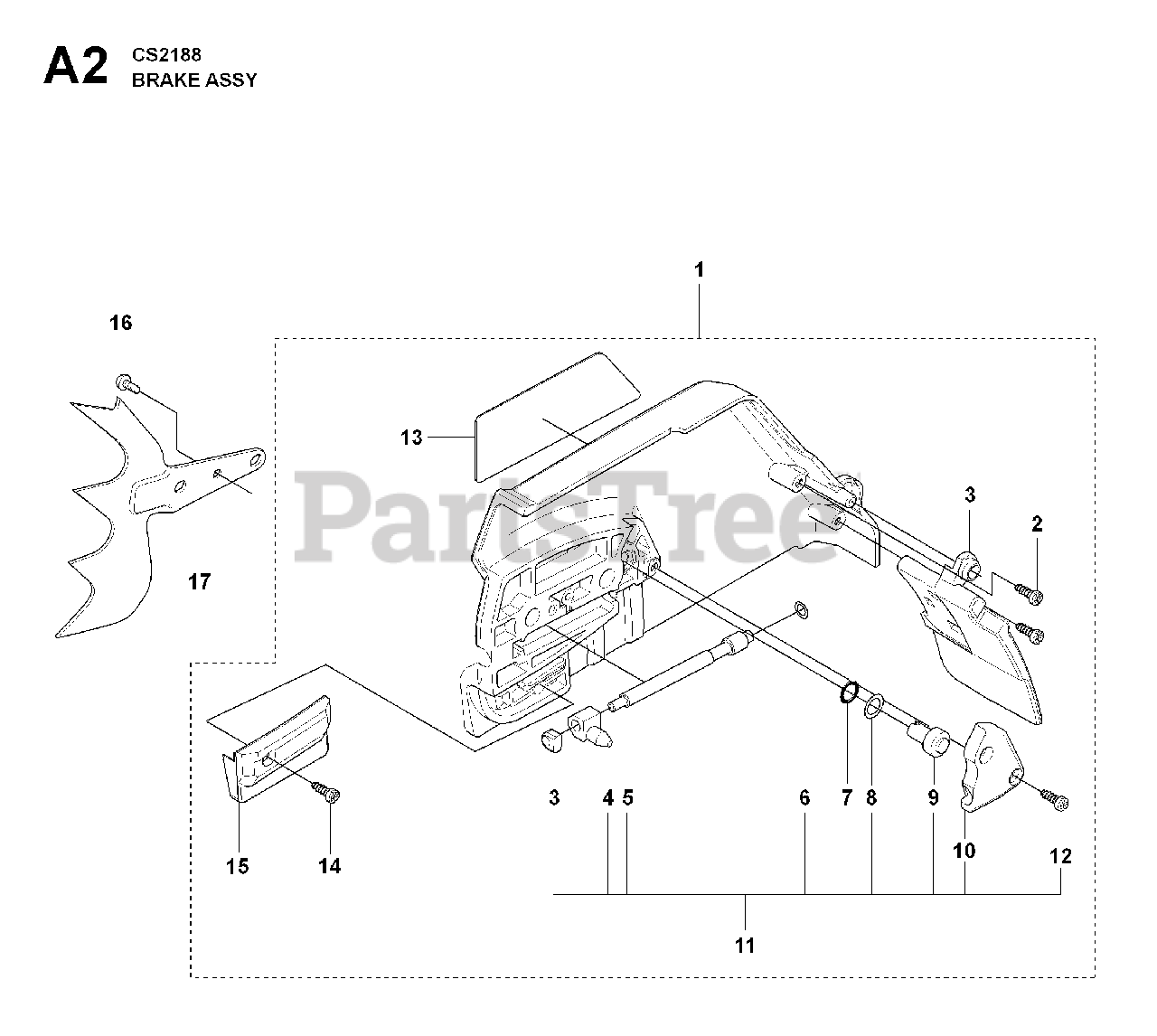

CHAIN BRAKE Parts Diagram

  • Title

1

Jonsered 537331002

CLUTCH COVER

$109.99

$

Usually ships in 3-10 days

0

2

Jonsered 503212810

SCREW

Note: . 1

$3.99

$

In Stock, Qty 14

0

3

Jonsered 537174101

PROTECTOR

Note: . 1 11

$26.99

$

In Stock, only 2 left!

0

4

Jonsered 503998301

COUPLING

Note: . 1 11

$11.99

$

In Stock, only 1 left!

0

5

Jonsered 537079501

ADJUSTER
(Superseded to 537079502)

Note: . 1 11

$20.99

$

In Stock, only 1 left!

0

6

Jonsered 503230066

WASHER

Note: . 1 11

$3.49

$

Usually ships in 3-10 days

0

7

Jonsered 740480702

O-RING

Note: . 1 11

$7.49

$

In Stock, only 4 left!

0

8

Jonsered 503230063

WASHER

Note: . 1 11

$6.49

$

In Stock, only 3 left!

0

9

Jonsered 537079401

RP ADJUSTER
(Superseded to 537079402)

Note: . 1 11

$13.99

$

In Stock, only 2 left!

0

10

Jonsered 537016801

COVER

Note: . 1 11

$9.99

$

In Stock, only 2 left!

0

11

Jonsered 537044102

KIT-CHAIN TENSIONER

Note: . 1

$60.99

$

In Stock, Qty 10

0

12

Jonsered 503212810

SCREW

Note: . 1 11

$3.99

$

In Stock, Qty 14

0

13

Jonsered 537033802

DECAL

Note: . 1

$4.99

$

In Stock, only 1 left!

0

14

Jonsered 503212810

SCREW

Note: . 1

$3.99

$

In Stock, Qty 14

0

15

Jonsered 537043401

CHAIN GUIDE

Note: . 1

$7.99

$

In Stock, Qty 7

0

16

Jonsered 503212810

SCREW

$3.99

$

In Stock, Qty 14

0

17

Jonsered 503922701

FELLING DOG

$26.99

$

Usually ships in 3-10 days

0
