CS 2186 - Jonsered Chainsaw (2007-01) CLUTCH OIL PUMP Parts Diagram

Chainsaw

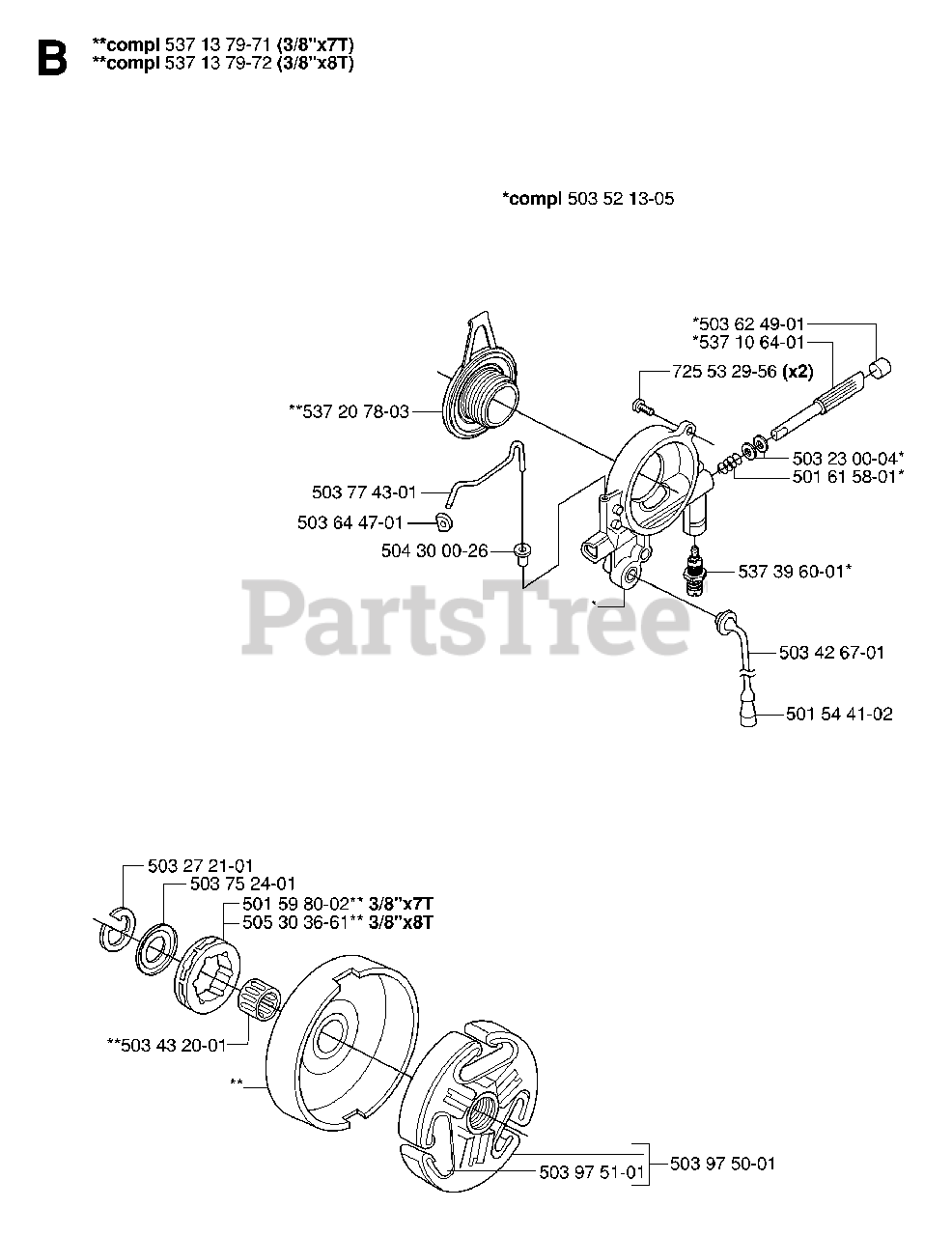

CLUTCH OIL PUMP Parts Diagram

  • Title

5371379-71

Jonsered 537137971

CLUTCH ASSY

$56.99

$

In Stock, only 1 left!

0

5371379-72

Jonsered 537137972

CLUTCH ASSY

$51.99

$

Usually ships in 3-10 days

0

5035213-05

Jonsered 503521305

OIL PUMP

$109.99

$

In Stock, only 3 left!

0

5372078-03

Jonsered 537207803

OIL PUMP PINION
(Superseded to 537207806)

$13.84

$

Usually ships in 3-10 days

0

5037743-01

Jonsered 503774301

PIPE

$11.99

$

In Stock, only 1 left!

0

5036447-01

Jonsered 503644701

GROMMET

$6.99

$

Usually ships in 3-10 days

0

5043000-26

Jonsered 504300026

SEAL

$4.99

$

In Stock, Qty 6

0

5032721-01

Jonsered 503272101

RETAINING RING

$3.99

$

In Stock, Qty 14

0

5037524-01

Jonsered 503752401

WASHER

$6.49

$

In Stock, Qty 6

0

5015980-02

Jonsered 501598002

68210 RIMSPROCKET
(Superseded to 640200215)

$8.49

$

In Stock, Qty 8

0

5053036-61

Jonsered 505303661

22273 SPROCKET
(Superseded to 608000112)

$7.99

$

Usually ships in 3-10 days

0

5034320-01

Jonsered 503432001

CLUTCH DRUM BEARING

$17.99

$

In Stock, only 4 left!

0

5039751-01

Jonsered 503975101

CLUTCH SPRING

$5.99

$

In Stock, only 3 left!

0

5039750-01

Jonsered 503975001

CLUTCH

$59.24

$

Usually ships in 3-10 days

0

5015441-02

Jonsered 501544102

OIL SCREEN

$17.99

$

In Stock, only 1 left!

0

5034267-01

Jonsered 503426701

OIL HOSE

$18.99

$

Usually ships in 3-10 days

0

5373960-01

Jonsered 537396001

INSERT OIL PUMP

$13.99

$

In Stock, only 1 left!

0

5016158-01

Jonsered 501615801

SPRING

$6.99

$

Usually ships in 3-10 days

0

5032300-04

Jonsered 503230004

WASHER 6.1X9

$4.99

$

Usually ships in 3-10 days

0

7255329-56

Jonsered 725532956

SCREW MC6S 5X16
(Superseded to 725532955)

$7.99

$

In Stock, Qty 20+

0

5371064-01

Jonsered 537106401

PUMP PISTON

$14.99

$

Usually ships in 3-10 days

0

5036249-01

Jonsered 503624901

PLUG

$8.99

$

Usually ships in 3-10 days

0
