CS 2186 EPA - Jonsered Chainsaw (2009-05) CARBURETOR DETAILS Parts Diagram

Chainsaw

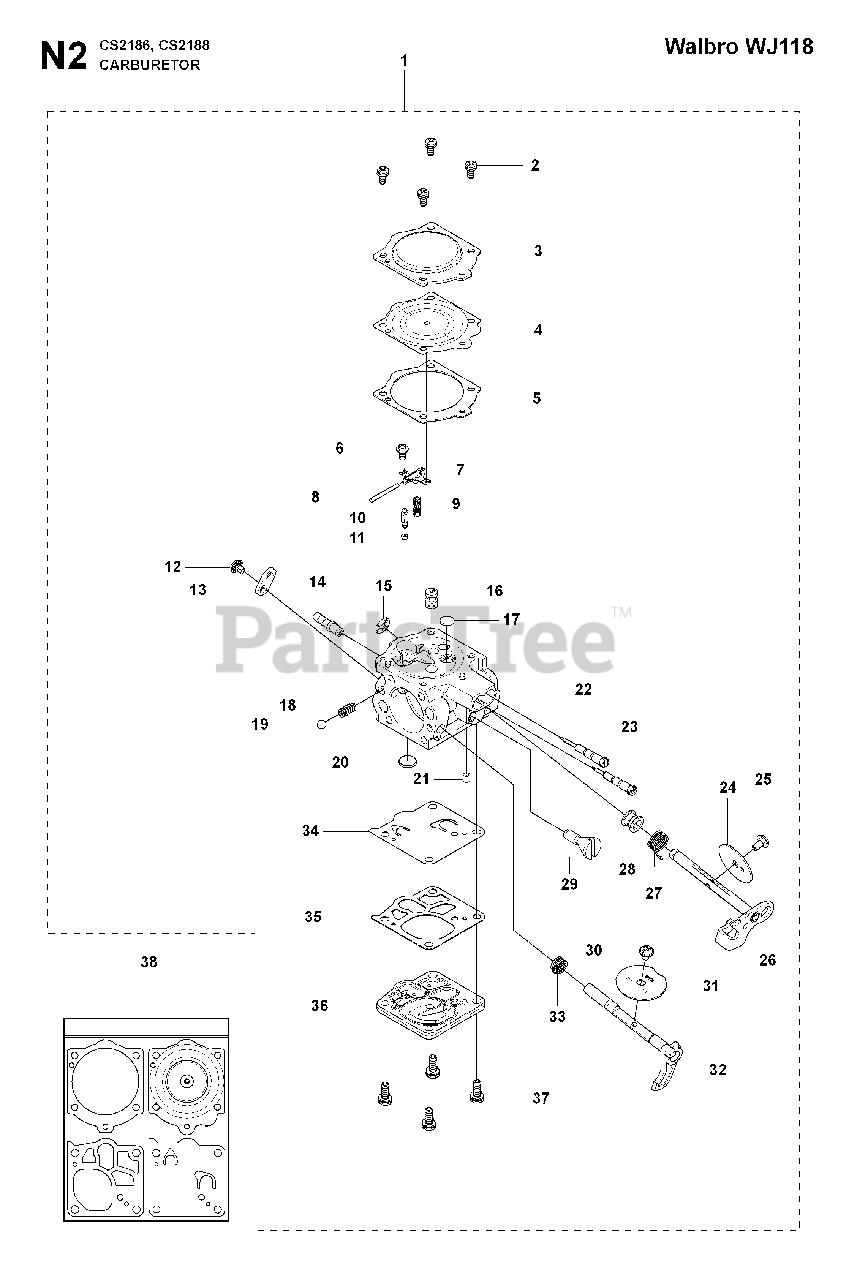

CARBURETOR DETAILS Parts Diagram

  • Title
1

Jonsered 501355401

CARBURETOR

$108.99

$

Usually ships in 3-10 days

0

2

Jonsered 503108701

SCREW W/ WASHER
(Superseded to 503584601)

Note: . 1

$4.99

$

In Stock, only 4 left!

0

3

Jonsered 505316702

DIAPHRAM COVER

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

4

Jonsered 505316715

MAIN DIAPHRAGM

Note: . 1 38

$91.99

$

Usually ships in 3-10 days

0

5

Jonsered 501467501

GASKET

Note: . 1 38

$10.99

$

In Stock, only 2 left!

0

6

Jonsered 505316717

SCREW

Note: . 1

$7.99

$

In Stock, Qty 6

0

7

Jonsered 505316734

LEVER

Note: . 1

$13.99

$

In Stock, Qty 7

0

8

Jonsered 505316731

PIN

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

9

Jonsered 504791201

SPRING

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

10

Jonsered 503563401

INLET NEEDLE

Note: . 1

$17.99

$

In Stock, Qty 9

0

11

Jonsered 503592301

SEAT IN VALVE PLATED

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

12

Jonsered 501468701

SCREW.

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

13

Jonsered 504790701

LEVER CHOKE

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

14

Jonsered 505696901

FITTING FUEL INLET
(Superseded to 504790301)

Note: . 1

$13.99

$

Usually ships in 3-10 days

0

15

Jonsered 505316736

E CLIP
(Superseded to 502119801)

Note: . 1

$9.49

$

Usually ships in 3-10 days

0

16

Jonsered 504790901

NOZZLE

Note: . 1

$21.99

$

Usually ships in 3-10 days

0

17

Jonsered 504790801

PLUG WELCH

Note: . 1

$7.99

$

In Stock, Qty 8

0

18

Jonsered 503117701

SPRING 394

Note: . 1

$9.49

$

Usually ships in 3-10 days

0

19

Jonsered 503117101

BALL 394

Note: . 1

$11.99

$

Usually ships in 3-10 days

0

20

Jonsered 501666101

FUEL INLET SCREEN

Note: . 1

$14.99

$

Usually ships in 3-10 days

0

21

Jonsered 503800501

PLUG FRICTION

Note: . 1

$9.49

$

In Stock, Qty 10

0

22

Jonsered 504791801

NEEDLE

Note: . 1

$7.99

$

In Stock, only 1 left!

0

23

Jonsered 544971301

NEEDLE

Note: . 1

$14.99

$

Usually ships in 3-10 days

0

24

Jonsered 503800001

THROTTLE FLAP

Note: . 1

$5.99

$

Usually ships in 3-10 days

0

25

Jonsered 544111501

SCREW

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

26

Jonsered 504790401

SHAFT ASSY THROTTLE

Note: . 1

$14.99

$

Usually ships in 3-10 days

0

27

Jonsered 504791401

%SPRING
(Superseded to 576138201)

Note: . 1

$17.99

$

Usually ships in 3-10 days

0

28

Jonsered 502103101

No Description Available

Note: . 1

$11.99

$

Usually ships in 3-10 days

0

29

Jonsered 504791101

SCREW

Note: . 1

$43.99

$

Usually ships in 3-10 days

0

30

Jonsered 537003401

SCREW
(Superseded to 501468701)

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

31

Jonsered 505316707

CHOKE FLAP

Note: . 1

$3.49

$

Usually ships in 3-10 days

0

32

Jonsered 504790501

SHAFT ASSY

Note: . 1

$49.99

$

Usually ships in 3-10 days

0

33

Jonsered 504791501

SPRING CHOKE

Note: . 1

$20.99

$

In Stock, only 2 left!

0

34

Jonsered 544897201

DIAPHRAM PUMP

Note: . 1 38

$26.99

$

In Stock, only 2 left!

0

35

Jonsered 503117201

GASKET

Note: . 1 38

$11.99

$

In Stock, only 1 left!

0

36

Jonsered 504790301

COVER PUMP

Note: . 1

$13.99

$

Usually ships in 3-10 days

0

37

Jonsered 503117501

SCREW W/ WASHER

Note: . 1

$9.49

$

Usually ships in 3-10 days

0

38

Jonsered 522591801

DIAPHRAGM SET

$20.99

$

In Stock, only 1 left!

0
