CS 2172 - Jonsered Chainsaw (2010-08) STARTER Parts Diagram

Chainsaw

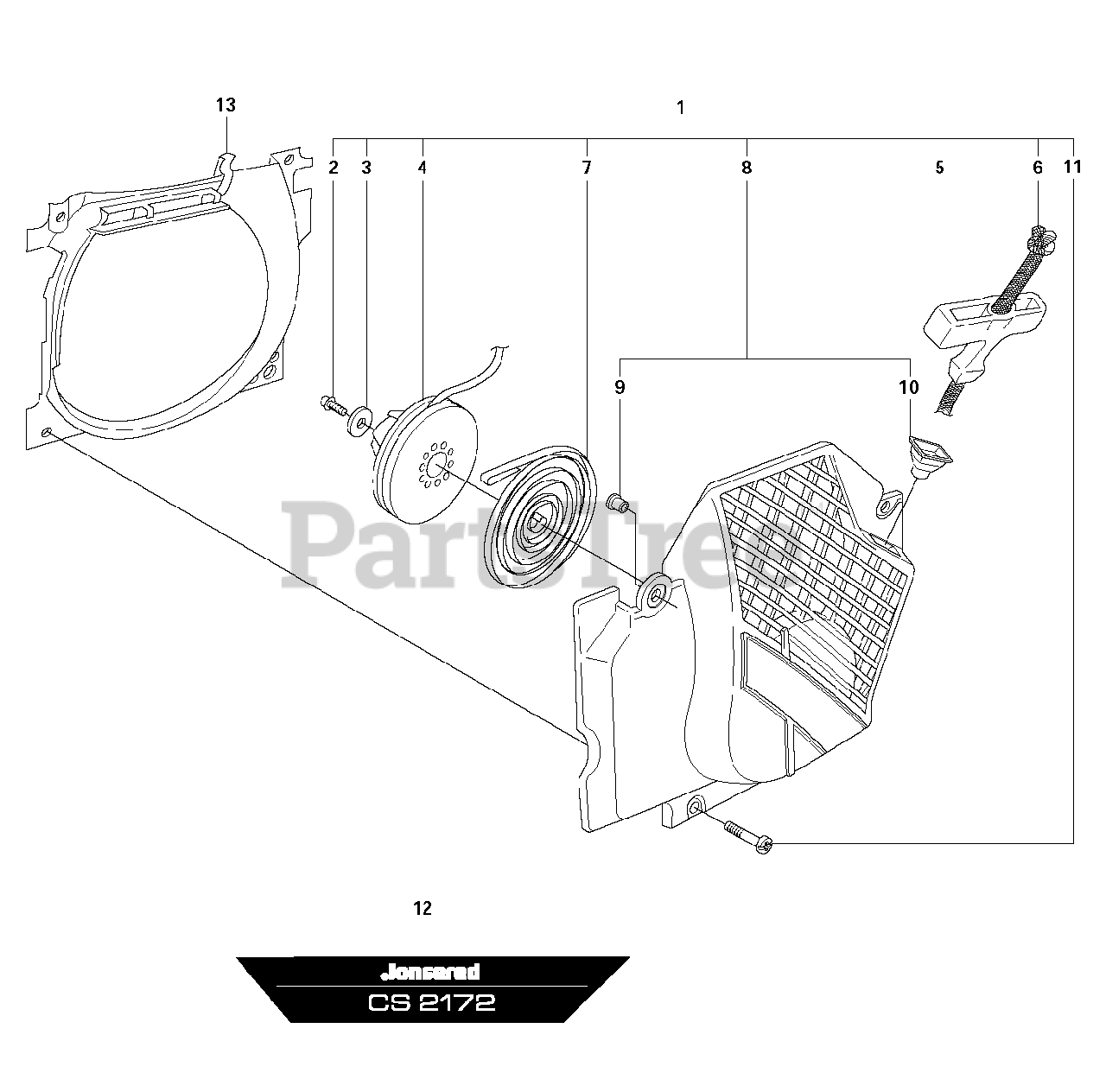

STARTER Parts Diagram

  • Title

1

Jonsered 503692803

STARTER ASSY

$121.99

$

In Stock, only 1 left!

0

2

Jonsered 503214916

SCREW
(Superseded to 503214972)

Note: . 1

$10.99

$

In Stock, Qty 20+

0

3

Jonsered 503234302

WASHER

Note: . 1

$7.49

$

Usually ships in 3-10 days

0

4

Jonsered 503859601

STARTER PULLEY

Note: . 1

$28.99

$

In Stock, only 1 left!

0

5

Jonsered 537196501

STARTER HANDLE

Note: . 1

$21.99

$

Usually ships in 3-10 days

0

6

Jonsered 501201502

STARTER ROPE

Note: . 1

$9.99

$

In Stock, Qty 14

0

7

Jonsered 503787201

SPRING

Note: . 1

$28.99

$

In Stock, only 2 left!

0

8

Jonsered 503692904

STARTER HOUSING

Note: . 1

$43.99

$

In Stock, only 1 left!

0

9

Jonsered 537086701

No Description Available

Note: . 1 8

$6.99

$

In Stock, only 1 left!

0

10

Jonsered 501630601

SLEEVE

Note: . 1 8

$10.99

$

In Stock, only 2 left!

0

11

Jonsered 544080301

SCREW

Note: . 1

$3.99

$

In Stock, only 3 left!

0

12

Jonsered 537145509

LABEL

$8.07

$

Usually ships in 3-10 days

0

12

Jonsered 537145510

LABEL

Note: WH

$8.07

$

Usually ships in 3-10 days

0

13

Jonsered 503628301

AIR CONDUCTOR

$17.99

$

In Stock, only 1 left!

0
