CS 2172 - Jonsered Chainsaw (2010-08) IGNITION SYSTEM Parts Diagram

Chainsaw

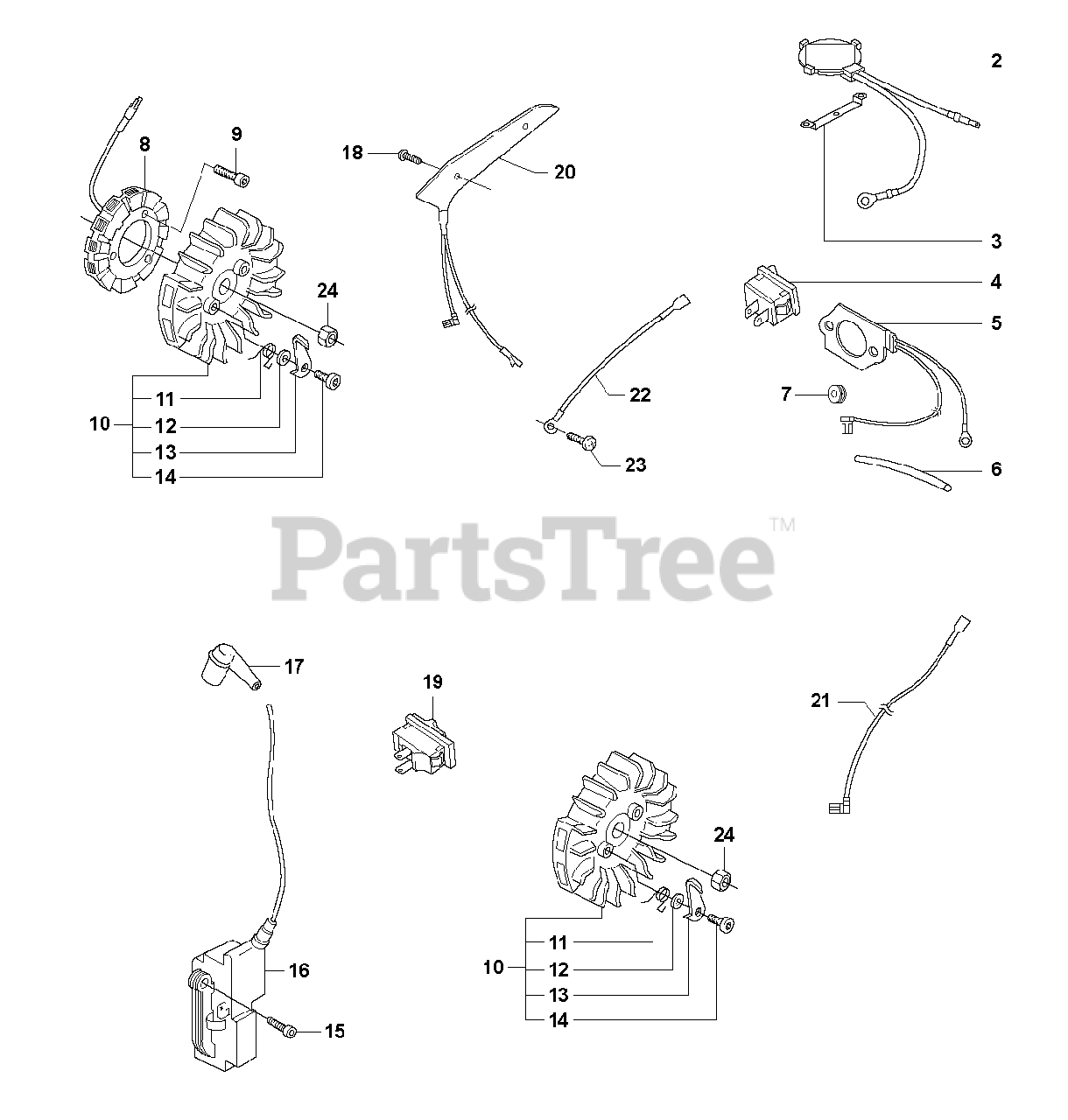

IGNITION SYSTEM Parts Diagram

  • Title

2

Jonsered 537189801

THERMOSTAT

Note: W

$103.99

$

Usually ships in 3-10 days

0

3

Jonsered 537060401

BRACKET

Note: W

$5.76

$

Usually ships in 3-10 days

0

4

Jonsered 503554901

SWITCH

Note: W

$13.99

$

Usually ships in 3-10 days

0

5

Jonsered 537065302

FOIL ELEMENT

Note: W

$120.99

$

Usually ships in 3-10 days

0

6

Jonsered 503238565

TUBE

Note: W

$5.76

$

Usually ships in 3-10 days

0

7

Jonsered 501430001

GROMMET

Note: W

$6.49

$

Usually ships in 3-10 days

0

8

Jonsered 537071802

GENERATOR

Note: W

$125.99

$

Usually ships in 3-10 days

0

9

Jonsered 503202616

SCREW

Note: W

$3.49

$

In Stock, only 2 left!

0

10

Jonsered 537051606

FLYWHEEL

Note: W

$159.99

$

Usually ships in 3-10 days

0

10

Jonsered 537051605

FLYWHEEL

$182.99

$

Usually ships in 3-10 days

0

11

Jonsered 501673501

SPRING

Note: . 10

$7.49

$

In Stock, Qty 12

0

12

Jonsered 503230042

WASHER

Note: . 10

$6.49

$

In Stock, only 2 left!

0

13

Jonsered 537015501

PAWL

Note: . 10

$6.99

$

Usually ships in 3-10 days

0

14

Jonsered 501819901

SCREW M5X14

Note: . 10

$6.49

$

In Stock, Qty 6

0

15

Jonsered 503200220

No Description Available

$6.49

$

In Stock, Qty 18

0

16

Jonsered 522795403

IGNITION MODULE
(Superseded to 586880303)

Note: COT EPA EU

$145.99

$

In Stock, only 1 left!

0

17

Jonsered 501485402

SPARK PLUG CONN. KIT

$13.99

$

In Stock, only 4 left!

0

18

Jonsered 503213801

SCREW

$

$

Not available

19

Jonsered 503718201

START/STOP SWITCH

$13.99

$

In Stock, Qty 9

0

20

Jonsered 503705901

PLATE (G)

Note: W

$54.99

$

Usually ships in 3-10 days

0

21

Jonsered 503626101

WIRE

$9.49

$

Usually ships in 3-10 days

0

22

Jonsered 503897601

CABLE

$5.99

$

In Stock, only 4 left!

0

23

Jonsered 503212810

SCREW

$3.99

$

In Stock, Qty 14

0

24

Jonsered 503220401

NUT W/ WASHER

$7.49

$

In Stock, Qty 8

0
