CS 2172 - Jonsered Chainsaw (2010-08) CHAIN BRAKE Parts Diagram

Chainsaw

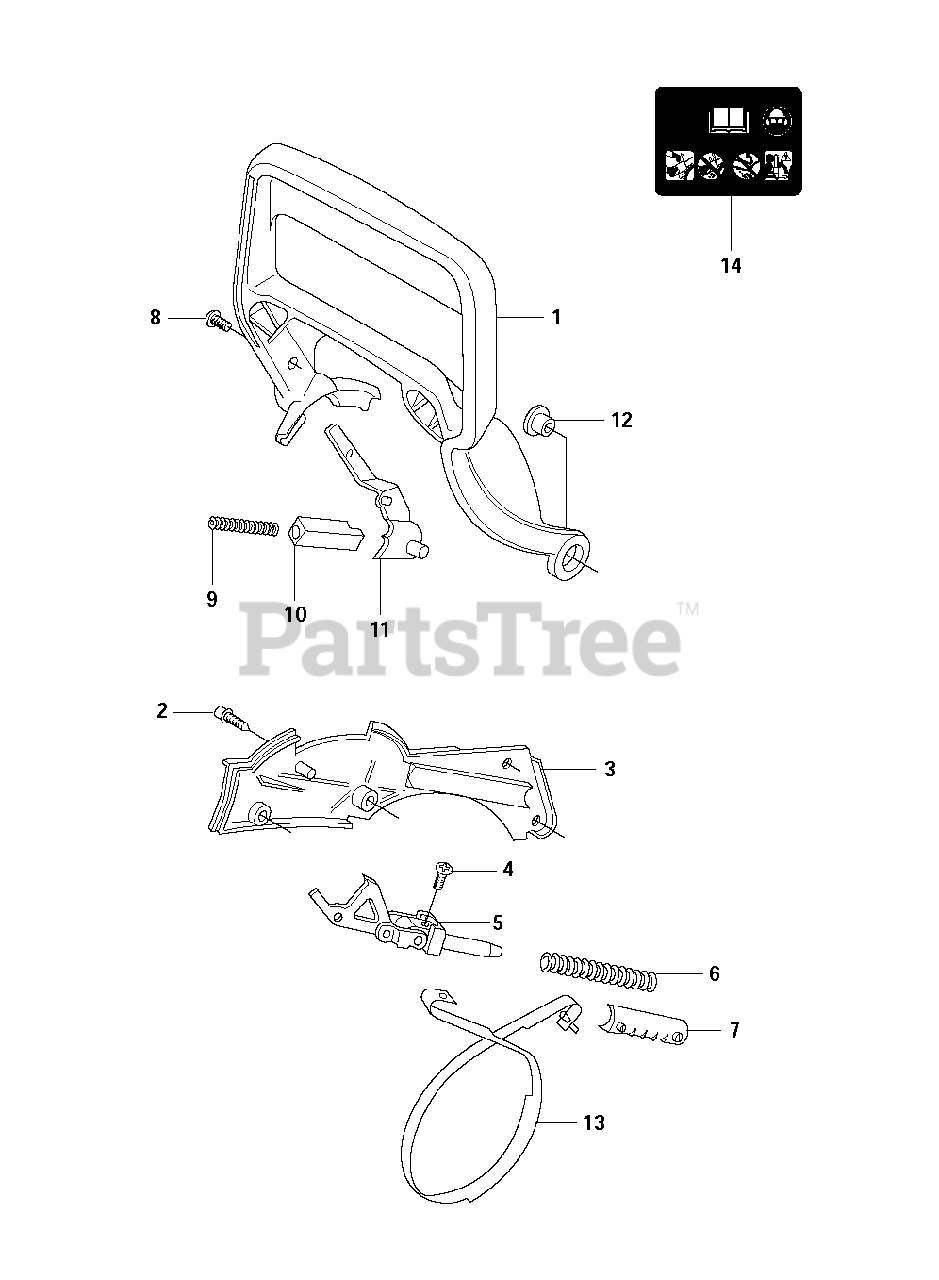

CHAIN BRAKE Parts Diagram

  • Title

1

Jonsered 576255901

HAND GUARD

$39.99

$

In Stock, only 1 left!

0

2

Jonsered 503200712

SCREW

$7.49

$

In Stock, Qty 19

0

3

Jonsered 503751103

COVER

$7.99

$

In Stock, only 4 left!

0

4

Jonsered 503212810

SCREW

$3.99

$

In Stock, Qty 20+

0

5

Jonsered 501875303

KNEE LINK

$26.99

$

In Stock, only 3 left!

0

6

Jonsered 503709901

BRAKE SPRING
(Superseded to 503709902)

$12.99

$

In Stock, only 4 left!

0

7

Jonsered 503792702

SUPPORT

$5.99

$

In Stock, Qty 11

0

8

Jonsered 503202512

SCREW

$5.99

$

In Stock, Qty 18

0

9

Jonsered 503436501

LOCK SPRING

$7.49

$

In Stock, Qty 6

0

10

Jonsered 503838102

CATCH

$6.99

$

In Stock, only 4 left!

0

11

Jonsered 537008701

BRAKE LEVER

$20.99

$

In Stock, only 2 left!

0

12

Jonsered 503775201

BUSHING

$9.49

$

In Stock, Qty 20+

0

13

Jonsered 503752202

BRAKE BAND

$21.99

$

In Stock, only 4 left!

0

14

Jonsered 503987401

DECAL

Note: . 1

$9.99

$

In Stock, only 3 left!

0
