CS 2171 - Jonsered Chainsaw (2011-05) CYLINDER PISTON Parts Diagram

Chainsaw

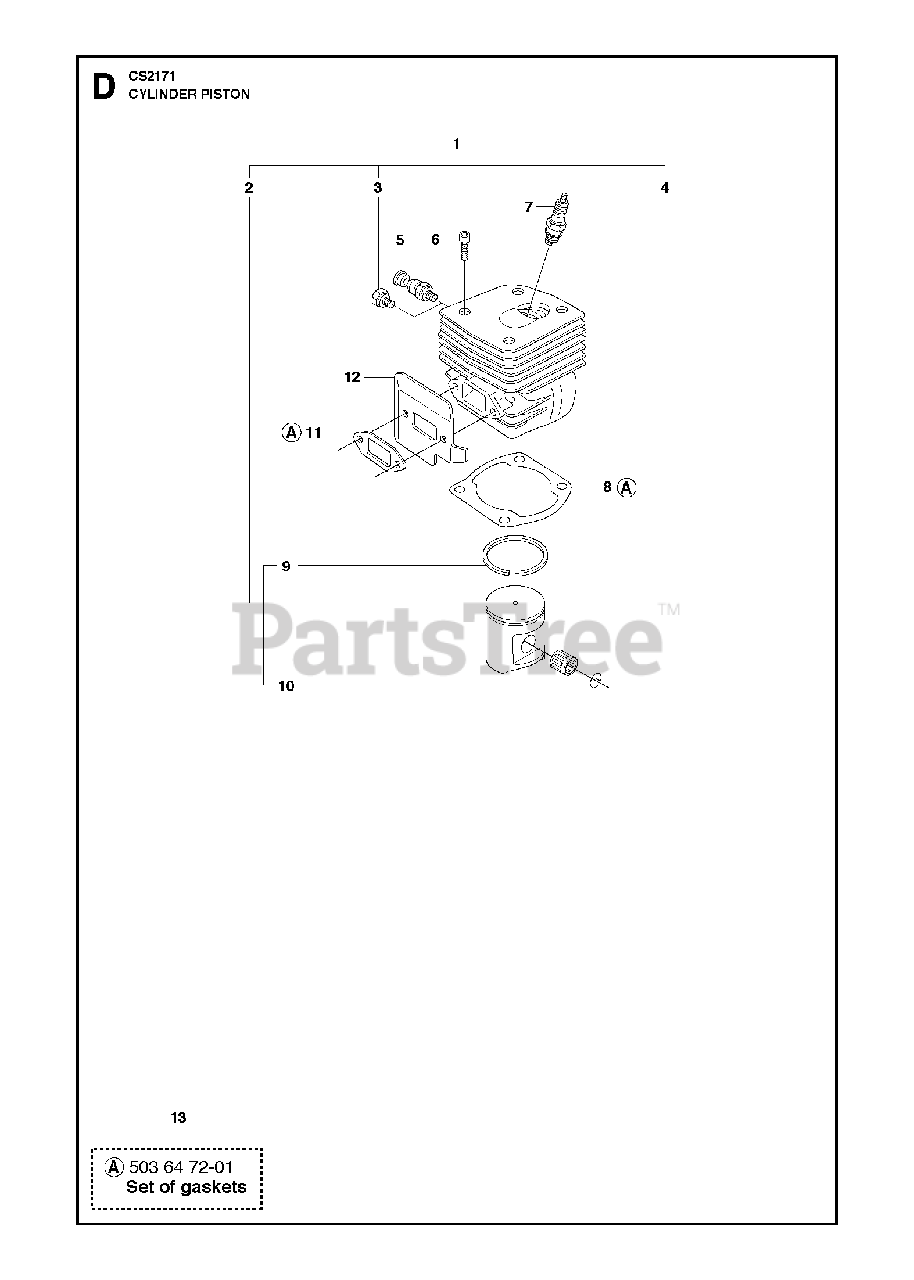

CYLINDER PISTON Parts Diagram

  • Title
1

Jonsered 503626473

%CYLINDER ASSY
(Superseded to 503939372)

$226.99

$

Usually ships in 3-10 days

0

1

Jonsered 503939372

CYLINDER ASSY

Note: EPA

$226.99

$

Usually ships in 3-10 days

0

2

Jonsered 503691271

PISTON ASSY

Note: . 1

$145.99

$

Usually ships in 3-10 days

0

2

Jonsered 503939271

PISTON CPL 50 MM

Note: EPA. 1

$125.99

$

Usually ships in 3-10 days

0

3

Jonsered 503552201

CYLINDER PLUG

Note: . 1

$13.99

$

In Stock, only 2 left!

0

4

Jonsered 503255601

SUPPORT BUSHING
(Superseded to 577572401)

Note: . 1

$21.99

$

In Stock, only 1 left!

0

5

Jonsered 503715301

DECOMPRESSION VALVE

$34.99

$

Usually ships in 3-10 days

0

6

Jonsered 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 19

0

7

Jonsered 503235108

SPARK PLUG RCJ7Y
(Superseded to 952030150)

Note: RCJ 7Y

$3.49

$

In Stock, Qty 20+

0

8

Jonsered 503961501

GASKET

Note: . 13

$9.49

$

In Stock, Qty 5

0

9

Jonsered 503289042

PISTON RING

Note: . 1 2

$17.99

$

Usually ships in 3-10 days

0

9

Jonsered 503289036

RP PISTON RING
(Superseded to 576818401)

Note: EPA. 1 2

$20.99

$

Usually ships in 3-10 days

0

10

Jonsered 737431200

No Description Available

Note: . 1 2

$7.49

$

Usually ships in 3-10 days

0

11

Jonsered 503775901

GASKET

Note: . 13

$9.49

$

In Stock, only 3 left!

0

12

Jonsered 503775802

DEFLECTOR

$6.99

$

In Stock, only 1 left!

0

13

Jonsered 503647201

GASKET SET

Note: A Set of gaskets

$17.99

$

Usually ships in 3-10 days

0
