CS 2166 - Jonsered Chainsaw (2011-03) CYLINDER PISTON Parts Diagram

Chainsaw

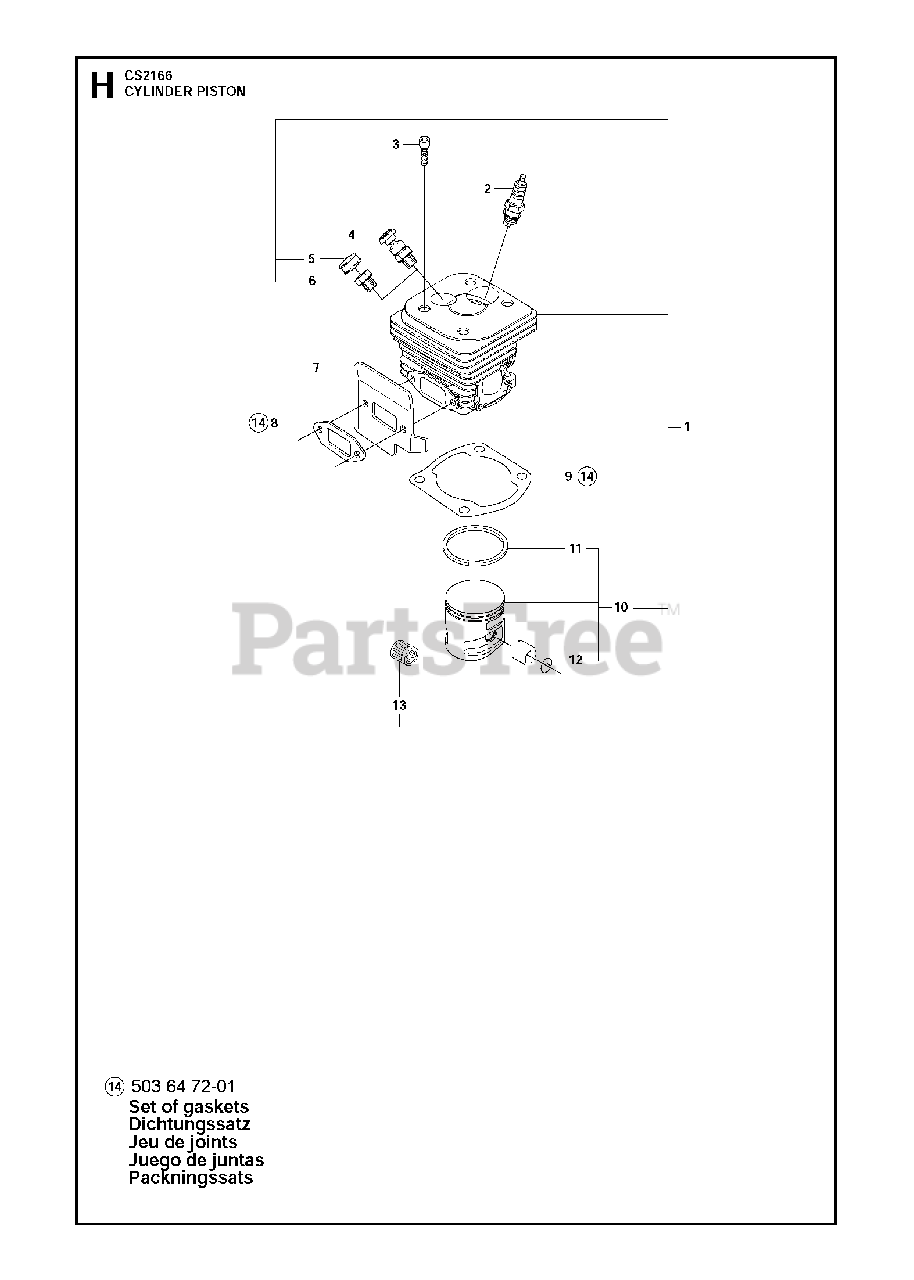

CYLINDER PISTON Parts Diagram

  • Title

1

Jonsered 575774102

CYLINDER ASSY

$241.99

$

Usually ships in 3-10 days

0

2

Jonsered 503235111

BPMR7A NGK SPARK PLUG

Note: NGK BPMR7A

$3.99

$

In Stock, Qty 20+

0

3

Jonsered 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 17

0

4

Jonsered 537294401

VALVE
(Superseded to 584288701)

$66.99

$

In Stock, only 1 left!

0

5

Jonsered 537207101

PLUG

Note: . 1

$9.49

$

Usually ships in 3-10 days

0

6

Jonsered 503552201

CYLINDER PLUG

Note: . 1

$13.99

$

In Stock, only 2 left!

0

7

Jonsered 523049101

DEFLECTOR

$7.99

$

In Stock, only 1 left!

0

8

Jonsered 503775901

GASKET

Note: . 14

$9.49

$

In Stock, only 2 left!

0

9

Jonsered 503961501

GASKET

Note: . 14

$9.49

$

In Stock, Qty 5

0

10

Jonsered 577207702

PISTON ASSY

Note: . 1

$91.99

$

In Stock, only 1 left!

0

11

Jonsered 503289036

RP PISTON RING
(Superseded to 576818401)

Note: . 1 10

$20.99

$

Usually ships in 3-10 days

0

12

Jonsered 737431200

No Description Available

Note: . 1 10

$7.49

$

Usually ships in 3-10 days

0

13

Jonsered 503255601

SUPPORT BUSHING
(Superseded to 577572401)

Note: . 1

$21.99

$

In Stock, only 1 left!

0

14

Jonsered 503647201

GASKET SET

Note: Set of gaskets. 1

$17.99

$

Usually ships in 3-10 days

0
