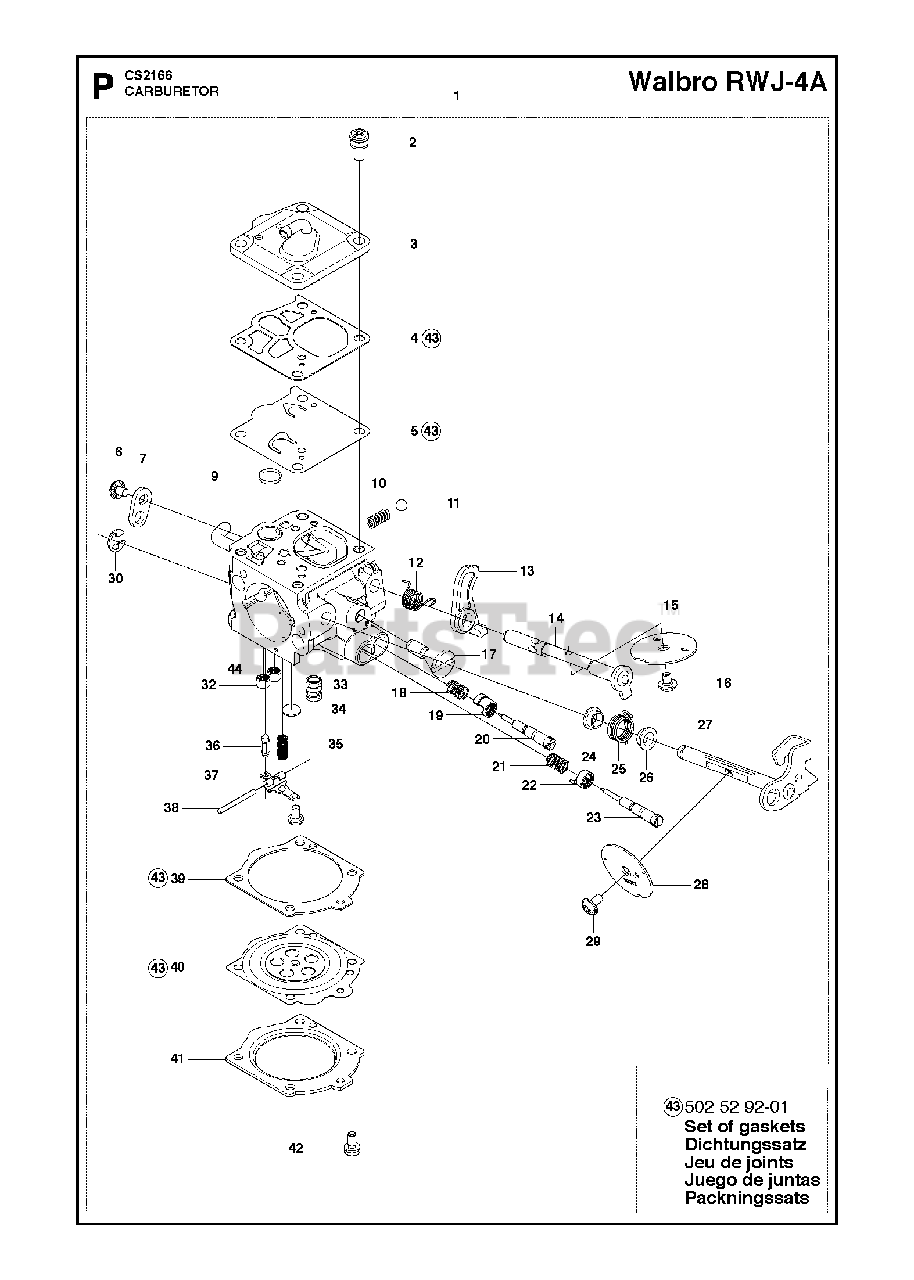

CS 2166 - Jonsered Chainsaw (2011-03) CARBURETOR Parts Diagram

Chainsaw

CARBURETOR Parts Diagram

  • Title
1

Jonsered 577657801

CARBURETOR
(Superseded to 581100701)

Note: Walbro RWJ-4A

$125.99

$

Usually ships in 3-10 days

0

2

Jonsered 503117501

SCREW W/ WASHER

Note: . 1

$9.49

$

Usually ships in 3-10 days

0

3

Jonsered 522923501

PUMP COVER

Note: . 1

$

$

Not available

4

Jonsered 503117201

GASKET

Note: . 1 43

$11.99

$

In Stock, only 1 left!

0

5

Jonsered 544897201

DIAPHRAM PUMP

Note: . 1 43

$26.99

$

In Stock, only 2 left!

0

6

Jonsered 501468701

SCREW.

Note: . 1

$7.99

$

In Stock, only 1 left!

0

7

Jonsered 504790701

LEVER CHOKE

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

9

Jonsered 501666101

FUEL INLET SCREEN

Note: . 1

$14.99

$

In Stock, Qty 5

0

10

Jonsered 503117701

SPRING 394

Note: . 1

$9.49

$

Usually ships in 3-10 days

0

11

Jonsered 503117101

BALL 394

Note: . 1

$11.99

$

Usually ships in 3-10 days

0

12

Jonsered 504791501

SPRING CHOKE

Note: . 1

$20.99

$

In Stock, only 2 left!

0

13

Jonsered 537409201

LEVER

Note: . 1

$7.49

$

In Stock, only 3 left!

0

14

Jonsered 504790501

SHAFT ASSY

Note: . 1

$49.99

$

Usually ships in 3-10 days

0

15

Jonsered 544896801

No Description Available

Note: . 1

$

$

Not available

16

Jonsered 537003401

SCREW
(Superseded to 501468701)

Note: . 1

$7.99

$

In Stock, only 1 left!

0

17

Jonsered 504791101

SCREW

Note: . 1

$43.99

$

Usually ships in 3-10 days

0

18

Jonsered 544971001

SPRING

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

19

Jonsered 544970801

LIMITER CAP

Note: . 1

$8.99

$

In Stock, only 2 left!

0

20

Jonsered 522923901

NEEDLE

Note: . 1

$11.53

$

Usually ships in 3-10 days

0

21

Jonsered 544971001

SPRING

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

22

Jonsered 544970801

LIMITER CAP

Note: . 1

$8.99

$

In Stock, only 2 left!

0

23

Jonsered 544971301

NEEDLE

Note: . 1

$14.99

$

Usually ships in 3-10 days

0

24

Jonsered 502103101

No Description Available

Note: . 1

$11.99

$

Usually ships in 3-10 days

0

25

Jonsered 504791401

%SPRING
(Superseded to 576138201)

Note: . 1

$17.99

$

Usually ships in 3-10 days

0

26

Jonsered 502103101

No Description Available

Note: . 1

$11.99

$

Usually ships in 3-10 days

0

27

Jonsered 522923701

SHAFT ASSY

Note: . 1

$35.76

$

Usually ships in 3-10 days

0

28

Jonsered 522923801

VALVE

Note: . 1

$10.37

$

Usually ships in 3-10 days

0

29

Jonsered 537003401

SCREW
(Superseded to 501468701)

Note: . 1

$7.99

$

In Stock, only 1 left!

0

30

Jonsered 505316736

E CLIP
(Superseded to 502119801)

Note: . 1

$9.49

$

Usually ships in 3-10 days

0

32

Jonsered 522924101

CHECK VALVE

Note: . 1

$92.31

$

Usually ships in 3-10 days

0

33

Jonsered 503786101

NOZZLE ASSY

Note: . 1

$9.49

$

Usually ships in 3-10 days

0

34

Jonsered 504790801

PLUG WELCH

Note: . 1

$7.99

$

In Stock, Qty 8

0

35

Jonsered 504791201

SPRING

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

36

Jonsered 503563401

INLET NEEDLE

Note: . 1

$17.99

$

In Stock, Qty 10

0

37

Jonsered 505316734

LEVER

Note: . 1

$13.99

$

In Stock, Qty 7

0

38

Jonsered 505316731

PIN

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

39

Jonsered 501467501

GASKET

Note: . 1 43

$10.99

$

In Stock, only 3 left!

0

40

Jonsered 503634801

SPRING

Note: . 1 43

$5.76

$

Usually ships in 3-10 days

0

41

Jonsered 505316702

DIAPHRAM COVER

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

42

Jonsered 503108701

SCREW W/ WASHER
(Superseded to 503584601)

Note: . 1

$4.99

$

In Stock, only 4 left!

0

43

Jonsered 502529201

GASKET KIT

Note: Set of gaskets

$31.99

$

Usually ships in 3-10 days

0

44

Jonsered 577699701

No Description Available

Note: . 1

$

$

Not available
