CS 2163 - Jonsered Chainsaw (2005-05) CYLINDER PISTON Parts Diagram

Chainsaw

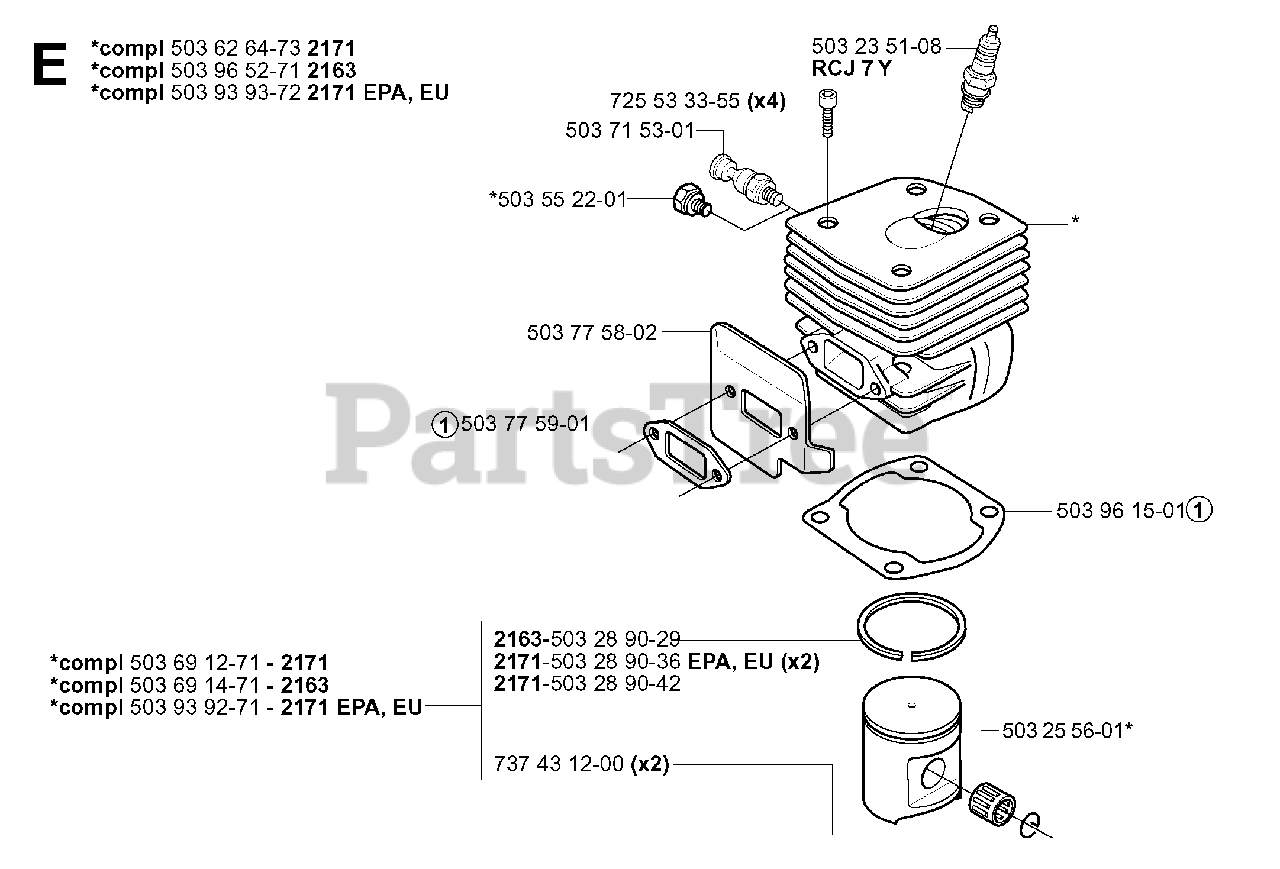

CYLINDER PISTON Parts Diagram

  • Title
5036264-73

Jonsered 503626473

%CYLINDER ASSY
(Superseded to 503939372)

Note: 2171

$226.99

$

Usually ships in 3-10 days

0

5039652-71

Jonsered 503965271

CYLINDER COMPLETE

Note: 2163

$376.99

$

Usually ships in 3-10 days

0

5039393-72

Jonsered 503939372

CYLINDER ASSY

Note: 2171 EPA EU

$226.99

$

Usually ships in 3-10 days

0

5036912-71

Jonsered 503691271

PISTON ASSY

Note: 2171

$145.99

$

Usually ships in 3-10 days

0

5036914-71

Jonsered 503691471

PISTON ASSY

Note: 2163

$148.99

$

Usually ships in 3-10 days

0

5039392-71

Jonsered 503939271

PISTON CPL 50 MM

Note: 2171 EPA EU

$125.99

$

Usually ships in 3-10 days

0

7374312-00

Jonsered 737431200

No Description Available

$7.49

$

Usually ships in 3-10 days

0

5032890-42

Jonsered 503289042

PISTON RING

Note: 2171

$17.99

$

Usually ships in 3-10 days

0

5032890-36

Jonsered 503289036

RP PISTON RING
(Superseded to 576818401)

Note: 2171 EPA EU

$20.99

$

Usually ships in 3-10 days

0

5032890-29

Jonsered 503289029

%PISTON RING
(Superseded to 503289050)

Note: 2163

$40.99

$

In Stock, only 1 left!

0

5037759-01

$9.49

$

In Stock, only 2 left!

0

5037758-02

Jonsered 503775802

DEFLECTOR

$6.99

$

In Stock, only 1 left!

0

5035522-01

Jonsered 503552201

CYLINDER PLUG

$13.99

$

In Stock, only 2 left!

0

5037153-01

Jonsered 503715301

DECOMPRESSION VALVE

$34.99

$

Usually ships in 3-10 days

0

7255333-55

Jonsered 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 17

0

5032351-08

Jonsered 503235108

SPARK PLUG RCJ7Y
(Superseded to 952030150)

Note: RCJ 7 Y

$3.99

$

In Stock, Qty 20+

0

5032556-01

Jonsered 503255601

SUPPORT BUSHING
(Superseded to 577572401)

$21.99

$

In Stock, only 1 left!

0

5039615-01

$9.49

$

In Stock, Qty 5

0
