CS 2159 - Jonsered Chainsaw (2011-05) CLUTCH OIL PUMP Parts Diagram

Chainsaw

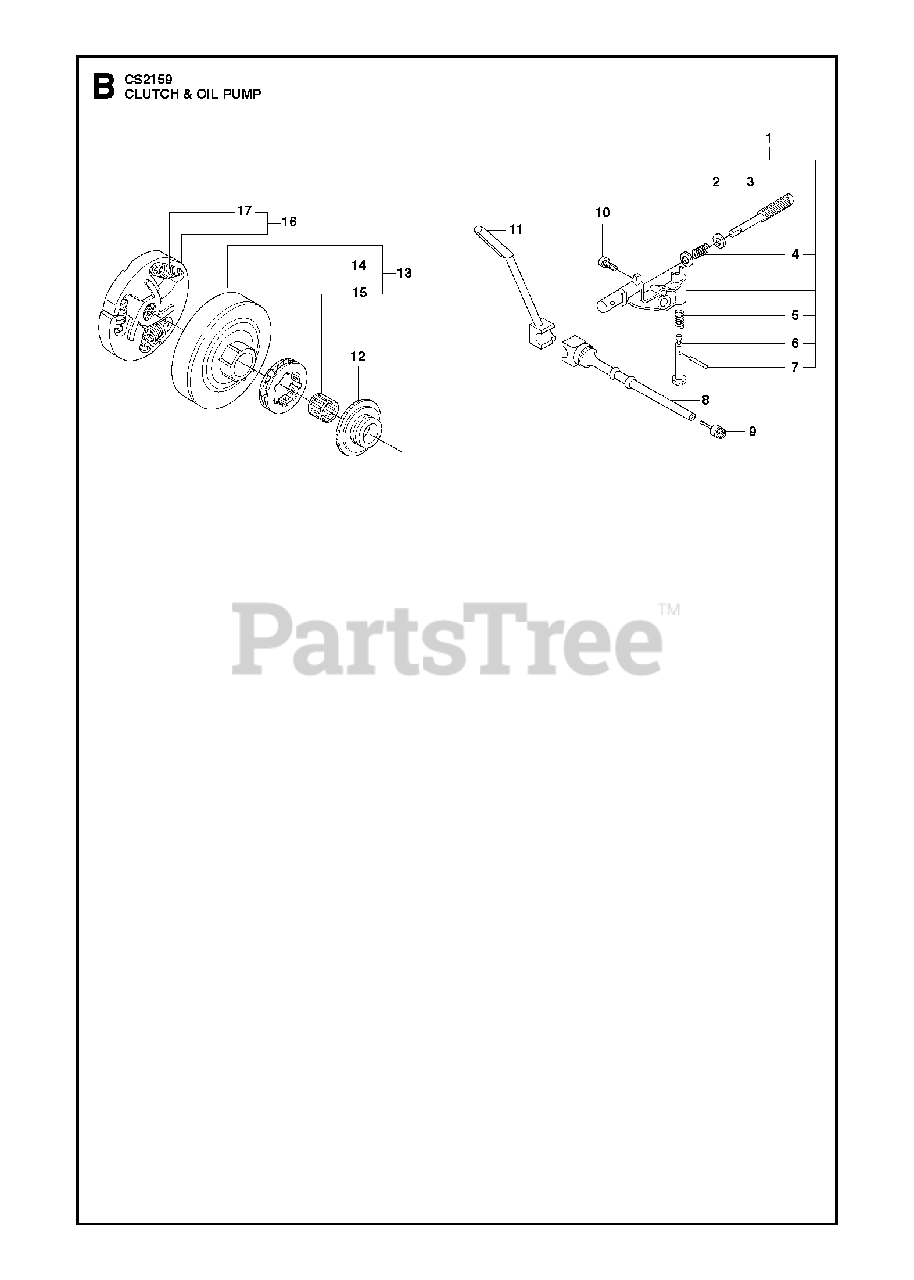

CLUTCH OIL PUMP Parts Diagram

  • Title
1

Jonsered 544180104

OIL PUMP ASSY

$93.99

$

In Stock, only 1 left!

0

2

Jonsered 503230060

WASHER

Note: . 1

$5.99

$

In Stock, only 1 left!

0

3

Jonsered 537069302

PUMP PISTON

Note: . 1

$24.99

$

In Stock, only 1 left!

0

4

Jonsered 503891601

SPRING

Note: . 1

$6.99

$

In Stock, only 3 left!

0

5

Jonsered 503891501

SPRING

Note: . 1

$6.49

$

In Stock, Qty 7

0

6

Jonsered 537027101

SCREW

Note: . 1

$9.99

$

In Stock, only 2 left!

0

7

Jonsered 721116430

PIN

Note: . 1

$4.99

$

In Stock, only 2 left!

0

8

Jonsered 537101101

HOSE
(Superseded to 537101102)

$24.99

$

In Stock, only 1 left!

0

9

Jonsered 503967501

OIL PLUMMET

$11.99

$

Usually ships in 3-10 days

0

$3.49

$

In Stock, Qty 8

0

$13.99

$

Usually ships in 3-10 days

0

12

Jonsered 503912703

PUMP GEAR

Note: 325x7T

$

$

Not available

12

Jonsered 503912903

PUMP GEAR

Note: 3 /8 x7T

$7.99

$

In Stock, only 1 left!

0

13

Jonsered 503980002

CLUTCH DRUM

Note: 325x7T

$66.99

$

Usually ships in 3-10 days

0

13

Jonsered 503934871

CLUTCH DRUM

Note: 3 /8 x7T

$

$

Not available

14

Jonsered 501457402

RIM SPROCKET 7T .325
(Superseded to 640200010)

Note: 325x7T. 13

$8.49

$

In Stock, Qty 11

0

14

Jonsered 501598002

68210 RIMSPROCKET
(Superseded to 640200215)

Note: 3 /8 x7T. 13

$8.49

$

In Stock, Qty 9

0

15

Jonsered 503255201

NEEDLE BEARING

Note: . 13

$27.99

$

Usually ships in 3-10 days

0

16

Jonsered 537103403

CLUTCH
(Superseded to 587691701)

$120.99

$

Usually ships in 3-10 days

0

17

Jonsered 537166901

SPRING

Note: . 16

$7.99

$

In Stock, only 3 left!

0
