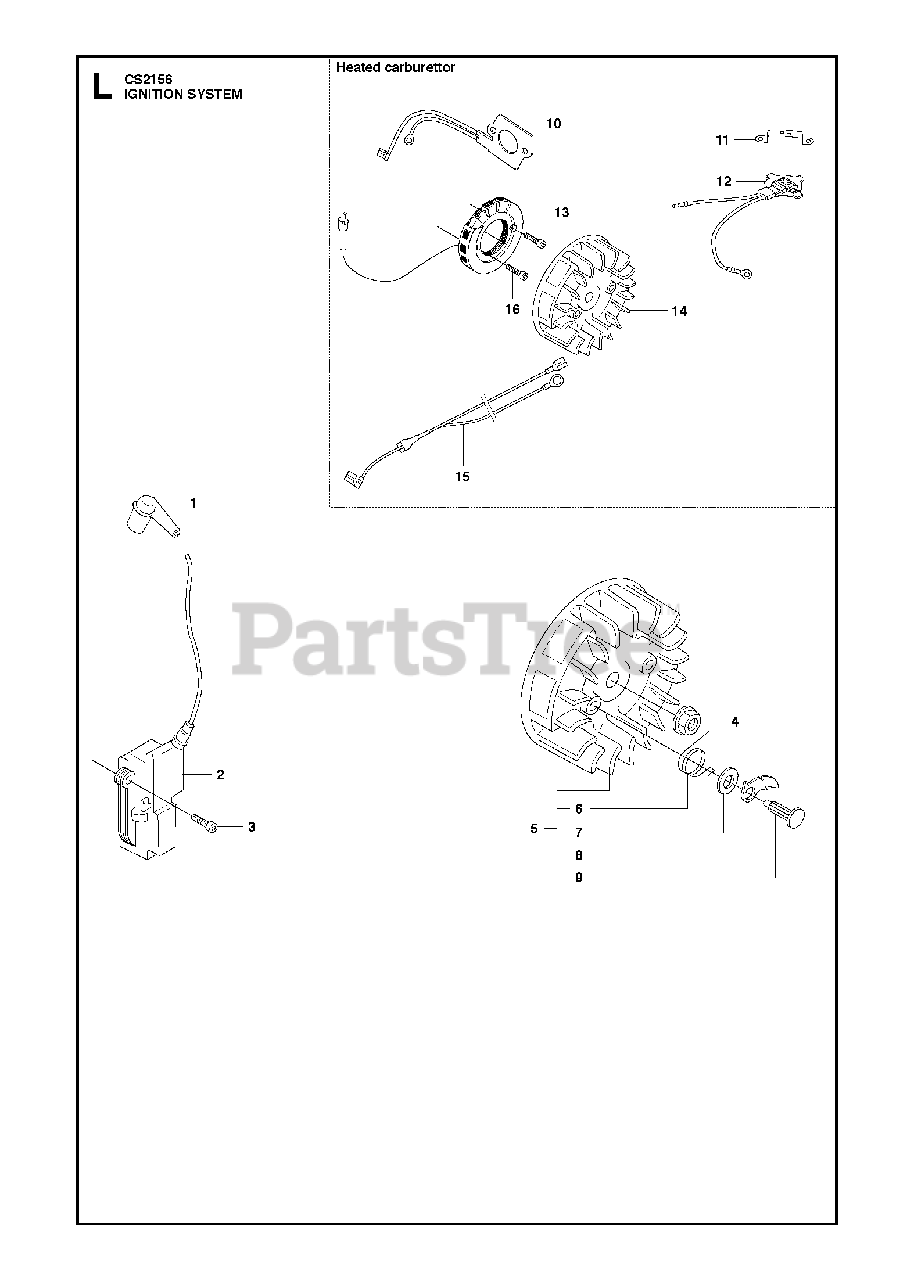

CS 2156 - Jonsered Chainsaw (2010-02) IGNITION SYSTEM Parts Diagram

Chainsaw

IGNITION SYSTEM Parts Diagram

  • Title

1

Jonsered 501485402

SPARK PLUG CONN. KIT

$13.99

$

In Stock, only 3 left!

0

2

Jonsered 544047001

IGNITION MODULE

$121.99

$

In Stock, only 1 left!

0

3

Jonsered 503215525

SCREW

$6.49

$

In Stock, only 2 left!

0

4

Jonsered 503220401

NUT W/ WASHER

$7.49

$

In Stock, Qty 8

0

5

Jonsered 503921801

FLYWHEEL

$249.99

$

Usually ships in 3-10 days

0

6

Jonsered 503818101

SPRING

Note: . 5 14

$4.99

$

In Stock, only 1 left!

0

7

Jonsered 503230042

WASHER

Note: . 5 14

$6.49

$

In Stock, only 2 left!

0

8

Jonsered 537103601

PAWL

Note: . 5 14

$

$

Not available

9

Jonsered 501819903

PIN, STARTER CATCH

Note: . 5 14

$9.99

$

In Stock, only 3 left!

0

10

Jonsered 504043201

HEATING PLATE

Note: WH

$48.46

$

Usually ships in 3-10 days

0

11

Jonsered 537060402

RETAINER

Note: WH

$

$

Not available

12

Jonsered 501986301

THERMOSTAT ASSY

Note: WH

$136.99

$

Usually ships in 3-10 days

0

13

Jonsered 502609601

GENERATOR STATOR

Note: WH

$107.31

$

Usually ships in 3-10 days

0

14

Jonsered 503921803

FLYWHEEL
(Superseded to 503921805)

Note: WH

$278.99

$

Usually ships in 3-10 days

0

15

Jonsered 503898705

WIRING ASSY

Note: WH

$12.68

$

Usually ships in 3-10 days

0

16

Jonsered 503202516

SCREW

Note: WH

$3.49

$

In Stock, only 2 left!

0
