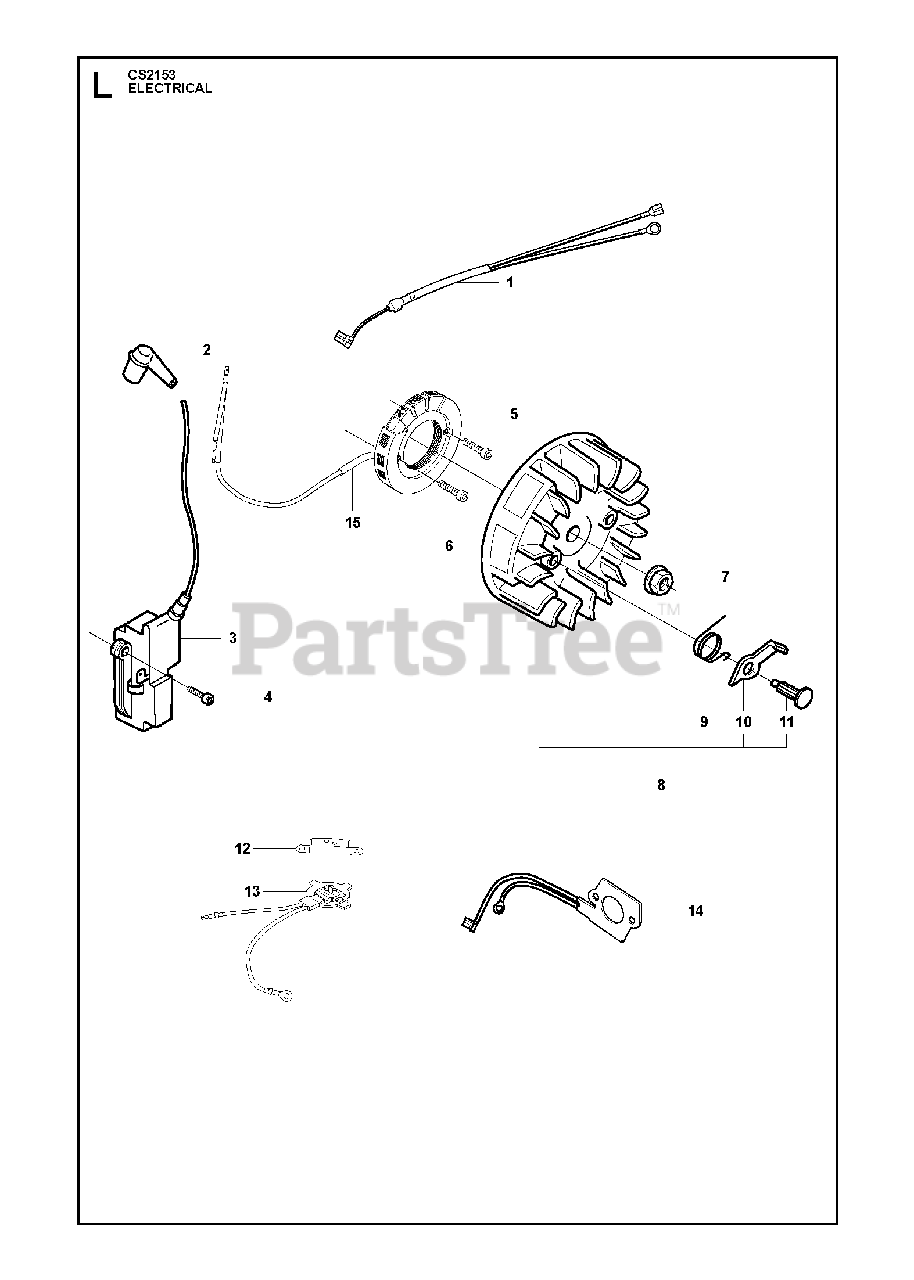

CS 2153 - Jonsered Chainsaw (2011-05) ELECTRICAL Parts Diagram

Chainsaw

ELECTRICAL Parts Diagram

  • Title

1

Jonsered 503898706

WIRING ASSY

Note: WH-version

$13.99

$

Usually ships in 3-10 days

0

1

Jonsered 503898704

WIRING ASSEMBLY

Note: W-version

$13.99

$

Usually ships in 3-10 days

0

2

Jonsered 501485402

SPARK PLUG CONN. KIT

Note: compl. 2

$13.99

$

In Stock, only 4 left!

0

3

Jonsered 501323801

%IGNITION MODULE
(Superseded to 510115501)

$136.99

$

Usually ships in 3-10 days

0

4

Jonsered 503215525

SCREW

$6.49

$

In Stock, only 1 left!

0

5

Jonsered 537330201

GENERATOR

Note: W-version

$159.99

$

Usually ships in 3-10 days

0

5

Jonsered 502609601

GENERATOR STATOR

Note: WH-version

$107.31

$

Usually ships in 3-10 days

0

6

Jonsered 503202516

SCREW

$3.49

$

In Stock, only 2 left!

0

7

Jonsered 503220401

NUT W/ WASHER

$7.49

$

In Stock, Qty 8

0

8

Jonsered 503824301

FLYWHEEL

Note: Std-version

$125.99

$

In Stock, only 1 left!

0

8

Jonsered 503824302

FLYWHEEL (G)

Note: W-version

$261.99

$

Usually ships in 3-10 days

0

8

Jonsered 503824303

FLYWHEEL
(Superseded to 503824305)

Note: WH-version

$

$

Not available

9

Jonsered 503783201

%SPRING, STARTER CATCH
(Superseded to 529271101)

Note: . 8

$7.49

$

Usually ships in 3-10 days

0

10

Jonsered 503895001

PAWL

Note: . 8

$5.99

$

Usually ships in 3-10 days

0

11

Jonsered 503790502

RIVET

Note: . 8

$4.99

$

In Stock, Qty 5

0

12

Jonsered 537060402

RETAINER

Note: WH-version

$

$

Not available

13

Jonsered 501986301

THERMOSTAT ASSY

Note: WH-version

$136.99

$

Usually ships in 3-10 days

0

14

Jonsered 504043201

HEATING PLATE

Note: WH-version

$48.46

$

Usually ships in 3-10 days

0

15

Jonsered 504043501

CABLE COVER

Note: WH-version

$2.49

$

Usually ships in 3-10 days

0
