CS 2152 - Jonsered Chainsaw (2011-05) CYLINDER PISTON Parts Diagram

Chainsaw

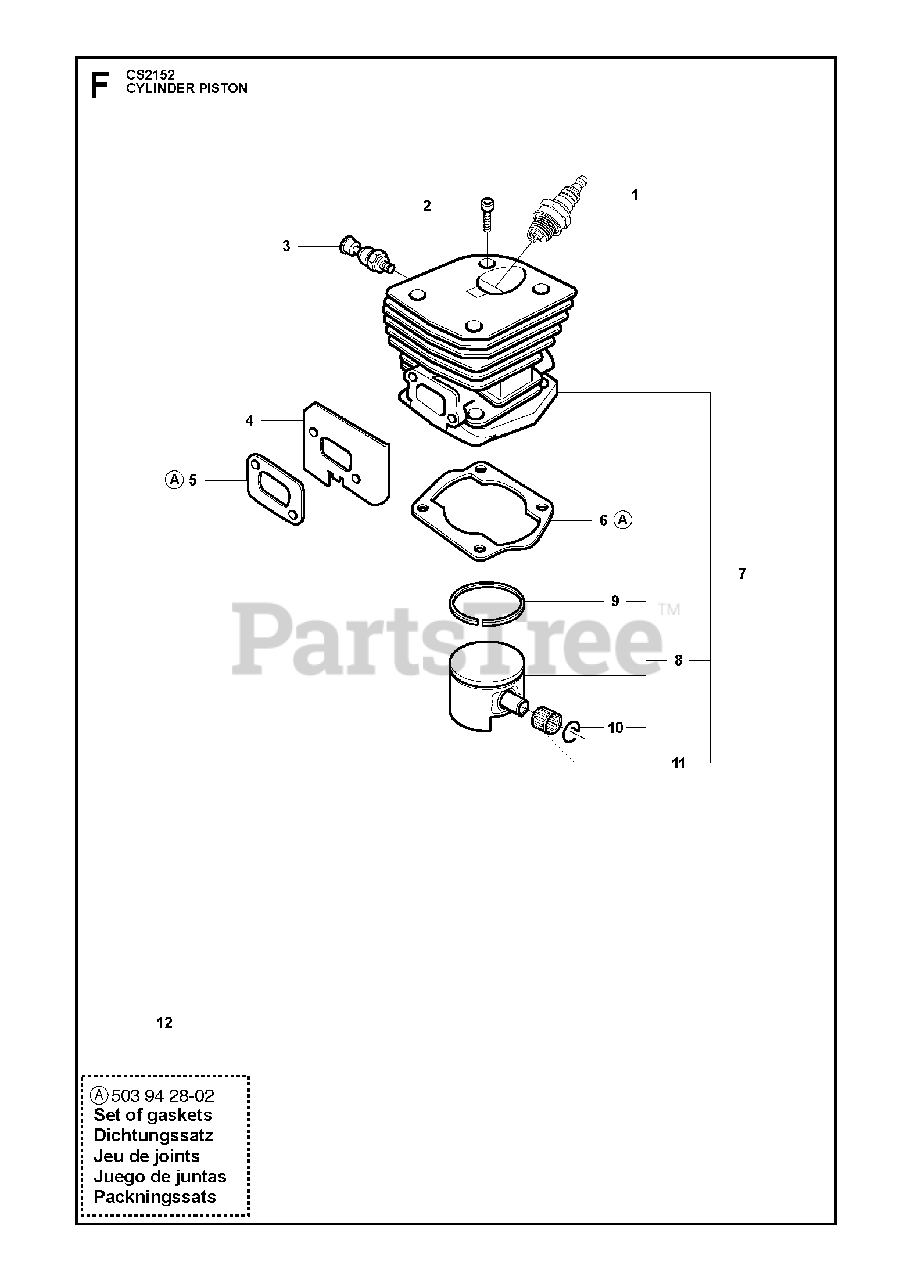

CYLINDER PISTON Parts Diagram

  • Title

1

Jonsered 503235108

SPARK PLUG RCJ7Y
(Superseded to 952030150)

Note: RCJ 7Y

$3.49

$

In Stock, Qty 20+

0

2

Jonsered 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 19

0

3

Jonsered 503665401

DECOMPRESSION VALVE
(Superseded to 544200001)

$66.99

$

In Stock, only 2 left!

0

4

Jonsered 503971301

GUARD

$12.99

$

In Stock, only 1 left!

0

5

Jonsered 503862501

GASKET

Note: . 12

$7.49

$

In Stock, Qty 8

0

6

Jonsered 503894401

GASKET

Note: . 12

$8.99

$

In Stock, only 1 left!

0

7

Jonsered 537253104

CYLINDER ASSY

$227.99

$

Usually ships in 3-10 days

0

8

Jonsered 537223604

PISTON

Note: . 7

$157.99

$

Usually ships in 3-10 days

0

9

Jonsered 503289011

%PISTON RING
(Superseded to 544435001)

Note: . 7 8

$31.99

$

In Stock, only 2 left!

0

10

Jonsered 737441000

LOCKING RING

Note: . 7 8

$6.49

$

Usually ships in 3-10 days

0

11

Jonsered 501451601

RP SUPPORT BUSHING
(Superseded to 503256301)

Note: . 7

$24.99

$

In Stock, only 1 left!

0

12

Jonsered 503942802

GASKET SET

Note: A Set of gaskets

$14.99

$

In Stock, only 1 left!

0
