CS 2152 - Jonsered Chainsaw (2011-05) CLUTCH OIL PUMP Parts Diagram

Chainsaw

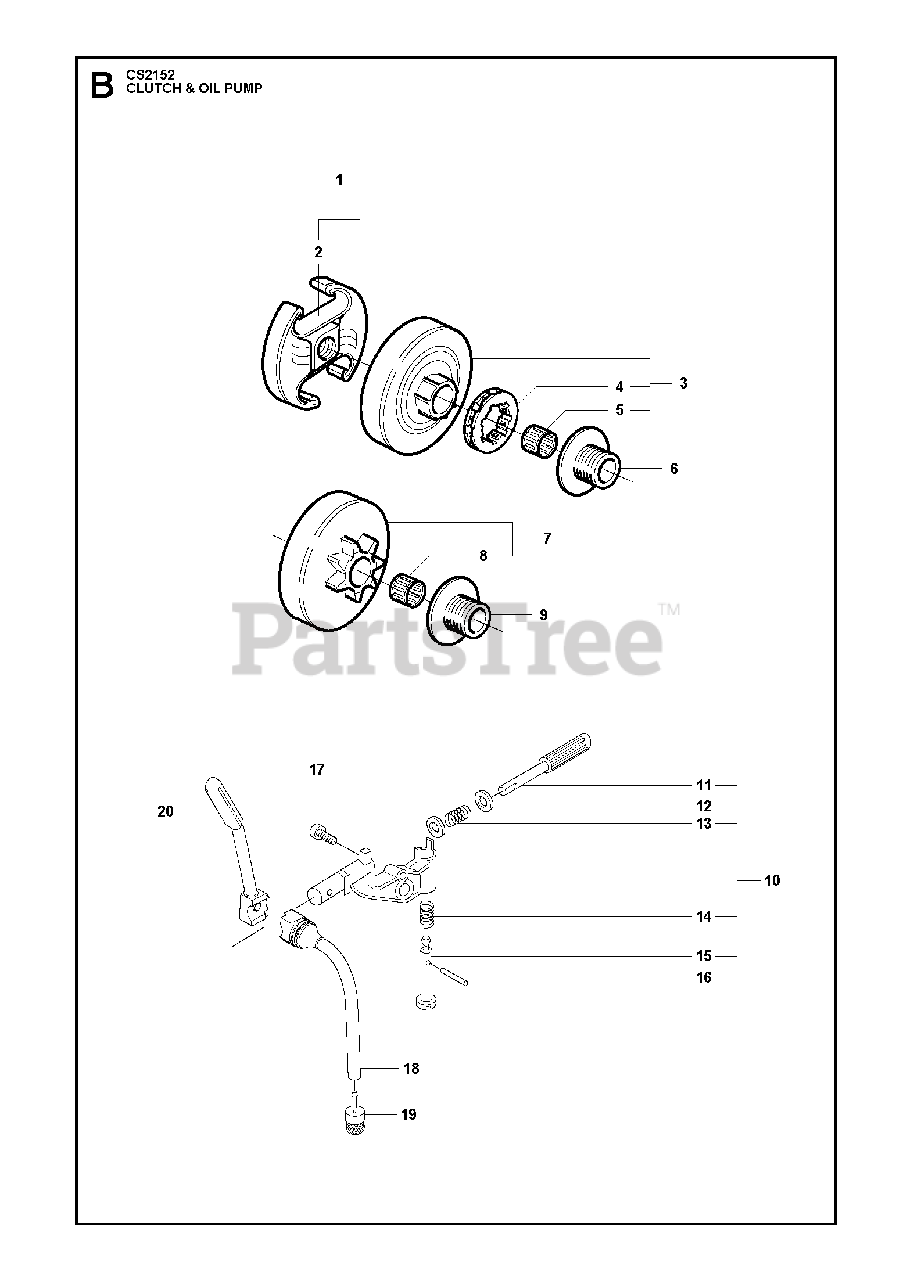

CLUTCH OIL PUMP Parts Diagram

  • Title
1

Jonsered 537110503

CLUTCH

Note: 325x7

$48.99

$

In Stock, only 4 left!

0

2

Jonsered 537080001

SPRING
(Superseded to 537359101)

Note: . 1

$8.99

$

In Stock, Qty 11

0

3

Jonsered 503980002

CLUTCH DRUM

$66.99

$

In Stock, only 1 left!

0

4

Jonsered 501457402

RIM SPROCKET 7T .325
(Superseded to 640200010)

Note: . 3

$8.49

$

In Stock, Qty 6

0

5

Jonsered 503255201

NEEDLE BEARING

Note: . 3

$27.99

$

Usually ships in 3-10 days

0

6

Jonsered 503892103

PUMP PINION

Note: 325x7 RIM

$10.99

$

Usually ships in 3-10 days

0

7

Jonsered 503873073

RP CLUTCH DRUM

Note: 325x7

$44.99

$

In Stock, Qty 20+

0

8

Jonsered 503255201

NEEDLE BEARING

Note: . 7

$27.99

$

Usually ships in 3-10 days

0

9

Jonsered 503892002

PINION

Note: 325x7 SPUR

$10.99

$

Usually ships in 3-10 days

0

10

Jonsered 544180103

OIL PUMP ASSY

$74.99

$

In Stock, only 2 left!

0

11

Jonsered 537069102

PUMP PISTON

Note: . 10

$14.99

$

Usually ships in 3-10 days

0

12

Jonsered 503230060

WASHER

Note: . 10

$5.99

$

In Stock, only 1 left!

0

13

Jonsered 503891601

SPRING

Note: . 10

$6.99

$

In Stock, only 3 left!

0

14

Jonsered 503891501

SPRING

Note: . 10

$6.49

$

In Stock, Qty 7

0

15

Jonsered 537027101

SCREW

Note: . 10

$9.99

$

In Stock, only 2 left!

0

16

Jonsered 721116430

PIN

Note: . 10

$4.99

$

In Stock, only 2 left!

0

$3.49

$

In Stock, Qty 7

0

18

Jonsered 537101101

HOSE
(Superseded to 537101102)

$24.99

$

In Stock, only 2 left!

0

19

Jonsered 504710003

OIL PLUMMET

$11.99

$

Usually ships in 3-10 days

0

20

Jonsered 537413201

OIL PRESSURE HOSE

$17.99

$

Usually ships in 3-10 days

0
