CS 2152 - Jonsered Chainsaw (2004-03) CYLINDER PISTON Parts Diagram

Chainsaw

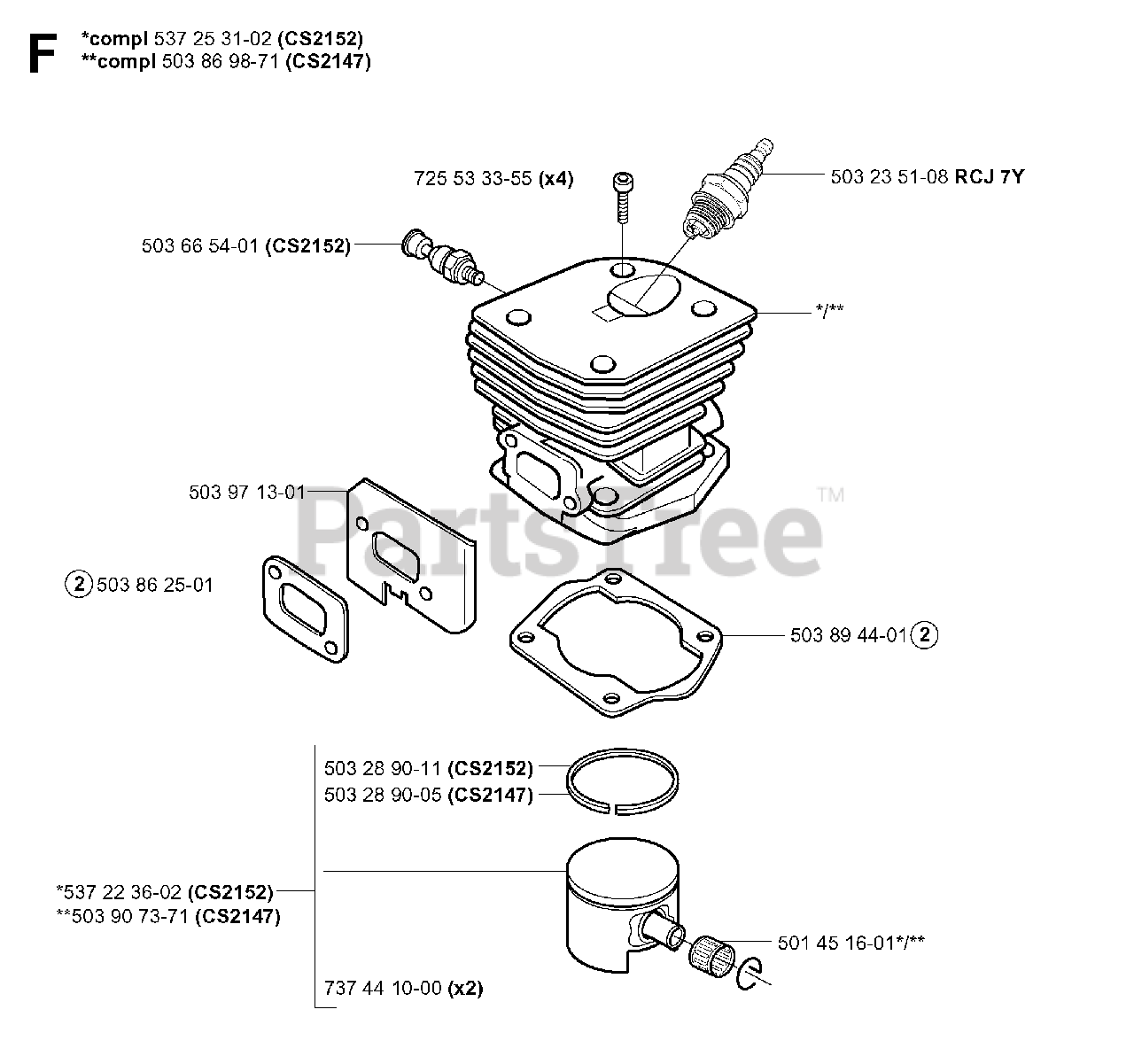

CYLINDER PISTON Parts Diagram

  • Title

5372531-02

Jonsered 537253102

PISTON CYLINDER KIT 353
(Superseded to 537253104)

Note: CS2152

$227.99

$

Usually ships in 3-10 days

0

5038698-71

Jonsered 503869871

CYLINDER

Note: CS2147

$

$

Not available

5036654-01

Jonsered 503665401

DECOMPRESSION VALVE
(Superseded to 544200001)

Note: CS2152

$66.99

$

In Stock, only 2 left!

0

5039713-01

Jonsered 503971301

GUARD

$12.99

$

In Stock, only 1 left!

0

5038625-01

Jonsered 503862501

GASKET

$7.49

$

In Stock, Qty 5

0

5372236-02

Jonsered 537223602

PISTON
(Superseded to 537223604)

Note: CS2152

$157.99

$

Usually ships in 3-10 days

0

5039073-71

Jonsered 503907371

PISTON ASSY

Note: CS2147

$102.99

$

Usually ships in 3-10 days

0

7374410-00

Jonsered 737441000

LOCKING RING

$6.49

$

In Stock, only 1 left!

0

5032890-05

Jonsered 503289005

PISTON RING

Note: CS2147

$31.99

$

In Stock, only 3 left!

0

5032890-11

Jonsered 503289011

%PISTON RING
(Superseded to 544435001)

Note: CS2152

$31.99

$

In Stock, only 2 left!

0

7255333-55

Jonsered 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 17

0

5014516-01

Jonsered 501451601

RP SUPPORT BUSHING
(Superseded to 503256301)

$24.99

$

In Stock, only 1 left!

0

5038944-01

Jonsered 503894401

GASKET

$8.99

$

Usually ships in 3-10 days

0

5032351-08

Jonsered 503235108

SPARK PLUG RCJ7Y
(Superseded to 952030150)

Note: RCJ 7Y

$3.99

$

In Stock, Qty 20+

0
