CS 2147 - Jonsered Chainsaw (2004-03) CARBURETOR DETAILS Parts Diagram

Chainsaw

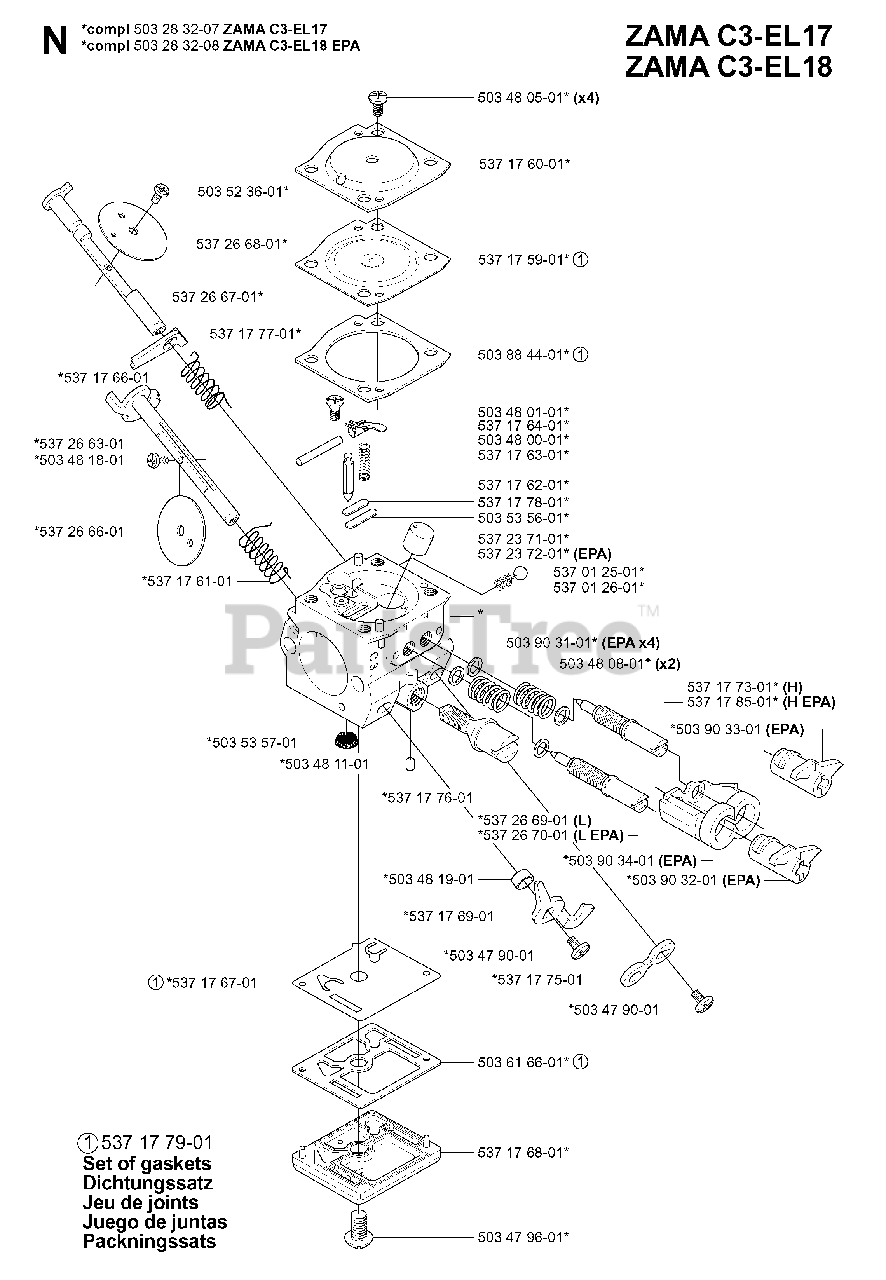

CARBURETOR DETAILS Parts Diagram

  • Title

5032832-07

Jonsered 503283207

CARBURETOR C3-EL17

Note: ZAMA C3-EL17

$125.99

$

In Stock, only 2 left!

0

5032832-08

Jonsered 503283208

CARBURETOR C3-EL18

Note: ZAMA C3-EL18 EPA

$136.99

$

In Stock, Qty 6

0

5035236-01

Jonsered 503523601

SCREW

$3.99

$

Usually ships in 3-10 days

0

5372668-01

Jonsered 537266801

CHOKE FLAP

$6.99

$

Usually ships in 3-10 days

0

5372667-01

Jonsered 537266701

CHOKE SHAFT

$31.99

$

Usually ships in 3-10 days

0

5371777-01

Jonsered 537177701

LEVER
(Superseded to 544056701)

$8.07

$

Usually ships in 3-10 days

0

5371766-01

Jonsered 537176601

SPRING

$6.49

$

Usually ships in 3-10 days

0

5372663-01

Jonsered 537266301

THROTTLE SHAFT

$42.99

$

Usually ships in 3-10 days

0

5034818-01

Jonsered 503481801

SCREW

$3.99

$

Usually ships in 3-10 days

0

5372666-01

Jonsered 537266601

THROTTLE FLAP

$11.99

$

Usually ships in 3-10 days

0

5371761-01

Jonsered 537176101

SPRING

$

$

Not available

5035357-01

Jonsered 503535701

STRAINER

$4.99

$

In Stock, only 2 left!

0

5034811-01

Jonsered 503481101

PLUG

$4.99

$

Usually ships in 3-10 days

0

5371767-01

Jonsered 537176701

DIAPHRAGM
(Superseded to 537380201)

Note: 537 17 79-01 SET OF GASKETS

$24.99

$

In Stock, only 2 left!

0

5034796-01

Jonsered 503479601

SCREW

$6.99

$

In Stock, Qty 5

0

5371768-01

Jonsered 537176801

COVER

$

$

Not available

5036166-01

Jonsered 503616601

GASKET

Note: 537 17 79-01 SET OF GASKETS

$5.49

$

In Stock, Qty 6

0

5034790-01

Jonsered 503479001

SCREW

$3.99

$

In Stock, Qty 8

0

5371775-01

Jonsered 537177501

LEVER

$13.99

$

Usually ships in 3-10 days

0

5034790-01

Jonsered 503479001

SCREW

$3.99

$

In Stock, Qty 8

0

5371769-01

Jonsered 537176901

LEVER

$

$

Not available

5034819-01

Jonsered 503481901

BUSHING *

$6.99

$

In Stock, only 4 left!

0

5371776-01

Jonsered 537177601

IDLE SCREW

$13.99

$

In Stock, only 4 left!

0

5034805-01

Jonsered 503480501

SCREW

$4.99

$

Usually ships in 3-10 days

0

5371760-01

Jonsered 537176001

COVER

$9.49

$

Usually ships in 3-10 days

0

5371759-01

Jonsered 537175901

DIAPHRAGM

Note: 537 17 79-01 SET OF GASKETS

$24.99

$

In Stock, only 3 left!

0

5038844-01

Jonsered 503884401

GASKET

Note: 537 17 79-01 SET OF GASKETS

$

$

Not available

5034801-01

Jonsered 503480101

SCREW

$3.99

$

Usually ships in 3-10 days

0

5371764-01

Jonsered 537176401

LEVER

$9.49

$

In Stock, only 3 left!

0

5034800-01

Jonsered 503480001

PIN FULCRUM
(Superseded to 537020801)

$3.49

$

In Stock, only 1 left!

0

5371763-01

Jonsered 537176301

SPRING

$6.49

$

In Stock, only 1 left!

0

5371762-01

Jonsered 537176201

VALVE

$29.99

$

In Stock, only 1 left!

0

5371778-01

Jonsered 537177801

PLUG

$6.99

$

In Stock, only 2 left!

0

5035356-01

Jonsered 503535601

PLUG

$7.49

$

In Stock, Qty 6

0

5372371-01

Jonsered 537237101

JET

$

$

Not available

5372372-01

Jonsered 537237201

JET
(Superseded to 537416101)

Note: EPA

$28.99

$

Usually ships in 3-10 days

0

5370125-01

Jonsered 537012501

BALL

$4.99

$

In Stock, Qty 6

0

5370126-01

Jonsered 537012601

SPRING

$3.99

$

Usually ships in 3-10 days

0

5039031-01

Jonsered 503903101

WASHER

Note: EPA

$

$

Not available

5034808-01

Jonsered 503480801

SPRING
(Superseded to 503994301)

$3.49

$

Usually ships in 3-10 days

0

5372669-01

Jonsered 537266901

LOW SPEED NEEDLE

Note: L

$28.84

$

Usually ships in 3-10 days

0

5372670-01

Jonsered 537267001

LOW SPEED NEEDLE

Note: L EPA

$30.99

$

Usually ships in 3-10 days

0

5039034-01

Jonsered 503903401

SLEEVE

Note: EPA

$

$

Not available

5039032-01

Jonsered 503903201

LIMITER CAP

Note: EPA

$

$

Not available

5039033-01

Jonsered 503903301

LIMITER CAP

Note: EPA

$5.99

$

Usually ships in 3-10 days

0

5371785-01

Jonsered 537178501

JET

Note: H EPA

$14.99

$

Usually ships in 3-10 days

0

5371773-01

Jonsered 537177301

NEEDLE HIGH SPEED

Note: H

$

$

Not available
