CS 2139 T - Jonsered Chainsaw (2010-03) CARBURETOR Parts Diagram

Chainsaw

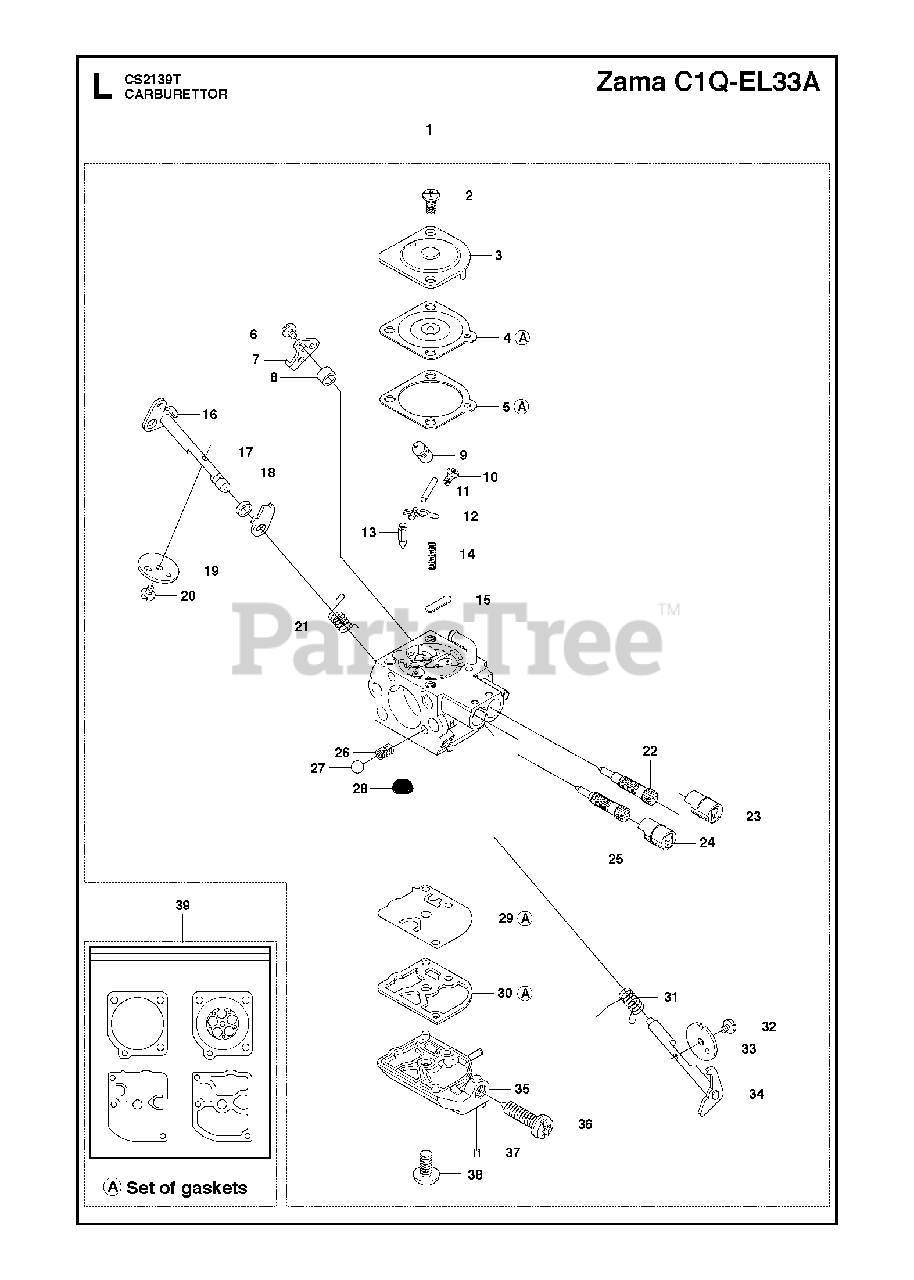

CARBURETOR Parts Diagram

  • Title

1

Jonsered 544160901

CARBURETOR

Note: Zama C1Q-EL33A

$102.99

$

In Stock, only 1 left!

0

2

Jonsered 503480501

SCREW

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

3

Jonsered 503974301

COVER

Note: . 1

$6.99

$

In Stock, only 1 left!

0

4

Jonsered 537048901

DIAPHRAGM

Note: . 1 39

$13.99

$

In Stock, Qty 18

0

5

Jonsered 537020401

GASKET

Note: . 1 39

$4.99

$

In Stock, Qty 9

0

6

Jonsered 503479001

SCREW

Note: . 1

$3.99

$

In Stock, Qty 8

0

7

Jonsered 537274101

ARM

Note: . 1

$5.58

$

Usually ships in 3-10 days

0

8

Jonsered 503478901

SPACER

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

9

Jonsered 537413501

NOZZLE

Note: . 1

$14.99

$

Usually ships in 3-10 days

0

10

Jonsered 503480101

SCREW

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

11

Jonsered 503480001

PIN FULCRUM
(Superseded to 537020801)

Note: . 1

$3.49

$

In Stock, only 1 left!

0

12

Jonsered 503665901

LEVER

Note: . 1

$4.99

$

In Stock, only 2 left!

0

13

Jonsered 503479701

INLET NEEDLE

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

14

Jonsered 537273401

SPRING

Note: . 1

$

$

Not available

15

Jonsered 503535601

PLUG

Note: . 1

$7.49

$

In Stock, Qty 6

0

16

Jonsered 537273801

SHAFT

Note: . 1

$

$

Not available

17

Jonsered 537274401

WASHER

Note: . 1

$

$

Not available

18

Jonsered 537274301

ARM

Note: . 1

$

$

Not available

19

Jonsered 537266801

CHOKE FLAP

Note: . 1

$5.99

$

Usually ships in 3-10 days

0

20

Jonsered 503481801

SCREW

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

21

Jonsered 537134901

SPRING

Note: . 1

$3.49

$

Usually ships in 3-10 days

0

22

Jonsered 537416901

IDLE SCREW

Note: L. 1

$15.99

$

Usually ships in 3-10 days

0

23

Jonsered 537417001

LIMITER CAP KIT

Note: . 1

$7.49

$

Usually ships in 3-10 days

0

24

Jonsered 537417001

LIMITER CAP KIT

Note: . 1

$7.49

$

Usually ships in 3-10 days

0

25

Jonsered 537387501

SCREW

Note: H. 1

$13.41

$

Usually ships in 3-10 days

0

26

Jonsered 537012601

SPRING

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

27

Jonsered 537012501

BALL

Note: . 1

$3.99

$

In Stock, Qty 6

0

28

Jonsered 503535701

STRAINER

Note: . 1

$4.99

$

In Stock, only 2 left!

0

29

Jonsered 537020001

PUMP DIAPHRAGM

Note: . 1 39

$9.49

$

In Stock, Qty 5

0

30

Jonsered 537020101

GASKET

Note: . 1 39

$4.99

$

In Stock, Qty 13

0

31

Jonsered 537019701

SPRING THROTTLE

Note: . 1

$3.49

$

In Stock, only 1 left!

0

32

Jonsered 503481801

SCREW

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

33

Jonsered 537388301

THROTTLE FLAP

Note: . 1

$6.91

$

Usually ships in 3-10 days

0

34

Jonsered 544119001

SHAFT

Note: . 1

$19.61

$

Usually ships in 3-10 days

0

35

Jonsered 537273301

COVER

Note: . 1

$33.45

$

Usually ships in 3-10 days

0

36

Jonsered 537273701

SCREW

Note: . 1

$13.84

$

Usually ships in 3-10 days

0

37

Jonsered 503481101

PLUG

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

38

Jonsered 503479601

SCREW

Note: . 1

$3.99

$

In Stock, Qty 5

0

39

Jonsered 531004552

GASKET KIT (ZAMA GND39)

Note: A Set of gaskets

$11.99

$

Usually ships in 3-10 days

0
