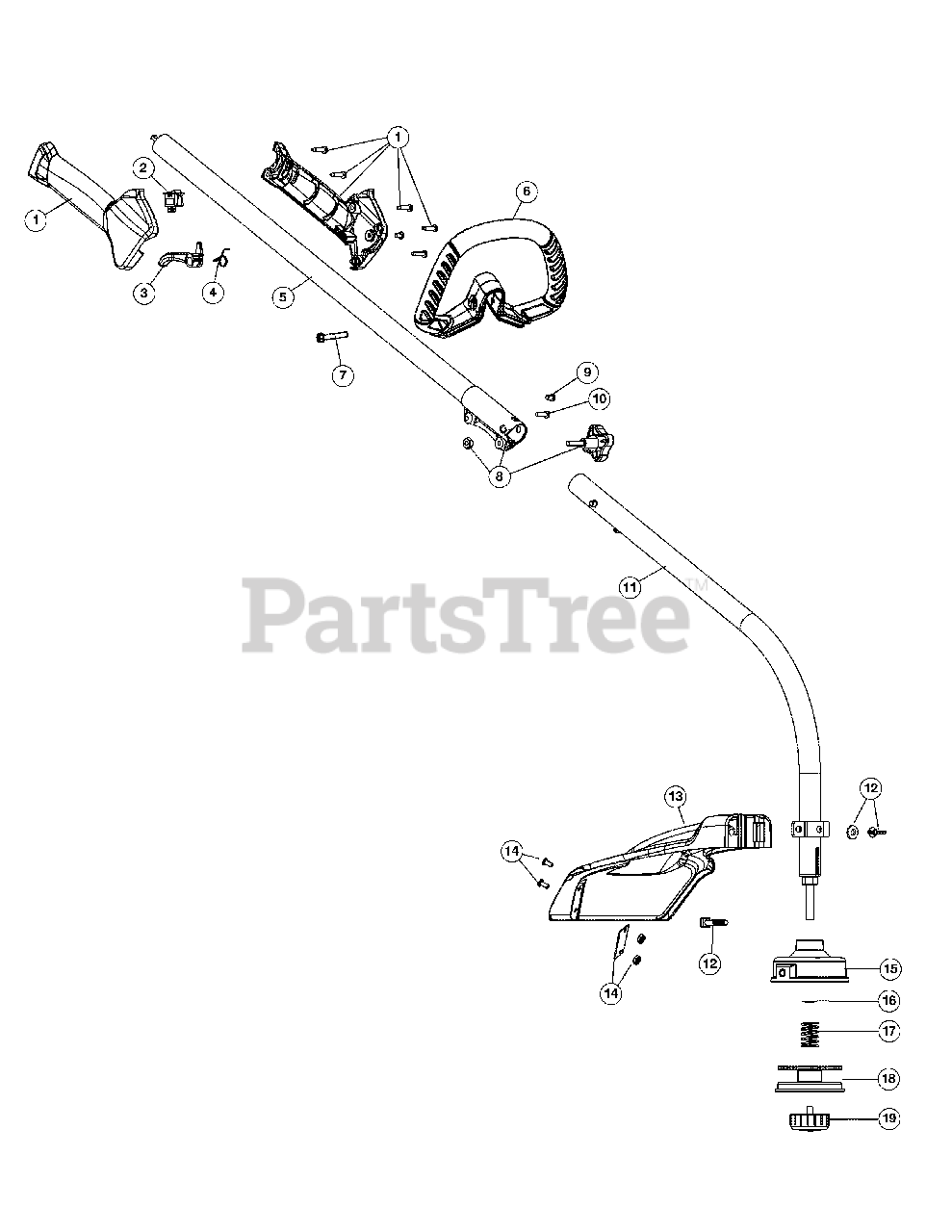

CS 202 (41ADZ20C912) - Cub Cadet String Trimmer (2013) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

Cub Cadet 753-06917

Throttle Housing Assembly (Incl. 2-4)

$5.99

$

In Stock, only 4 left!

0

2

Cub Cadet 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

3

Cub Cadet 753-06918

Throttle Trigger

$3.49

$

In Stock, Qty 5

0

4

Cub Cadet 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

5

Cub Cadet 753-06682

Upper Shaft Housing Assembly

$18.99

$

In Stock, only 3 left!

0

6

Cub Cadet 753-06039

D-Handle (Incl. 7)

$11.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 791-06040

D-Handle Hardware Assembly
(Superseded to 753-06040)

$6.99

$

In Stock, only 1 left!

0

8

Cub Cadet 753-06585

Split Boom Coupler (Incl. 9-10)

$9.49

$

In Stock, only 4 left!

0

9

Cub Cadet 791-182057

Anti-Rotation Screw

$4.49

$

In Stock, only 3 left!

0

10

Cub Cadet 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

11

Cub Cadet 753-06591

Lower Shaft Housing Assembly

$24.99

$

In Stock, only 4 left!

0

12

Cub Cadet 753-04282

Shield Mounting Hardware

$25.99

$

In Stock, only 1 left!

0

13

Cub Cadet 753-04283

Shield Assembly (Incl. 14)

$50.99

$

In Stock, only 1 left!

0

14

Cub Cadet 791-180553

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

15

Cub Cadet 753-04284

Outer Spool Assembly (Incl. 16)

$28.99

$

In Stock, only 2 left!

0

16

Cub Cadet 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 791-610317B

Spring

$10.99

$

In Stock, only 2 left!

0

18

Cub Cadet 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

19

Cub Cadet 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 18

0

Cub Cadet 953-1156

Reel & Line Assembly

Note: Not shown

$31.99

$

In Stock, only 1 left!

0

Cub Cadet 753-05778

Fixed Line Insert

Note: Not shown

$7.99

$

Usually ships in 3-6 days

0
