CS 202 (41ADZ20C912) - Cub Cadet String Trimmer (2013) Engine Assembly Parts Diagram

String Trimmer

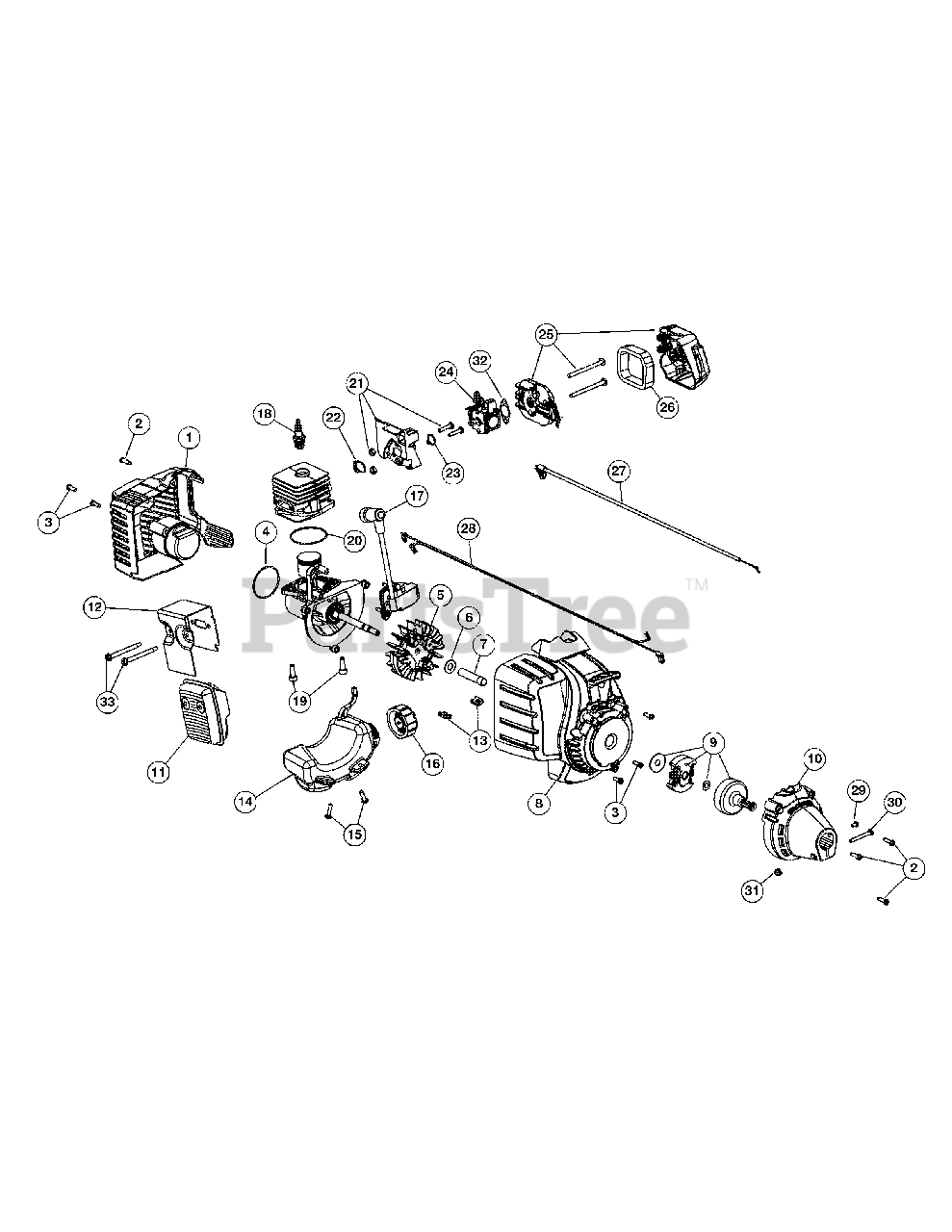

Engine Assembly Parts Diagram

  • Title
1

Cub Cadet 753-06919

Rear Cover Assembly (Incl. 2 & 3)

$4.99

$

In Stock, only 2 left!

0

2

Cub Cadet 791-181345

Cover Screw

$4.49

$

In Stock, only 4 left!

0

3

Cub Cadet 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

$2.99

$

In Stock, Qty 20+

0

5

Cub Cadet 753-06175

Flywheel Assembly

$19.99

$

In Stock, only 2 left!

0

$3.49

$

In Stock, only 1 left!

0

$2.99

$

In Stock, only 1 left!

0

8

Cub Cadet 753-06920

Starter Housing (Incl. 3 & 13)

$

$

Not available

9

Cub Cadet 753-05860

Clutch Assembly

$25.99

$

In Stock, Qty 10

0

10

Cub Cadet 753-06181

Clutch Cover (Incl. 2)

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 753-06418

Muffler Assembly (Incl. 12 & 33)
(Superseded to 753-08745)

$26.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 753-06419

Muffler Gasket

$5.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 791-182366

U-shaped Nut

$5.99

$

In Stock, only 1 left!

0

14

Cub Cadet 753-06921

Fuel Tank Assembly (Incl. 15 & 16)
(Superseded to 753-06183)

$13.99

$

In Stock, Qty 20+

0

15

$6.99

$

In Stock, only 1 left!

0

16

$20.99

$

In Stock, Qty 10

0

17

Cub Cadet 753-06763

Module Assembly

$27.99

$

In Stock, only 3 left!

0

18

Cub Cadet 753-06193

Spark Plug
(Superseded to 753-06847)

$7.49

$

In Stock, Qty 20+

0

19

Cub Cadet 791-182723

Crankcase Bolt

$4.49

$

In Stock, Qty 13

0

20

Cub Cadet 753-06275

Crankcase O-Ring

$2.99

$

In Stock, Qty 13

0

21

Cub Cadet 753-06189

Insulator Assembly (Incl. 22 & 23)

$7.99

$

In Stock, only 1 left!

0

22

Cub Cadet 753-06184

Insulator O-Ring

$3.49

$

In Stock, only 1 left!

0

23

Cub Cadet 753-06185

Carburetor O-Ring

$3.49

$

In Stock, Qty 20+

0

24

Cub Cadet 753-06190

Carburetor

$35.99

$

In Stock, Qty 20+

0

25

Cub Cadet 753-06415

Aircleaner Cover Assembly (Incl. 26)

$10.99

$

In Stock, only 3 left!

0

26

Cub Cadet 753-06417

Aircleaner Filter

$2.99

$

In Stock, Qty 20+

0

27

Cub Cadet 753-06188

Throttle Cable

$7.99

$

In Stock, Qty 6

0

28

Cub Cadet 753-06187

Lead Wires

$

$

Not available

29

Cub Cadet 791-182519

Anti-rotation Screw

$4.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 753-04003

Clamp Screw
(Superseded to 9689A)

$11.99

$

In Stock, only 1 left!

0

31

Cub Cadet 712-0161

Clamp Nut

$4.49

$

In Stock, only 1 left!

0

32

Cub Cadet 753-06253

Air Cleaner Gasket

$3.49

$

In Stock, Qty 20+

0

33

Cub Cadet 753-06294

Muffler Screw

$2.99

$

Usually ships in 3-6 days

0

Cub Cadet 753-06922

Short Block Assembly (Incl. 4-7 & 17-20)

Note: Not shown

$88.99

$

In Stock, only 1 left!

0
