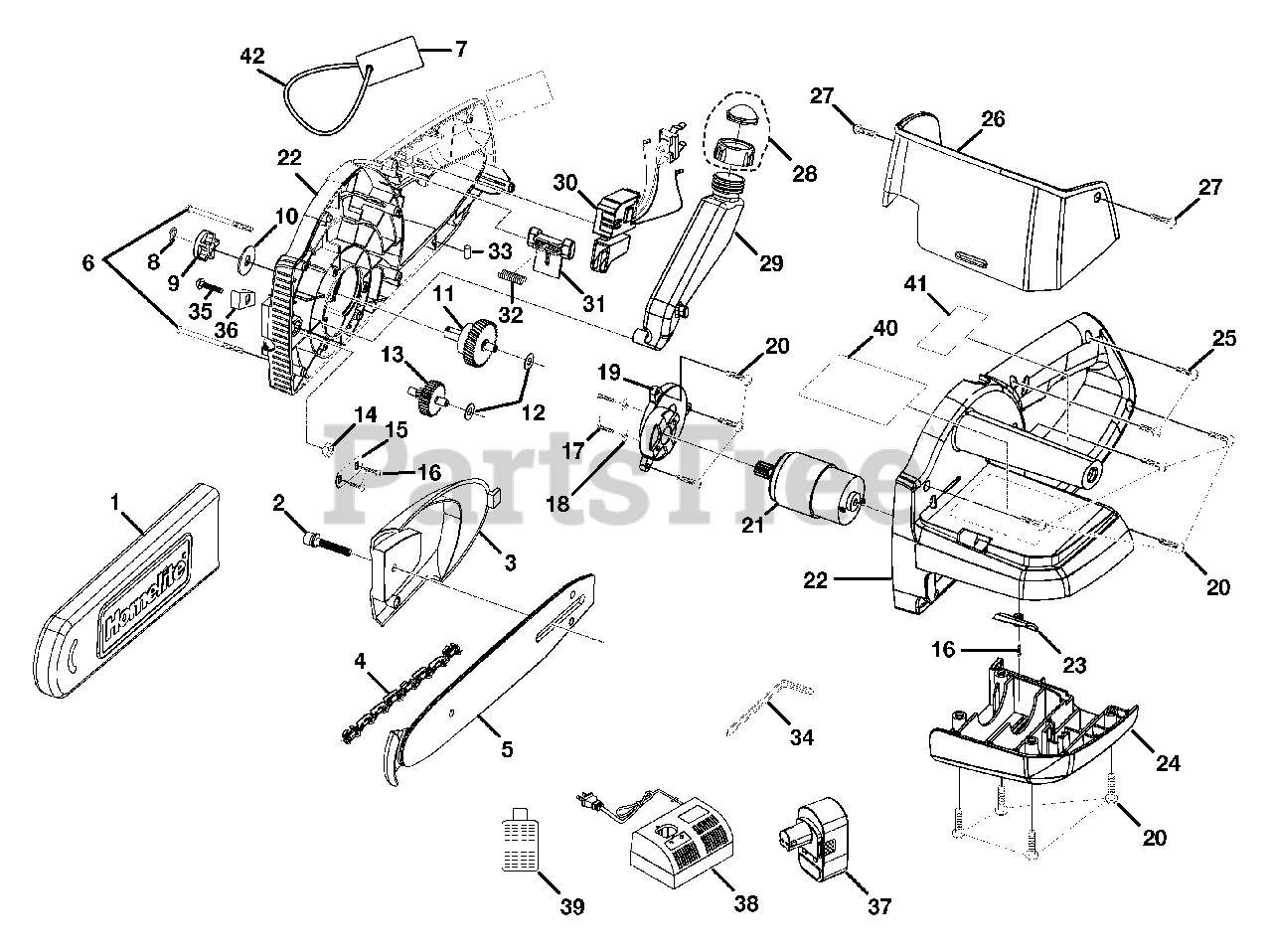

CS 1800 - Ryobi 18V Chainsaw Cordless Chain Saw Parts Diagram

18V Chainsaw

Cordless Chain Saw Parts Diagram

  • Title

1

Homelite 580363002

GUARD

$

$

Currently unavailable

2

Homelite 6605802

SCREW (SOCKET HEAD)

$

$

Not available

3

Homelite 200193002

SPROCKET GUARD

$

$

Currently unavailable

4

Homelite 6958301

CHAIN, (90JG-040)
(Superseded to PS03873)

$

$

Not available

Homelite 690583002

CHAIN / CARLTON

$

$

Not available

5

Homelite 671256002

CHAIN BAR (10 in.)

$

$

Currently unavailable

Homelite 671667002

CHAIN BAR / MERCURY

$32.00

$

Usually ships in 3-7 days

0

6

Homelite 6623704

SCREW (M4 X 66 mm)

Note: Purchase Locally

$0.99

$

Usually ships in 3-7 days

0

7

Homelite 940230067

WARNING LABEL (ON HANDLE)

$

$

Currently unavailable

8

Homelite 6760802

C-RING

$

$

Not available

9

Homelite 6132301

SPROCKET

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 6973301

COVER PLATE

$

$

Not available

11

Homelite 3000343

OUTPUT SHAFT ASSEMBLY

$

$

Not available

12

Homelite 6906001

WASHER

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 3000342

OUTPUT SHAFT ASSEMBLY

$

$

Not available

14

Homelite 6819602

NUT

$

$

Not available

15

Homelite 6985701

STEEL PLATE

$

$

Not available

16

Homelite 6600506

BEARING RETAINER SCREW

$4.49

$

In Stock, only 4 left!

0

17

Homelite 6621211

SCREW (M4 X 12 mm)

Note: Purchase Locally

$0.99

$

Usually ships in 3-7 days

0

18

Homelite 6703001

SPRING WASHER

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 3076501

MOTOR MOUNTING ASSEMBLY

$29.99

$

Usually ships in 3-7 days

0

20

Homelite 6620803

SCREW (M4 X 22 mm PAN HD.)

Note: Purchase Locally

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 2307404

MOTOR ASSEMBLY

$

$

Not available

22

Homelite 200192002

MOTOR HOUSING SUPPORT

$

$

Currently unavailable

23

Homelite 5958401

WIND PLATE

$

$

Not available

24

Homelite 590497003

LOWER MOTOR HOUSING

$

$

Currently unavailable

25

Homelite 6620805

SCREW (M4 X 16 mm PAN HD.)
(Superseded to 660208052)

Note: Purchase Locally

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 200201002

FRONT HANDLE GUARD

$

$

Currently unavailable

27

Homelite 6620604

SCREW (M3.5 X 25 mm)

Note: Purchase Locally

$

$

Not available

28

Homelite 300890001

OIL TANK COVER ASSEMBLY

$

$

Not available

29

Homelite 5836201

OIL TANK

$3.99

$

Usually ships in 3-7 days

0

30

Homelite 2701520

SWITCH ASSEMBLY

$30.99

$

Usually ships in 3-7 days

0

31

Homelite 5217313

SAFETY KNOB

$2.49

$

In Stock, only 2 left!

0

32

Homelite 6799802

SPRING

$2.49

$

In Stock, only 4 left!

0

33

Homelite 5621901

CONTACT PLATE STOPPER

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 6800203

HEX KEY (5 mm)

$2.49

$

In Stock, only 1 left!

0

35

Homelite 660200002

SCREW (M2.3 X 6 mm)

Note: Purchase Locally

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 900162004

FELT SEAL

$2.49

$

Usually ships in 3-7 days

0

37

Homelite 130224007

BATTERY
(Superseded to 130429102)

$74.99

$

Usually ships in 3-7 days

0

38

Homelite 1423701

BATTERY CHARGER
(Superseded to 140237023)

$39.99

$

Usually ships in 3-7 days

0

39

Homelite 200227001

OIL AND BOTTLE ASSEMBLY

$

$

Currently unavailable

40

Homelite 940230050

WARNING LABEL

$

$

Currently unavailable

41

Homelite 940303117

RATING LABEL

$

$

Currently unavailable

42

Homelite 790022001

CABLE TIE

$

$

Currently unavailable

Homelite 983000-353

OPERATOR'S MANUAL

$

$

Currently unavailable

Homelite NLA

REPAIR SHEET (REV: 00)

$

$

Currently unavailable
