CS-1201 - Echo Chainsaw (SN: C14320001001 - C14320999999) Handle Parts Diagram

Chainsaw

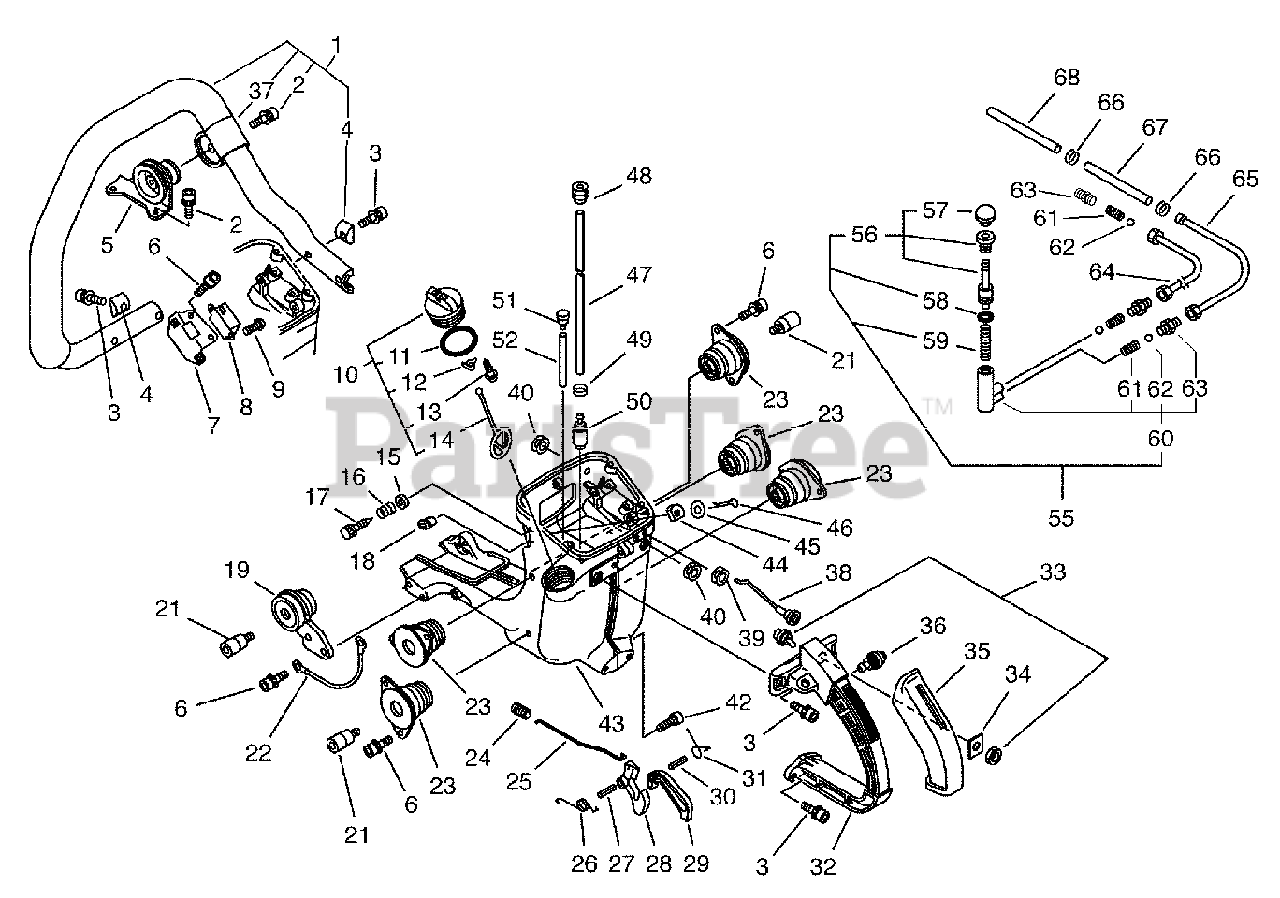

Handle Parts Diagram

  • Title

1

Echo 35160405262

HANDLE KIT - FRONT

$128.99

$

Usually ships in 2-4 days

0

1

Echo 35160405262

HANDLE KIT - FRONT

$128.99

$

Usually ships in 2-4 days

0

37

Echo 35161305260

BRACKET, HANDLE

$24.99

$

Usually ships in 2-4 days

0

37

Echo 35161305260

BRACKET, HANDLE

$24.99

$

Usually ships in 2-4 days

0

2

Echo 90016206020

SCREW - 6X20

$1.49

$

In Stock, only 4 left!

0

2

Echo 90016206020

SCREW - 6X20

$1.49

$

In Stock, only 4 left!

0

4

Echo 35161116430

WASHER

$5.99

$

Usually ships in 2-4 days

0

4

Echo 35161116430

WASHER

$5.99

$

Usually ships in 2-4 days

0

2

Echo 90016206020

SCREW - 6X20

$1.49

$

In Stock, only 4 left!

0

2

Echo 90016206020

SCREW - 6X20

$1.49

$

In Stock, only 4 left!

0

3

Echo 90016206025

SCREW - 6X25

$1.49

$

Usually ships in 2-4 days

0

3

Echo 90016206025

SCREW - 6X25

$1.49

$

Usually ships in 2-4 days

0

5

Echo 35161816431

CUSHION (L-U)

$34.99

$

Usually ships in 2-4 days

0

5

Echo 35161816431

CUSHION (L-U)

$34.99

$

Usually ships in 2-4 days

0

6

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

6

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

7

Echo 152615-60730

BRACKET, MODULE

$

$

Not available

7

Echo 152615-60730

BRACKET, MODULE

$

$

Not available

8

Echo 152605-60730

MODULE, E.S.G.

$165.99

$

Usually ships in 2-4 days

0

8

Echo 152605-60730

MODULE, E.S.G.

$165.99

$

Usually ships in 2-4 days

0

9

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

9

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

10

Echo 13100460730

CAP ASSY

$14.99

$

Usually ships in 2-4 days

0

10

Echo 13100460730

CAP ASSY

$14.99

$

Usually ships in 2-4 days

0

11

Echo 90072000032

O-RING - 32

$2.49

$

Usually ships in 2-4 days

0

11

Echo 90072000032

O-RING - 32

$2.49

$

Usually ships in 2-4 days

0

12

Echo 13105019830

RETAINER
(Superseded to Discontinued)

$

$

Not available

12

Echo 13105019830

RETAINER
(Superseded to Discontinued)

$

$

Not available

13

Echo 90024603008

SCREW - 3X8

$

$

Not available

13

Echo 90024603008

SCREW - 3X8

$

$

Not available

14

Echo 13105119830

CONNECTOR, CAP
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0

14

Echo 13105119830

CONNECTOR, CAP
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0

15

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 12

0

15

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 12

0

16

Echo 12902014730

SPRING
(Superseded to Discontinued)

$

$

Not available

16

Echo 12902014730

SPRING
(Superseded to Discontinued)

$

$

Not available

17

Echo 12901314730

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

17

Echo 12901314730

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

18

Echo 12901014730

GROMMET
(Superseded to Discontinued)

$

$

Not available

18

Echo 12901014730

GROMMET
(Superseded to Discontinued)

$

$

Not available

19

Echo 10091716430

CUSHION

$13.99

$

Usually ships in 2-4 days

0

19

Echo 10091716430

CUSHION

$13.99

$

Usually ships in 2-4 days

0

21

Echo 10091516430

SCREW

$3.49

$

Usually ships in 2-4 days

0

21

Echo 10091516430

SCREW

$3.49

$

Usually ships in 2-4 days

0

22

Echo 16201014732

LEAD - GROUND

$2.99

$

Usually ships in 2-4 days

0

22

Echo 16201014732

LEAD - GROUND

$2.99

$

Usually ships in 2-4 days

0

23

Echo 10091016431

CUSHION

$13.99

$

Usually ships in 2-4 days

0

23

Echo 10091016431

CUSHION

$13.99

$

Usually ships in 2-4 days

0

24

Echo 17821105260

GROMMET
(Superseded to Discontinued)

$

$

Not available

24

Echo 17821105260

GROMMET
(Superseded to Discontinued)

$

$

Not available

25

Echo 17801116430

ROD, THROTTLE

$4.99

$

Usually ships in 2-4 days

0

25

Echo 17801116430

ROD, THROTTLE

$4.99

$

Usually ships in 2-4 days

0

26

Echo 17804316430

SPRING, TRIGGER

$1.99

$

Usually ships in 2-4 days

0

26

Echo 17804316430

SPRING, TRIGGER

$1.99

$

Usually ships in 2-4 days

0

27

Echo 90034250025

PIN - SPRING -- 5X25

$1.49

$

In Stock, Qty 10

0

27

Echo 90034250025

PIN - SPRING -- 5X25

$1.49

$

In Stock, Qty 10

0

28

Echo 17801005260

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

28

Echo 17801005260

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

29

Echo 17809016430

LOCKOUT, THROTTLE

$3.99

$

Usually ships in 2-4 days

0

29

Echo 17809016430

LOCKOUT, THROTTLE

$3.99

$

Usually ships in 2-4 days

0

30

Echo 90034240018

PIN - SPRING -- 4X18
(Superseded to Discontinued)

$

$

Not available

30

Echo 90034240018

PIN - SPRING -- 4X18
(Superseded to Discontinued)

$

$

Not available

31

Echo 17809116430

SPRING, LOCKOUT LEVER
(Superseded to Discontinued)

$

$

Not available

31

Echo 17809116430

SPRING, LOCKOUT LEVER
(Superseded to Discontinued)

$

$

Not available

32

Echo 35111016431

HANDLE

$62.99

$

Usually ships in 2-4 days

0

32

Echo 35111016431

HANDLE

$62.99

$

Usually ships in 2-4 days

0

33

Echo 16340019831

IGNITION SWITCH KIT
(Superseded to 16340019830)

$9.99

$

In Stock, only 3 left!

0

33

Echo 16340019831

IGNITION SWITCH KIT
(Superseded to 16340019830)

$9.99

$

In Stock, only 3 left!

0

34

Echo 89015716430

LABEL - SWITCH

$1.49

$

Usually ships in 2-4 days

0

34

Echo 89015716430

LABEL - SWITCH

$1.49

$

Usually ships in 2-4 days

0

35

Echo 35111116431

GRIP

$20.99

$

Usually ships in 2-4 days

0

35

Echo 35111116431

GRIP

$20.99

$

Usually ships in 2-4 days

0

36

Echo 17830212330

LATCH, THROTTLE
(Superseded to 17830237930)

$9.99

$

In Stock, only 1 left!

0

36

Echo 17830212330

LATCH, THROTTLE
(Superseded to 17830237930)

$9.99

$

In Stock, only 1 left!

0

38

Echo 17851016430

ROD, CHOKE

$6.99

$

Usually ships in 2-4 days

0

38

Echo 17851016430

ROD, CHOKE

$6.99

$

Usually ships in 2-4 days

0

39

Echo 17881002830

GROMMET

$0.99

$

Usually ships in 2-4 days

0

39

Echo 17881002830

GROMMET

$0.99

$

Usually ships in 2-4 days

0

40

Echo 15611406330

BUSHING
(Superseded to Discontinued)

$

$

Not available

40

Echo 15611406330

BUSHING
(Superseded to Discontinued)

$

$

Not available

43

Echo 13100260732

TANK, FUEL

$269.99

$

Usually ships in 2-4 days

0

43

Echo 13100260732

TANK, FUEL

$269.99

$

Usually ships in 2-4 days

0

42

Echo 90010505014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

42

Echo 90010505014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

44

Echo 13141000330

SEAL, FELT
(Superseded to Discontinued)

$

$

Not available

44

Echo 13141000330

SEAL, FELT
(Superseded to Discontinued)

$

$

Not available

45

Echo 90060000002

WASHER - 2

$0.99

$

Usually ships in 2-4 days

0

45

Echo 90060000002

WASHER - 2

$0.99

$

Usually ships in 2-4 days

0

46

Echo 90030020015

PIN, SPLIT -- 2X15
(Superseded to Discontinued)

$

$

Not available

46

Echo 90030020015

PIN, SPLIT -- 2X15
(Superseded to Discontinued)

$

$

Not available

47

Echo 13201005260

PIPE - 3X6X360

$8.49

$

Usually ships in 2-4 days

0

47

Echo 13201005260

PIPE - 3X6X360

$8.49

$

Usually ships in 2-4 days

0

48

Echo 13211512330

GROMMET

$1.49

$

In Stock, Qty 20+

0

48

Echo 13211512330

GROMMET

$1.49

$

In Stock, Qty 20+

0

49

Echo 13201326630

CLIP - 6.5
(Superseded to V490001230)

$0.99

$

In Stock, Qty 20+

0

49

Echo 13201326630

CLIP - 6.5
(Superseded to V490001230)

$0.99

$

In Stock, Qty 20+

0

50

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0

50

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0

51

Echo 13130016430

VENT, FUEL TANK

$7.49

$

Usually ships in 2-4 days

0

51

Echo 13130016430

VENT, FUEL TANK

$7.49

$

Usually ships in 2-4 days

0

52

Echo V471003440

PIPE
(Superseded to V471003450)

$4.49

$

Usually ships in 2-4 days

0

52

Echo V471003440

PIPE
(Superseded to V471003450)

$4.49

$

Usually ships in 2-4 days

0

55

Echo 43710016430

OIL PUMP ASSY

$51.99

$

Usually ships in 2-4 days

0

55

Echo 43710016430

OIL PUMP ASSY

$51.99

$

Usually ships in 2-4 days

0

56

Echo 43710114730

PISTON, OIL PUMP

$12.99

$

Usually ships in 2-4 days

0

56

Echo 43710114730

PISTON, OIL PUMP

$12.99

$

Usually ships in 2-4 days

0

57

Echo 43711914731

BUTTON, PUSH

$2.99

$

Usually ships in 2-4 days

0

57

Echo 43711914731

BUTTON, PUSH

$2.99

$

Usually ships in 2-4 days

0

58

Echo 90072000006

O-RING - 6

$1.49

$

In Stock, only 3 left!

0

58

Echo 90072000006

O-RING - 6

$1.49

$

In Stock, only 3 left!

0

59

Echo 43711100231

SPRING, OIL PUMP

$1.99

$

Usually ships in 2-4 days

0

59

Echo 43711100231

SPRING, OIL PUMP

$1.99

$

Usually ships in 2-4 days

0

60

Echo 43710216430

OIL PUMP BODY ASSY

$39.99

$

Usually ships in 2-4 days

0

60

Echo 43710216430

OIL PUMP BODY ASSY

$39.99

$

Usually ships in 2-4 days

0

61

Echo 43701300330

SPRING, VALVE
(Superseded to V450000290)

$0.99

$

In Stock, Qty 8

0

61

Echo 43701300330

SPRING, VALVE
(Superseded to V450000290)

$0.99

$

In Stock, Qty 8

0

62

Echo 43701200330

VALVE, BALL

$0.99

$

In Stock, Qty 8

0

62

Echo 43701200330

VALVE, BALL

$0.99

$

In Stock, Qty 8

0

63

Echo 43705200330

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

63

Echo 43705200330

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

64

Echo 43720616430

PIPE

$21.99

$

Usually ships in 2-4 days

0

64

Echo 43720616430

PIPE

$21.99

$

Usually ships in 2-4 days

0

65

Echo 43720732930

PIPE

$18.99

$

Usually ships in 2-4 days

0

65

Echo 43720732930

PIPE

$18.99

$

Usually ships in 2-4 days

0

66

Echo 43722116430

CLIP

$1.49

$

Usually ships in 2-4 days

0

66

Echo 43722116430

CLIP

$1.49

$

Usually ships in 2-4 days

0

67

Echo 43721116431

PIPE - FUEL

$0.99

$

In Stock, Qty 20+

0

67

Echo 43721116431

PIPE - FUEL

$0.99

$

In Stock, Qty 20+

0

68

Echo 43741216430

TUBE, PROTECTIVE

$2.49

$

Usually ships in 2-4 days

0

68

Echo 43741216430

TUBE, PROTECTIVE

$2.49

$

Usually ships in 2-4 days

0
