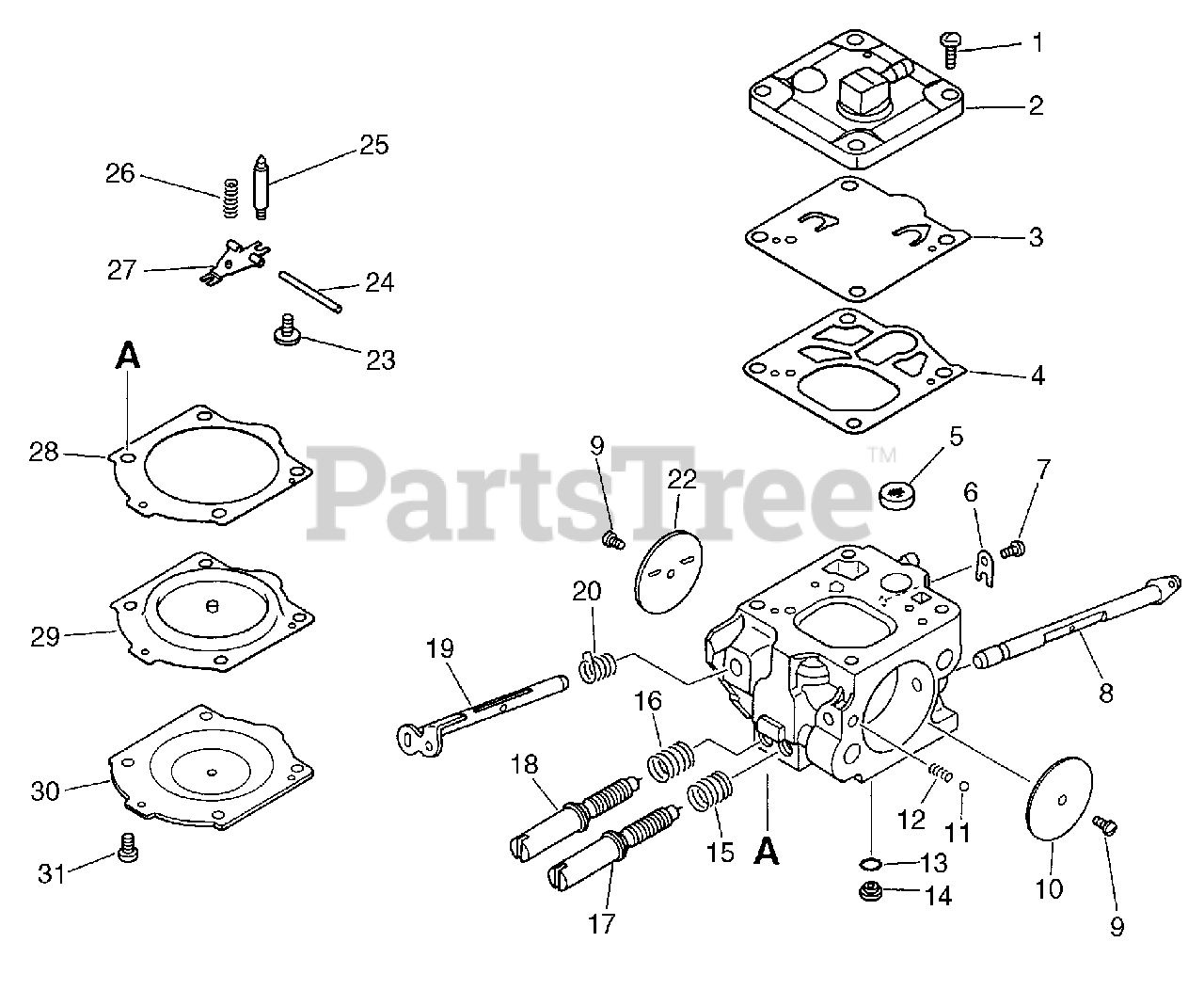

CS-1201 - Echo Chainsaw (Original Version) Carburetor Parts Diagram

Chainsaw

Carburetor Parts Diagram

  • Title

Echo 12200032930

CARBURETOR
(Superseded to P021010271)

$235.99

$

Usually ships in 2-4 days

0

1

Echo 12211000231

SCREW
(Superseded to Discontinued)

$

$

Not available

2

Echo 12212414730

COVER, PUMP

$37.99

$

Usually ships in 2-4 days

0

3

Echo 12212500230

GASKET, PUMP

$3.49

$

Usually ships in 2-4 days

0

4

Echo 12211200230

DIAPHRAGM, PUMP

$6.49

$

Usually ships in 2-4 days

0

5

Echo 12212600230

STRAINER
(Superseded to Discontinued)

$

$

Not available

6

Echo 12212700230

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

7

Echo 12211400231

SCREW
(Superseded to Discontinued)

$

$

Not available

8

Echo 12213132930

SHAFT, CHOKE
(Superseded to Discontinued)

$

$

Not available

9

Echo 12214400231

SCREW
(Superseded to Discontinued)

$

$

Not available

10

Echo 12213210630

VALVE, CHOKE
(Superseded to Discontinued)

$

$

Not available

11

Echo 12213600230

BALL, CHOKE SET
(Superseded to Discontinued)

$

$

Not available

12

Echo 12213500230

SPRING, CHOKE SET
(Superseded to Discontinued)

$

$

Not available

13

Echo 12214500230

PLUG, WELCH - LARGE
(Superseded to Discontinued)

$

$

Not available

14

Echo 12214732930

VALVE, CHECK
(Superseded to Discontinued)

$

$

Not available

15

Echo 12211910630

SPRING
(Superseded to Discontinued)

$

$

Not available

16

Echo 12212110630

SPRING
(Superseded to Discontinued)

$

$

Not available

17

Echo 12212032930

NEEDLE - HIGH SPEED
(Superseded to Discontinued)

$

$

Not available

18

Echo 12211832930

NEEDLE - LOW SPEED

$23.99

$

Usually ships in 2-4 days

0

19

Echo 12211732930

SHAFT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

20

Echo 12211332930

SPRING, RETURN

$5.49

$

Usually ships in 2-4 days

0

22

Echo 12211632930

VALVE, THROTTLE

$10.99

$

Usually ships in 2-4 days

0

23

Echo 12213900231

SCREW, METERING LEVER PIN

$4.99

$

Usually ships in 2-4 days

0

24

Echo 12213800230

PIN, METERING LEVER

$1.99

$

Usually ships in 2-4 days

0

25

Echo 12213700230

VALVE, INLET NEEDLE
(Superseded to Discontinued)

$

$

Not available

26

Echo 12212200230

SPRING, METERING LEVER

$1.99

$

Usually ships in 2-4 days

0

27

Echo 12212300230

LEVER, METERING

$2.99

$

Usually ships in 2-4 days

0

28

Echo 12214000230

GASKET, DIAPHRAGM
(Superseded to Discontinued)

$

$

Not available

29

Echo 12214100230

DIAPHRAGM

$23.99

$

Usually ships in 2-4 days

0

30

Echo 12214214730

COVER, DIAPHRAGM

$24.99

$

Usually ships in 2-4 days

0

31

Echo 12214400231

SCREW
(Superseded to Discontinued)

$

$

Not available
