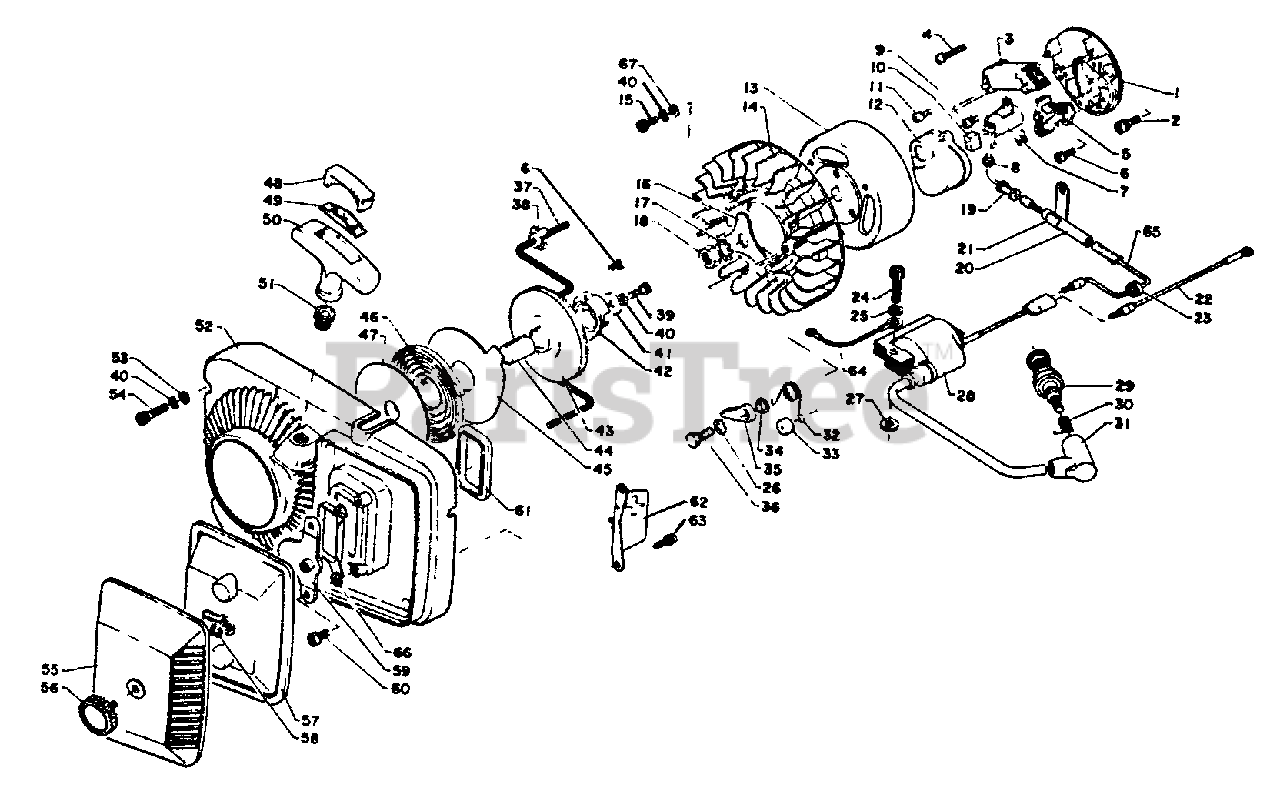

CS-1001 VL - Echo Chainsaw Ignition, Starter Parts Diagram

Chainsaw

Ignition, Starter Parts Diagram

  • Title

1

Echo 15513210630

PLATE, STATOR
(Superseded to Discontinued)

$

$

Not available

2

Echo 90022005018

SCREW - 5X18

$0.99

$

In Stock, Qty 5

0

3

Echo 15512610630

Primary ignition coil
(Superseded to Discontinued)

$

$

Not available

4

Echo 90024104025

SCREW - 4X25
(Superseded to Discontinued)

$

$

Not available

5

Echo 15510110630

CONTACT POINT SET
(Superseded to Discontinued)

$

$

Not available

6

Echo 90024004010

SCREW - 4X10
(Superseded to Discontinued)

$

$

Not available

7

Echo 15512710631

CONDENSER 1
(Superseded to Discontinued)

$

$

Not available

8

Echo 15513510630

Rubber bushing
(Superseded to Discontinued)

$

$

Not available

9

Echo 90024104010

SCREW - 4X10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 6

0

10

Echo 15513410630

Oiler (0.1 felt)
(Superseded to Discontinued)

$

$

Not available

11

Echo 90024104012

SCREW - 4X12

$0.99

$

Usually ships in 2-4 days

0

12

Echo 15512810630

COVER, BREAKER
(Superseded to Discontinued)

$

$

Not available

13

Echo 15520110630

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

14

Echo 10152110631

FAN
(Superseded to Discontinued)

$

$

Not available

15

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

16

Echo 10014310630

WASHER
(Superseded to Discontinued)

$

$

Not available

17

Echo 90061100010

WASHER - 10

$0.99

$

In Stock, only 2 left!

0

18

Echo 10014402830

NUT

$1.49

$

In Stock, Qty 5

0

19

Echo 15511410630

Rubber bushing
(Superseded to Discontinued)

$

$

Not available

20

Echo 15511310631

Cover tube
(Superseded to Discontinued)

$

$

Not available

21

Echo 15911210630

CLIP
(Superseded to Discontinued)

$

$

Not available

22

Echo 15513110631

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

23

Echo 15011400630

GROMMET
(Superseded to Discontinued)

$

$

Not available

24

Echo 90010546025

SCREW - 5X25

$

$

Currently unavailable

25

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, only 2 left!

0

26

Echo 90060600006

WASHER - 6

$

$

Currently unavailable

27

Echo 17501404630

WASHER - 6

$1.99

$

In Stock, Qty 20+

0

28

Echo 15514210630

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

29

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

30

Echo 15901110630

TERMINAL, SPARK PLUG CAP
(Superseded to Discontinued)

$

$

Not available

31

Echo 15901210630

CAP, SPARK PLUG
(Superseded to Discontinued)

$

$

Not available

32

Echo 17723410630

SPRING, RETURN
(Superseded to Discontinued)

$

$

Not available

33

Echo 17724502830

CAP

$0.99

$

In Stock, Qty 6

0

34

Echo 17724710630

SPACER
(Superseded to Discontinued)

$

$

Not available

35

Echo 17721810630

PAWL, STARTER
(Superseded to Discontinued)

$

$

Not available

36

Echo 90010006014

BOLT - 6X14
(Superseded to Discontinued)

$

$

Not available

37

Echo 17722600130

ROPE, STARTER
(Superseded to Discontinued)

$

$

Not available

38

Echo 17724610630

RETAINER, ROPE
(Superseded to 17724610631)

$

$

Not available

39

Echo 90010505015

SCREW - 5X15

$1.49

$

Usually ships in 2-4 days

0

40

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 9

0

41

Echo 30021700610

WASHER

$0.99

$

In Stock, Qty 14

0

42

Echo 17724310630

CATCHER, PAWL
(Superseded to Discontinued)

$

$

Not available

43

Echo 17721510630

REEL, ROPE
(Superseded to 17721510632)

$18.99

$

Usually ships in 2-4 days

0

44

Echo 17721610630

BUSHING

$1.99

$

Usually ships in 2-4 days

0

45

Echo 17724210630

PLATE, STARTER
(Superseded to Discontinued)

$

$

Not available

46

Echo 17722010630

SPRING, REWIND
(Superseded to 17722010631)

$15.99

$

Usually ships in 2-4 days

0

47

Echo 17722110630

PLATE, STARTER

$5.99

$

Usually ships in 2-4 days

0

48

Echo 17724410630

CAP
(Superseded to Discontinued)

$

$

Not available

49

Echo 17722910630

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

50

Echo 17722810630

GRIP, STARTER
(Superseded to 17722810631)

$

$

Not available

51

Echo 17722710630

GUIDE, ROPE
(Superseded to 17722707060)

$17.99

$

Usually ships in 2-4 days

0

52

Echo 10150710630

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

53

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

54

Echo 90010505020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

55

Echo 13031310631

COVER, AIR FILTER

$

$

Currently unavailable

56

Echo 13040610230

THUMBSCREW
(Superseded to Discontinued)

$

$

Not available

57

Echo 13030510631

FILTER, AIR

$

$

Currently unavailable

57

Echo 13031710631

FILTER, AIR

$

$

Currently unavailable

58

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

59

Echo 13040510632

PLATE, PREVENT

$

$

Currently unavailable

60

Echo 90024105010

SCREW - 5X10

$0.99

$

In Stock, only 4 left!

0

61

Echo 13032010630

O-RING
(Superseded to Discontinued)

$

$

Not available

62

Echo 10153410630

GUIDE, AIR
(Superseded to Discontinued)

$

$

Not available

63

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

64

Echo 16201010631

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

65

Echo 15513310630

LEAD - GROUND
(Superseded to 15513110631)

$

$

Not available

66

Echo 13042410631

Seal packing holder

$

$

Currently unavailable

67

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0
