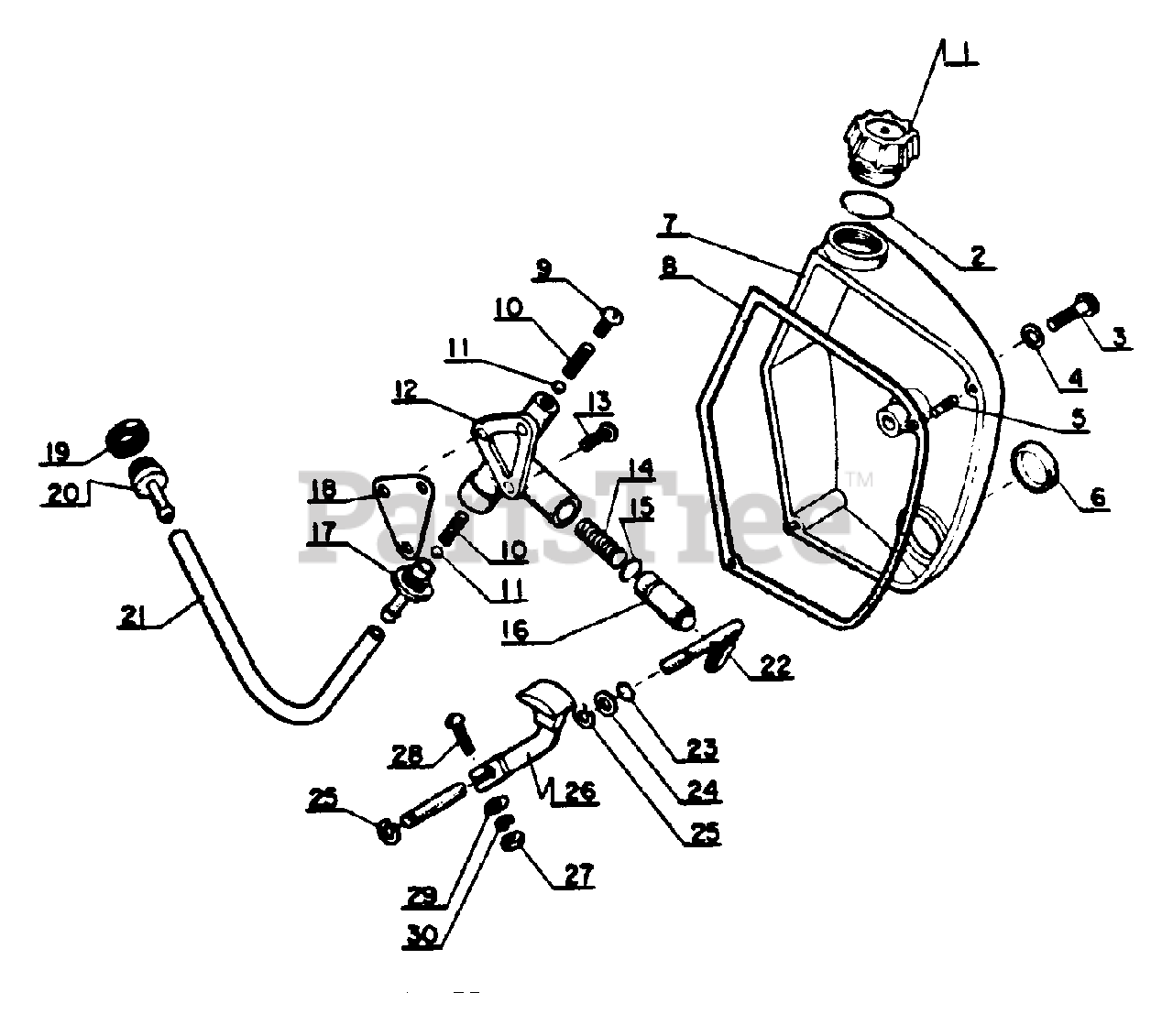

CS-100 - Echo Chainsaw Oil Tank Parts Diagram

Chainsaw

Oil Tank Parts Diagram

  • Title
1

Echo 43600000130

CAP
(Superseded to Discontinued)

$

$

Not available

2

Echo 43601200230

GASKET, CAP
(Superseded to 90072000018)

$1.99

$

In Stock, Qty 20+

0

3

Echo 10102600130

BOLT
(Superseded to 90010506022)

$

$

Not available

4

Echo 35122100130

WASHER
(Superseded to Discontinued)

$

$

Not available

5

Echo 43601800130

PIN - LOCATING
(Superseded to Discontinued)

$

$

Not available

6

Echo 43601700130

GAUGE, OIL
(Superseded to Discontinued)

$

$

Not available

7

Echo 43600500131

TANK, OIL
(Superseded to Discontinued)

$

$

Not available

8

Echo 43601900130

GASKET
(Superseded to Discontinued)

$

$

Not available

9

Echo 90020006005

SCREW - 6X5

$

$

Currently unavailable

10

Echo 43711600130

SPRING, VALVE
(Superseded to Discontinued)

$

$

Not available

11

Echo 43711700130

VALVE, BALL
(Superseded to Discontinued)

$

$

Not available

12

Echo 43711000130

BODY, OIL PUMP
(Superseded to Discontinued)

$

$

Not available

13

Echo 90001005016

SCREW
(Superseded to Discontinued)

Note: Used on CS-100 (JIS)

$

$

Not available

13

Echo 90021005016

SCREW - 5X16
(Superseded to 90022005016)

Note: Used on CS-100 (ISO)

$0.99

$

In Stock, Qty 8

0

14

Echo 43711100130

SPRING, PUMP
(Superseded to Discontinued)

$

$

Not available

15

Echo 43702000130

O-RING
(Superseded to 90072000007)

$0.99

$

In Stock, only 1 left!

0

16

Echo 43711200130

PISTON, OIL PUMP
(Superseded to Discontinued)

$

$

Not available

17

Echo 43711800130

NIPPLE
(Superseded to Discontinued)

$

$

Not available

18

Echo 43711300130

PACKING
(Superseded to Discontinued)

$

$

Not available

19

Echo 43621200130

COVER, OIL FILTER
(Superseded to Discontinued)

$

$

Not available

20

Echo 43620500130

FILTER, OIL
(Superseded to Discontinued)

$

$

Not available

21

Echo 43721000130

PIPE, OIL - INNER
(Superseded to Discontinued)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

22

Echo 70701000130

Push lever

$

$

Currently unavailable

23

Echo 43703100430

O-RING
(Superseded to 90072000005)

$

$

Not available

24

Echo 70701100130

WASHER
(Superseded to Discontinued)

$

$

Not available

25

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

26

Echo 70700500130

Push lever

$

$

Currently unavailable

27

Echo 90002000005

NUT
(Superseded to Discontinued)

Note: Used on CS-100 (JIS)

$

$

Not available

27

Echo 90050000005

NUT - 5

Note: Used on CS-100 (ISO)

$0.99

$

In Stock, Qty 20+

0

28

Echo 90001005014

SCREW

Note: Used on CS-100 (JIS)

$

$

Currently unavailable

28

Echo 90021005014

SCREW - 5X14
(Superseded to 90022005014)

Note: Used on CS-100 (ISO)

$0.99

$

In Stock, Qty 7

0

29

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

30

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0
