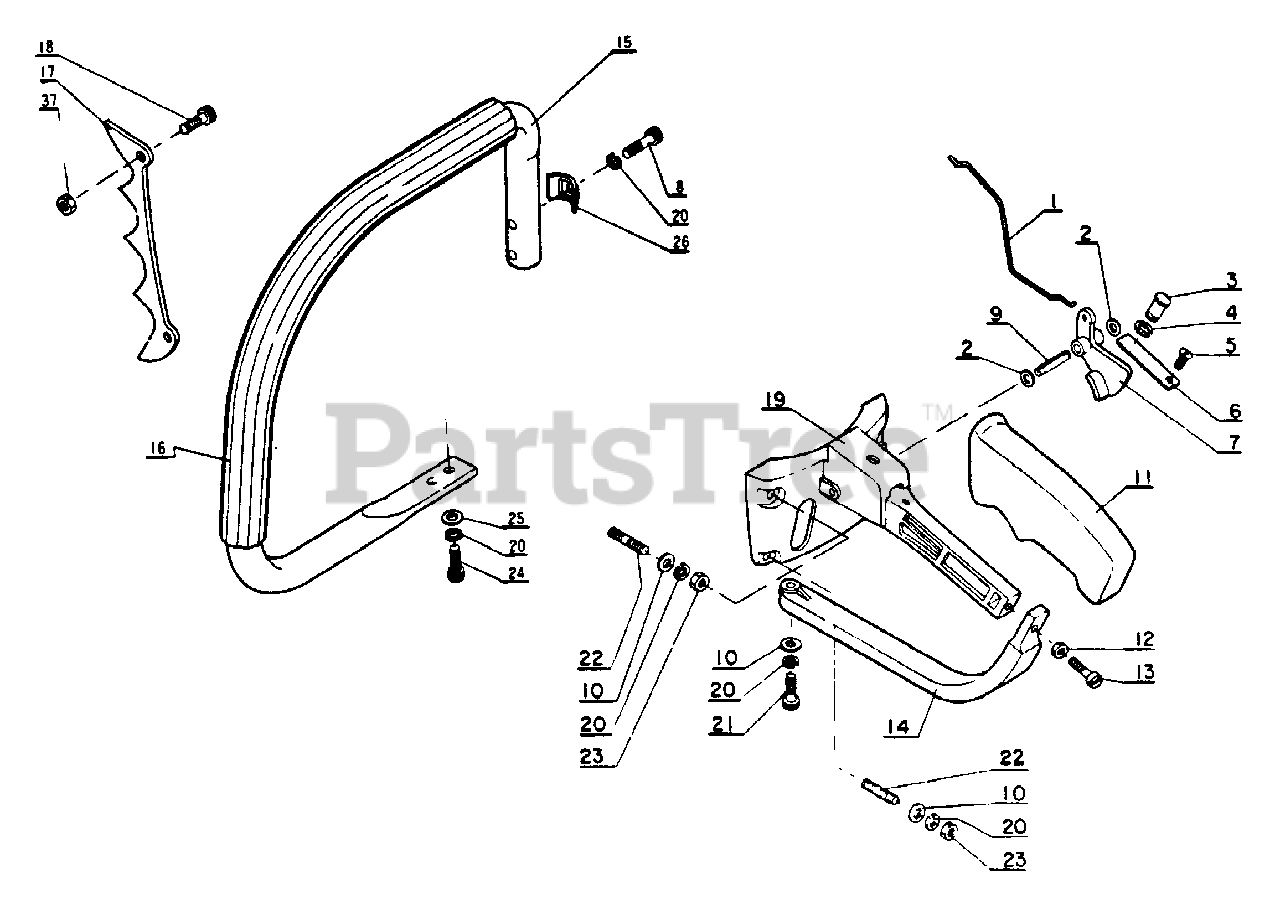

CS-100 - Echo Chainsaw Handle Parts Diagram

Chainsaw

Handle Parts Diagram

  • Title

1

Echo 17801100130

ROD, CHOKE
(Superseded to Discontinued)

$

$

Not available

2

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

3

Echo 17801200130

LOCKOUT, THROTTLE
(Superseded to 17801200230)

$3.49

$

Usually ships in 2-4 days

0

4

Echo 90076000006

RING, RETAINING

$

$

Currently unavailable

5

Echo 90001405008

SCREW
(Superseded to Discontinued)

Note: Used on CS-100 (JIS)

$

$

Not available

5

Echo 90021005008

SCREW - 5X8
(Superseded to 90022005008)

Note: Used on CS-100 (ISO)

$0.99

$

In Stock, Qty 12

0

6

Echo 17801300130

SPRING, TRIGGER
(Superseded to Discontinued)

$

$

Not available

7

Echo 17801000130

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

8

Echo 35123100430

SCREW - 6X35
(Superseded to Discontinued)

$

$

Not available

9

Echo 17811000230

PIN

$1.49

$

Usually ships in 2-4 days

0

10

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

11

Echo 35101200131

COVER, HANDLE
(Superseded to Discontinued)

$

$

Not available

12

Echo 90002000005

NUT
(Superseded to Discontinued)

Note: Used on CS-100 (JIS)

$

$

Not available

12

Echo 90050000005

NUT - 5

Note: Used on CS-100 (ISO)

$0.99

$

In Stock, Qty 20+

0

13

Echo 35101300330

SCREW - 5X25
(Superseded to 90010505025)

Note: Used on CS-100 (JIS)

$1.49

$

In Stock, Qty 16

0

13

Echo 35121800830

BOLT - 5X25
(Superseded to 90010505025)

Note: Used on CS-100 (ISO)

$1.49

$

In Stock, Qty 16

0

14

Echo 35101100131

SUPPORT, HANDLE
(Superseded to Discontinued)

$

$

Not available

15

Echo 35120500130

HANDLE - FRONT
(Superseded to Discontinued)

$

$

Not available

16

Echo 35121600130

GRIP, HANDLE
(Superseded to Discontinued)

$

$

Not available

17

Echo 88021000130

SPIKE
(Superseded to Discontinued)

$

$

Not available

18

Echo 90010006014

BOLT - 6X14
(Superseded to Discontinued)

$

$

Not available

19

Echo 35101000131

HANDLE - RIGHT
(Superseded to 35101000132)

Note: Used on CS-100 (JIS)

$

$

Not available

19

Echo 35101000132

HANDLE - RIGHT
(Superseded to Discontinued)

Note: Used on CS-100 (ISO)

$

$

Not available

20

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, only 2 left!

0

21

Echo 35101400130

BOLT
(Superseded to 90010506020)

$1.49

$

In Stock, only 3 left!

0

22

Echo 10025400130

STUD

$1.49

$

Usually ships in 2-4 days

0

23

Echo 14571000230

LOCKNUT - 6
(Superseded to 90056000006)

$1.49

$

In Stock, Qty 20+

0

24

Echo 10102600130

BOLT
(Superseded to 90010506022)

$

$

Not available

25

Echo 35122100130

WASHER
(Superseded to Discontinued)

$

$

Not available

26

------------------

Handle set plate

Note: NOT USED ON THIS MODEL

$

$

Not available

37

------------------

NUT

Note: NOT USED ON THIS MODEL

$

$

Not available
