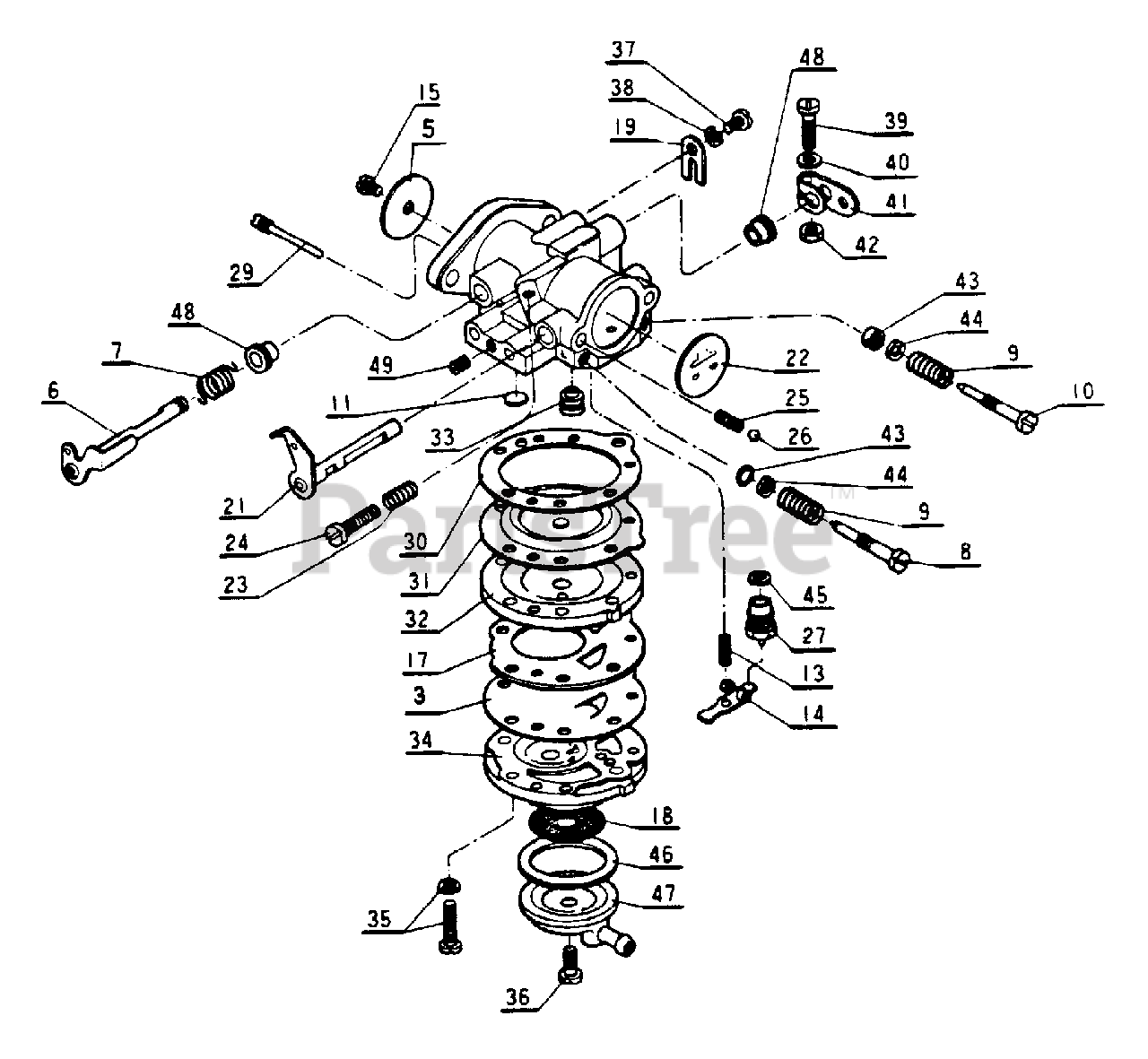

CS-100 - Echo Chainsaw Carburetor Parts Diagram

Chainsaw

Carburetor Parts Diagram

  • Title

Echo 12200000130

CARBURETOR HL-266A
(Superseded to Discontinued)

$

$

Not available

3

Echo 12211200130

DIAPHRAGM, PUMP
(Superseded to Discontinued)

$

$

Not available

5

Echo 12211600130

VALVE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

6

Echo 12211700130

SHAFT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

7

Echo 12211300130

SPRING, RETURN
(Superseded to Discontinued)

$

$

Not available

8

Echo 12211800130

SCREW, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

9

Echo 12211900230

SCREW, IDLE ADJUST

$1.99

$

Usually ships in 2-4 days

0

10

Echo 12212000130

SCREW, MAIN ADJUST
(Superseded to Discontinued)

$

$

Not available

11

Echo 12214500130

PLUG, WELCH - LARGE
(Superseded to Discontinued)

$

$

Not available

13

Echo 12212200230

SPRING, METERING LEVER

$1.99

$

Usually ships in 2-4 days

0

14

Echo 12212300230

LEVER, METERING

$2.99

$

Usually ships in 2-4 days

0

15

Echo 12214400230

SCREW
(Superseded to Discontinued)

$

$

Not available

17

Echo 12212500130

GASKET, PUMP
(Superseded to Discontinued)

$

$

Not available

18

Echo 12212600130

FILTER, FUEL
(Superseded to Discontinued)

$

$

Not available

19

Echo 12212700130

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

21

Echo 12213100130

SHAFT, CHOKE
(Superseded to Discontinued)

$

$

Not available

22

Echo 12213200130

VALVE, CHOKE
(Superseded to Discontinued)

$

$

Not available

23

Echo 12213300130

SPRING
(Superseded to Discontinued)

$

$

Not available

24

Echo 12213400130

SCREW
(Superseded to Discontinued)

$

$

Not available

25

Echo 12213500230

SPRING, CHOKE SET
(Superseded to Discontinued)

$

$

Not available

26

Echo 12213600130

BALL, CHOKE SET
(Superseded to Discontinued)

$

$

Not available

27

Echo 12213700130

VALVE, INLET NEEDLE
(Superseded to Discontinued)

$

$

Not available

29

Echo 12213900130

SCREW, METERING LEVER PIN
(Superseded to Discontinued)

$

$

Not available

30

Echo 12214000130

GASKET, DIAPHRAGM
(Superseded to Discontinued)

$

$

Not available

31

Echo 12214100130

DIAPHRAGM
(Superseded to Discontinued)

$

$

Not available

32

Echo 12214200130

COVER, DIAPHRAGM
(Superseded to Discontinued)

$

$

Not available

33

Echo 12214700130

VALVE, CHECK
(Superseded to Discontinued)

$

$

Not available

34

Echo 12215700130

BASE, PURGE
(Superseded to Discontinued)

$

$

Not available

35

Echo 12215800130

SCREW
(Superseded to Discontinued)

Note: Included in Carburetor ass'y

$

$

Not available

36

Echo 12216100130

SCREW
(Superseded to Discontinued)

Note: Included in Carburetor ass'y

$

$

Not available

37

Echo 12213000130

SCREW
(Superseded to Discontinued)

Note: Included in Carburetor ass'y

$

$

Not available

38

Echo 12212900130

WASHER
(Superseded to Discontinued)

Note: Included in Carburetor ass'y

$

$

Not available

39

Echo 12214800130

SCREW
(Superseded to Discontinued)

Note: Included in Carburetor ass'y

$

$

Not available

40

Echo 12214900130

WASHER
(Superseded to Discontinued)

Note: Included in Carburetor ass'y

$

$

Not available

41

Echo 12215000130

LEVER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

42

Echo 12215100130

NUT
(Superseded to Discontinued)

$

$

Not available

43

Echo 12215200130

PACKING
(Superseded to Discontinued)

$

$

Not available

44

Echo 12215300130

WASHER
(Superseded to Discontinued)

$

$

Not available

45

Echo 12215500130

GASKET, NEEDLE VALVE
(Superseded to Discontinued)

$

$

Not available

46

Echo 12215900130

SEAL
(Superseded to Discontinued)

$

$

Not available

47

Echo 12216000130

COVER, FUEL FILTER
(Superseded to Discontinued)

$

$

Not available

48

------------------

UNKNOWN

$

$

Not available

49

------------------

UNKNOWN

$

$

Not available
