CS-100 - Echo Chainsaw Air Cleaner Parts Diagram

Chainsaw

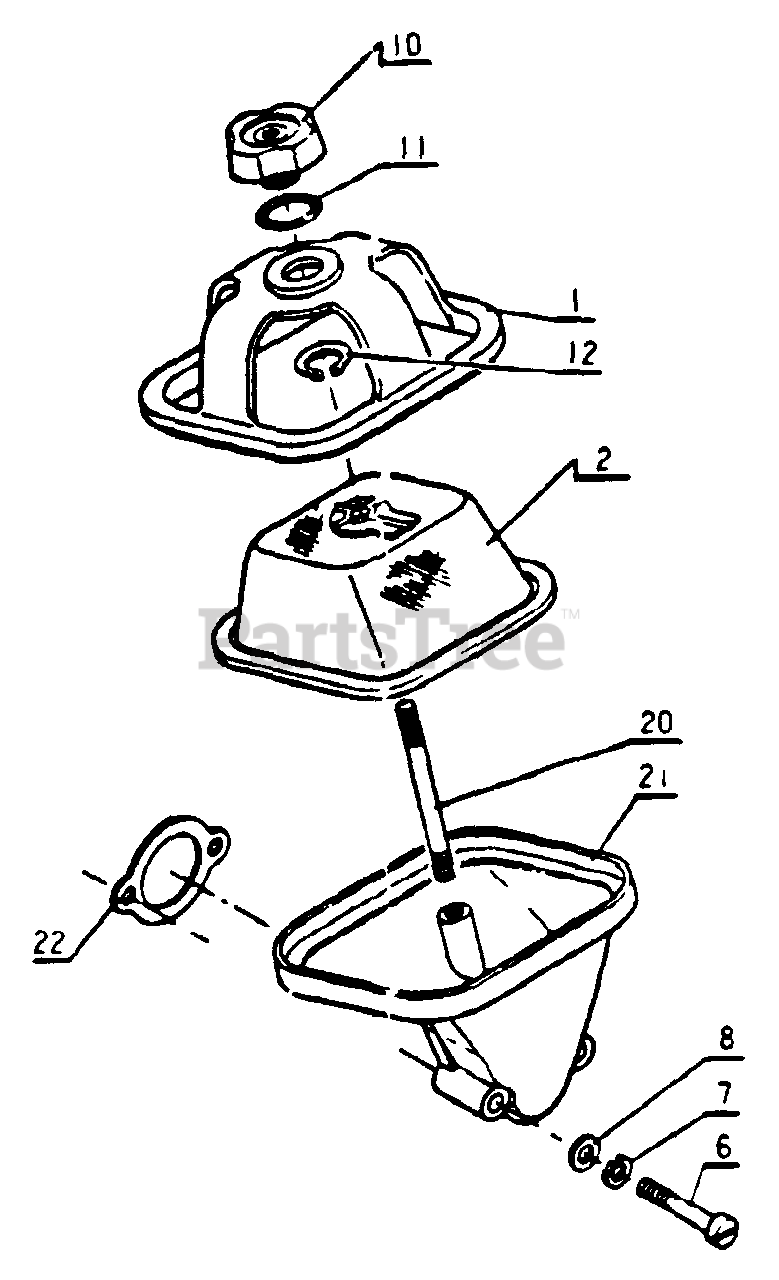

Air Cleaner Parts Diagram

  • Title

1

Echo 13031300132

COVER, AIR FILTER
(Superseded to Discontinued)

Note: Included in Air cleaner ass'y

$

$

Not available

2

Echo 13030500133

FILTER, AIR
(Superseded to Discontinued)

Note: Included in Air cleaner ass'y

$

$

Not available

6

Echo 13041700130

SCREW - 5X10
(Superseded to Discontinued)

$

$

Not available

7

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 9

0

8

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

10

Echo 13040600830

WINGNUT
(Superseded to Discontinued)

Note: Included in Air cleaner ass'y

$

$

Not available

11

Echo 13041400230

O-RING
(Superseded to 90072000014)

Note: Included in Air cleaner ass'y

$1.49

$

Usually ships in 2-4 days

0

12

Echo 90070100011

RING, RETAINING - 11

Note: Included in Air cleaner ass'y

$0.99

$

In Stock, Qty 7

0

20

Echo 13032500131

STUD
(Superseded to Discontinued)

Note: Included in Air cleaner ass'y

$

$

Not available

21

Echo 13030100131

CASE, AIR FILTER
(Superseded to Discontinued)

Note: Included in Air cleaner ass'y

$

$

Not available

22

Echo 13041800130

GASKET
(Superseded to Discontinued)

Note: Included in Air cleaner ass'y

$

$

Not available

Echo 13030000334

AIR CLEANER ASSY

$

$

Currently unavailable

Echo 13030500131

FILTER, AIR

Note: Round Type

$

$

Currently unavailable
