CRT 900 LS (960930019-00) - Husqvarna Rear-Tine Tiller (2011-06) MAINFRAME LEFT SIDE Parts Diagram

Rear-Tine Tiller

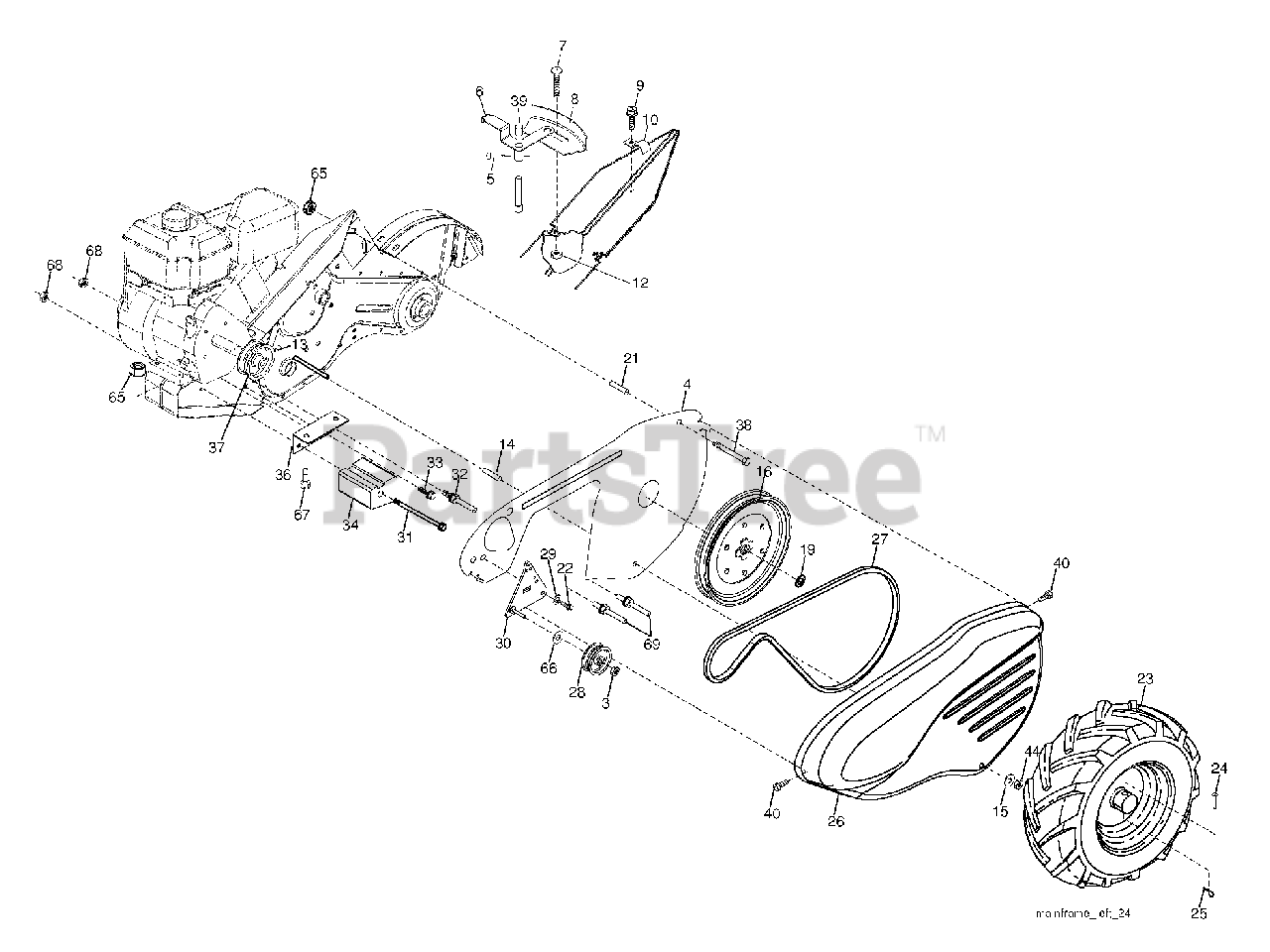

MAINFRAME LEFT SIDE Parts Diagram

  • Title
3

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532432420

SHIELD.INNER.BELT.GUARD.RT

$79.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532164329

PIN.SPIROL.FLARED

$7.49

$

In Stock, Qty 8

0

6

Husqvarna 532110111

LEVER ASM CRT

$18.99

$

Usually ships in 3-10 days

0

$9.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532008700

PANEL.INDICATOR.SHIFT.BLACK

$4.99

$

In Stock, only 1 left!

0

9

Husqvarna 532086777

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

10

Husqvarna 532009484

CONDUIT.CLIP.PLATED

$6.49

$

In Stock, only 4 left!

0

12

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

13

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 532156117

SPACER-SPLIT.327 X .42

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

16

Husqvarna 532145102

SHEAVE, TRANSMISSION

$68.99

$

In Stock, only 3 left!

0

19

Husqvarna 812000028

RETAINING RING LT

$7.49

$

In Stock, Qty 7

0

21

Husqvarna 532110652

SPACER CRT

$5.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532102190

TIRE.13X5-6.CHEVRON.TILLER

$93.99

$

Usually ships in 3-10 days

0

Husqvarna 532150740

RIM.ASM.6".SILVER

$109.99

$

Usually ships in 3-10 days

0

Husqvarna 532124718

VALVE STEM LT
(Superseded to 532065139)

$9.99

$

In Stock, only 1 left!

0

24

Husqvarna 532126875

RIVET,DRILLED

$6.49

$

In Stock, Qty 20+

0

25

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

26

Husqvarna 532440438

GUARD.BELT.TILLER.ORANGE

$54.99

$

In Stock, only 1 left!

0

27

Husqvarna 532132801

V-BELT
(Superseded to 591372401)

$17.99

$

In Stock, Qty 7

0

28

Husqvarna 532104679

PULLEY-IDLER TI

$18.99

$

In Stock, only 1 left!

0

29

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532159229

BRACKET.ASM.IDLER.BLACK
(Superseded to 584289401)

$

$

Not available

31

Husqvarna 532102384

BOLT.FIN.HEX.3/8-16UNC

$9.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532102141

SHIFT ARM CRT

$7.99

$

Usually ships in 3-10 days

0

33

Husqvarna 874760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532102383

COUNTERWEIGHT.LH.CRT

$133.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532102331

BRACKET LH CRT

Note: LH

$13.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532130812

ENGINE PULLEY
(Superseded to 592642101)

$13.99

$

In Stock, only 2 left!

0

38

Husqvarna 874760544

BOLT
(Superseded to 874780544)

$

$

Not available

39

Husqvarna 532140062

CAP.PLUNGER.BLACK

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532170488

SCREW.HEX.WSH.SLT.#10-24X.50

$6.49

$

In Stock, only 2 left!

0

44

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

65

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

66

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

67

Husqvarna 874760524

BOLT
(Superseded to 874780524)

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

69

Husqvarna 532164173

KEEPER.BELT.ENGINE

$8.99

$

Usually ships in 3-10 days

0
