CRT 900 L (960930021-00) - Husqvarna Rear-Tine Tiller (2011-09) TINE ASSEMBLY Parts Diagram

Rear-Tine Tiller

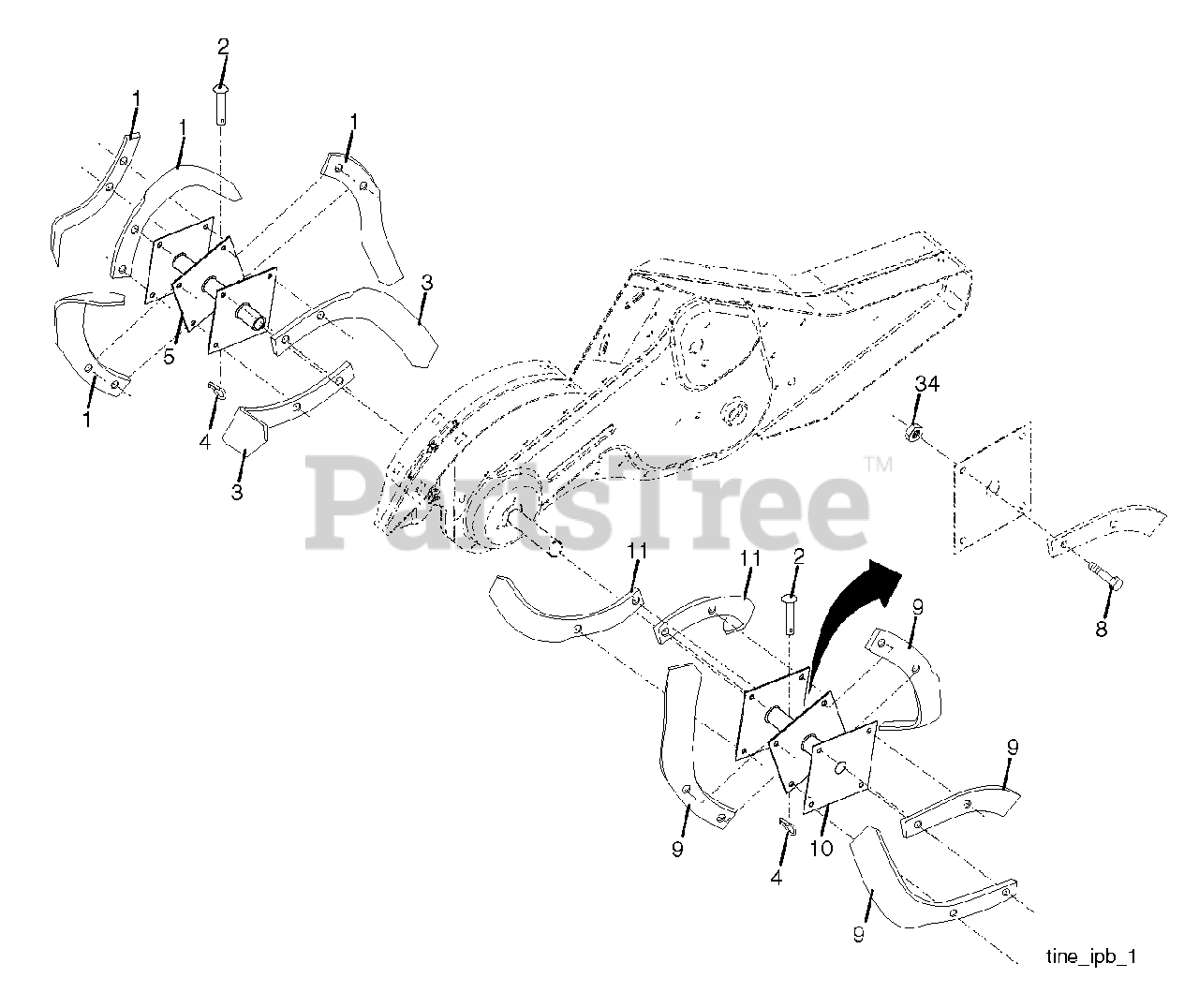

TINE ASSEMBLY Parts Diagram

  • Title
1

Husqvarna 532004459

TINE TI
(Superseded to 532006554)

Note: LH

$

$

Not available

2

Husqvarna 532132673

CLEVIS PIN

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 532006554

TINE.LH.12"(72L)

Note: LH

$

$

Not available

4

Husqvarna 532124660

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 532132727

HUB.&.PLATE.ASM.LH

Note: LH

$79.99

$

Usually ships in 3-10 days

0

8

Husqvarna 874610616

BOLT.HEX.001X20.37-24X1.ZINC

$7.49

$

In Stock, Qty 20+

0

9

Husqvarna 532004460

TINE TI
(Superseded to 532006555)

Note: RH

$

$

Not available

10

Husqvarna 532132728

HUB & PLATE ASM RH
(Superseded to 581813701)

Note: RH

$72.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532006555

TINE.RH.12"(72R)

Note: RH

$

$

Not available

34

Husqvarna 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0
