CRT 83 (954140066-B) - Husqvarna Rear-Tine Tiller (1999-04) Transmission Parts Diagram

Rear-Tine Tiller

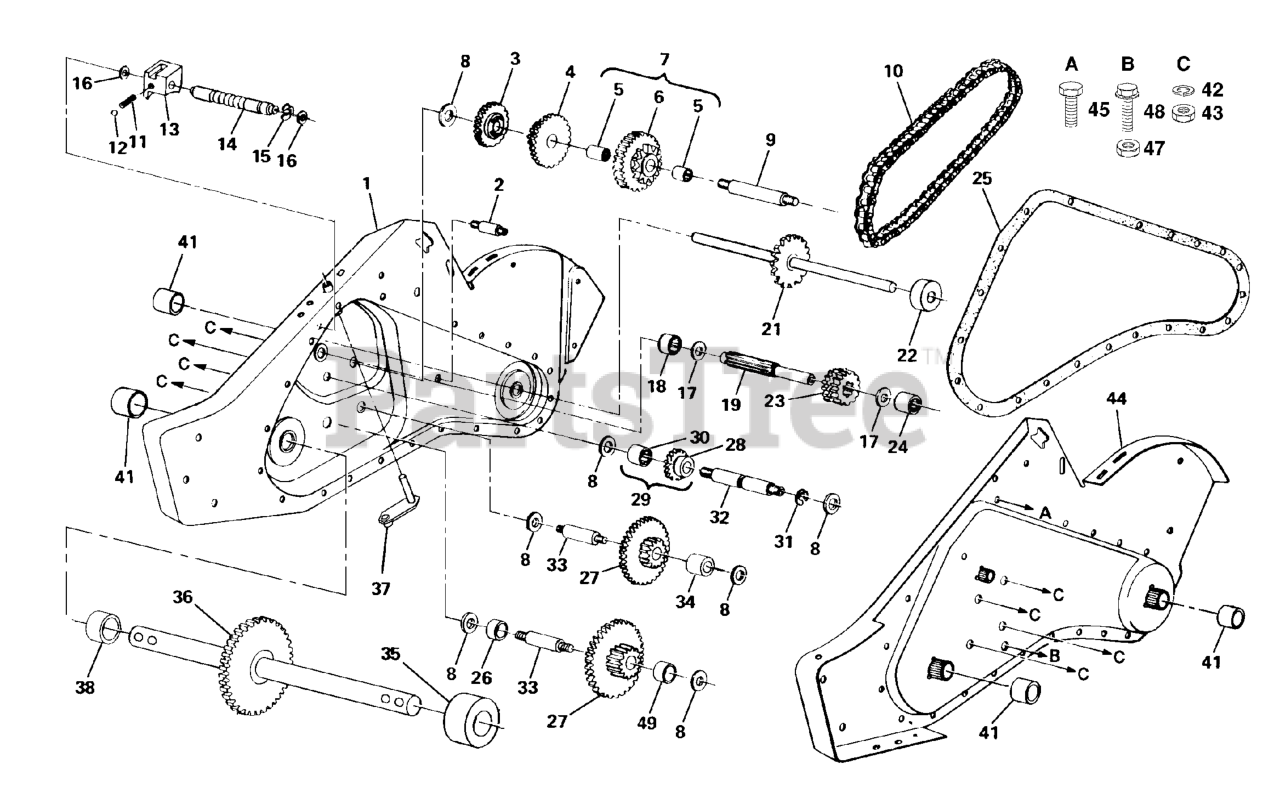

Transmission Parts Diagram

  • Title

Husqvarna 532162169

Transmission Assembly
(Superseded to 532183655)

$910.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532162163

Gearcase Assembly, R.H., with Bearing
(Superseded to 532162170)

Note: (Includes Key No. 18)

$358.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532008370

Bolt, Upset

$

$

Not available

3

Husqvarna 532008547

Gear, Reverse
(Superseded to 532414031)

$

$

Not available

4

Husqvarna 532008546

Gear, Cluster, Red., 1st and 2nd
(Superseded to 532414031)

$

$

Not available

5

Husqvarna 532100413

Bearing, Needle
(Superseded to 585695501)

$24.99

$

In Stock, only 2 left!

0

6

Husqvarna 532144564

Sprocket Assembly, Tine

$

$

Not available

7

Husqvarna 532144563

Sprocket Assembly with Bearings
(Superseded to 532144564)

Note: (Includes Key #6 & two of Key #5)

$

$

Not available

8

Husqvarna 532004358

Washer

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532008358

Shaft, Reduction, 1st

$17.99

$

In Stock, only 1 left!

0

10

Husqvarna 532008371

Chain, Roller, 60P

$66.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532100371

Spring, Shift, Fork

$7.49

$

In Stock, Qty 6

0

12

Husqvarna 532124697

Ball, Steel
(Superseded to 532100482)

$7.49

$

In Stock, only 1 left!

0

13

Husqvarna 532008353

Fork, Shift

$34.99

$

In Stock, Qty 8

0

14

Husqvarna 532008354

Shaft, Shift

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 812000039

Klip Ring

$6.49

$

In Stock, Qty 7

0

16

Husqvarna 532154467

Washer, Seal

$7.49

$

In Stock, only 2 left!

0

17

Husqvarna 532001370

Race, Bearing, Thrust, 5/8 I.D.

$6.49

$

In Stock, only 2 left!

0

18

Husqvarna 532124792

Bearing, Needle
(Superseded to 532004895)

$17.99

$

In Stock, Qty 15

0

19

Husqvarna 532150695

Shaft, Input

$66.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532105378

Shaft Assembly, Tine
(Superseded to 532432060)

$121.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532106181

Spacer 1.008 x 1-3/4 x .645

$14.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532008359

Pinion, Input

$

$

Not available

24

Husqvarna 532005020

Bearing, Needle

$17.99

$

In Stock, Qty 6

0

25

Husqvarna 532164396

Gasket, Gearcase
(Superseded to 532431023)

$34.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532106389

Spacer .765 I.D. x 1.12 x 5/8

$9.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532100433

Gear, Cluster, Red., 2nd and 3rd

$56.99

$

In Stock, only 1 left!

0

28

Husqvarna 532008357

Gear, Reverse Idler

$36.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532144562

Gear Assembly, Reverse Idler

Note: (Includes Key Numbers 28 and 30)

$54.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532006803

Bearing, Needle

$10.99

$

In Stock, Qty 5

0

31

Husqvarna 812000040

Klip Ring

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532008356

Shaft, Reverse Idler

$21.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532100016

Shaft, Reduction, 2nd

$43.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532106392

Spacer .765 I.D. x 1-1/8 x 1-3/8

$

$

Not available

35

Husqvarna 532106394

Spacer, Ground Drive, L.H.

$31.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532100436

Shaft Assembly, Ground

$145.99

$

In Stock, only 1 left!

0

37

Husqvarna 532142145

Arm Assembly, Shift

$

$

Not available

38

Husqvarna 532106393

Spacer, Ground Drive, R.H.

$21.99

$

In Stock, only 1 left!

0

41

Husqvarna 532155236

Seal Asm Oil

$7.49

$

In Stock, only 3 left!

0

42

Husqvarna 810040700

Washer, Lock 7/16
(Superseded to 539990247)

$

$

Not available

43

Husqvarna 873610700

Nut, Hex 7/16-20

$7.49

$

In Stock, only 3 left!

0

44

UNKNOWN

$

$

Not available

45

UNKNOWN

$

$

Not available

47

UNKNOWN

$

$

Not available

48

UNKNOWN

$

$

Not available

49

UNKNOWN

$

$

Not available
