CRT 81 (960910003-00) - Husqvarna Rear-Tine Tiller (2005-01) TINE ASSEMBLY Parts Diagram

Rear-Tine Tiller

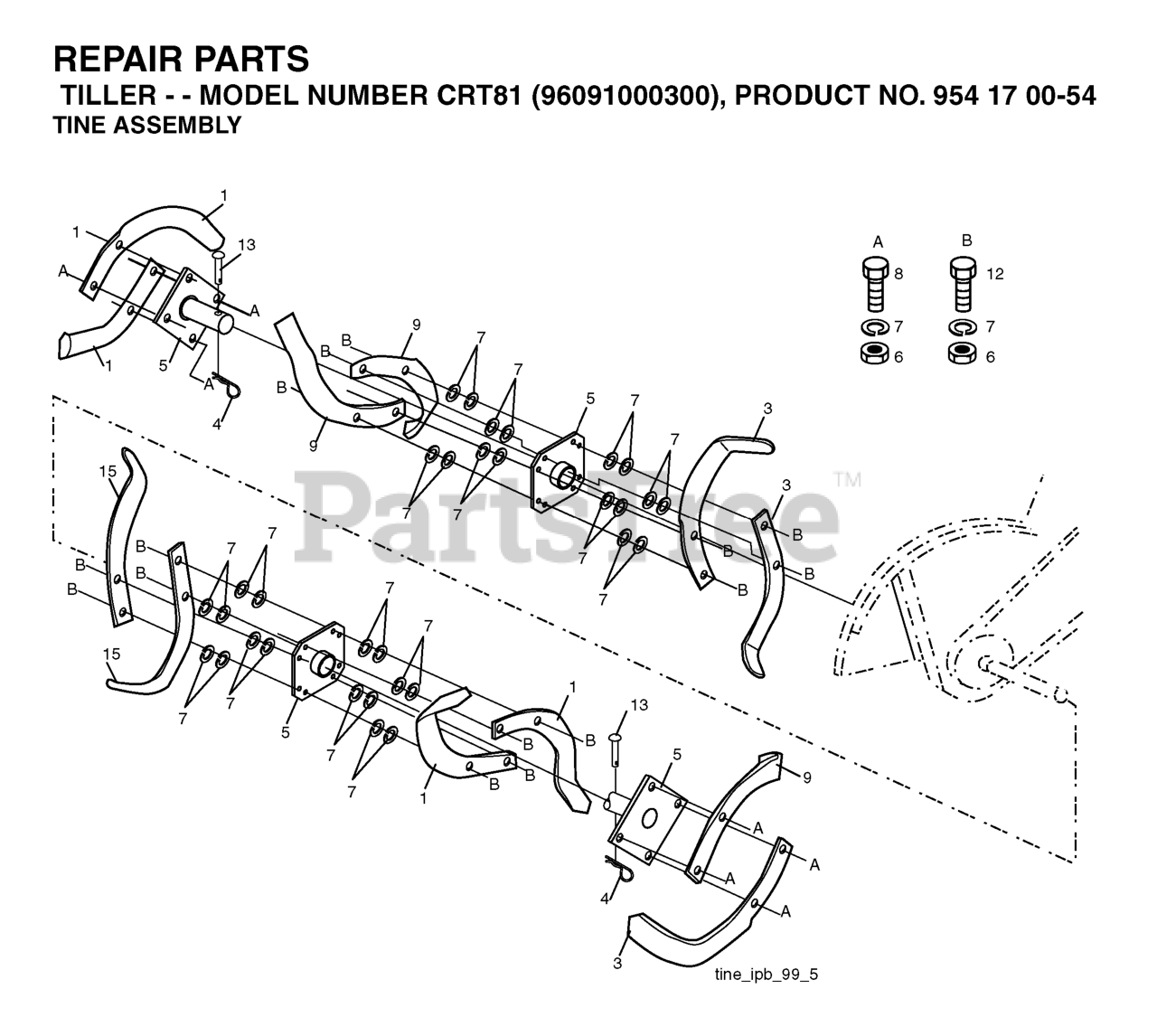

TINE ASSEMBLY Parts Diagram

  • Title
15

Husqvarna 532101193

TINE.RH.14".CRT

$24.99

$

In Stock, only 3 left!

0

12

Husqvarna 874610624

BOLT.3/8-24X1-1/2

$6.49

$

In Stock, only 1 left!

0

3

Husqvarna 532101194

TINE.LH.14".CRT

$24.99

$

In Stock, only 3 left!

0

7

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

13

$7.49

$

Usually ships in 3-10 days

0

6

Husqvarna 873610600

NUT
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532006557

TINE, RH 14"
(Superseded to 532101193)

$24.99

$

In Stock, only 3 left!

0

8

Husqvarna 874610616

BOLT.HEX.001X20.37-24X1.ZINC

$7.49

$

In Stock, Qty 20+

0

4

Husqvarna 532124660

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

1

Husqvarna 532006556

TINE, LH 14"
(Superseded to 532101194)

$24.99

$

In Stock, only 3 left!

0

5

Husqvarna 532189359

TINE.HUB.ASM.W/SHEILD
(Superseded to 584462901)

$

$

Not available
