CRT 81 (954328434-E) - Husqvarna Rear-Tine Tiller (2001-01) TRANSMISSION Parts Diagram

Rear-Tine Tiller

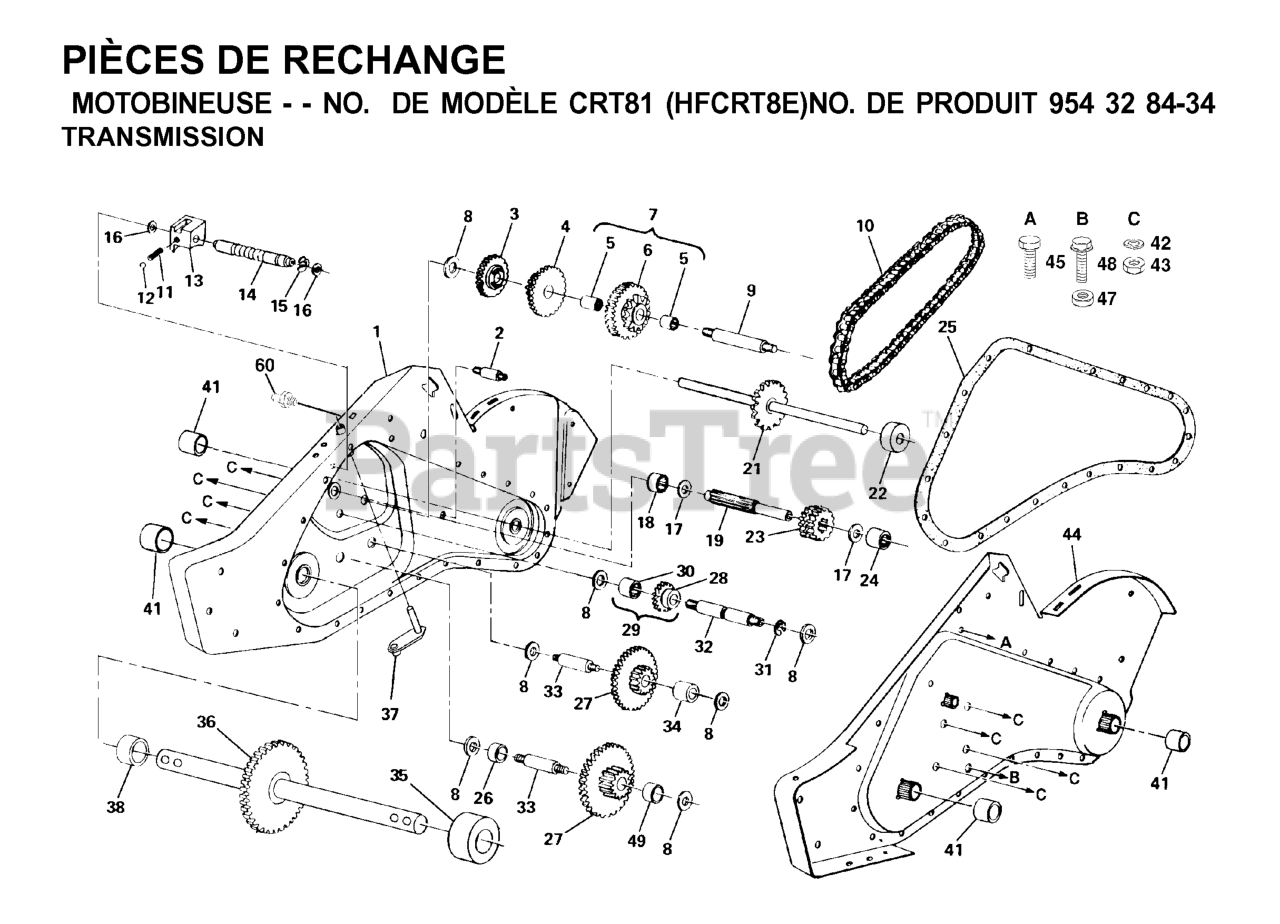

TRANSMISSION Parts Diagram

  • Title

38

Husqvarna 532106393

SPACER, GROUND DRIVE

$34.99

$

In Stock, only 1 left!

0

31

Husqvarna 812000040

KLIP RING

$6.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532006803

NEEDLE BEARING TI

$11.99

$

In Stock, only 4 left!

0

29

Husqvarna 532144562

GEAR ASMBLY, REVERSE IDLER

$56.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532106181

SPACER 1.008X1-3/4X.645

$17.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532100413

BEARING.NEEDLE.CRT
(Superseded to 585695501)

$34.99

$

In Stock, only 2 left!

0

34

Husqvarna 532106392

SPACER.765 X 1.12 X .380.

$

$

Not available

33

Husqvarna 532100016

SHAFT, REDUCTION

$51.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 532176129

NEEDS DESCRIPTION

$

$

Currently unavailable

21

Husqvarna 532105378

SHAFT TINE CRT
(Superseded to 532432060)

$121.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532144563

SPROCKET ASMBLY W/BEARINGS
(Superseded to 532144564)

$

$

Not available

36

Husqvarna 532100436

SHAFT ASSY CRT

$148.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532106394

SPACER, GROUND DRIVE RH

$31.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532100371

SPRING-SHIFT CRT

$7.49

$

In Stock, Qty 6

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

12

Husqvarna 532124697

STEEL BALL KIT
(Superseded to 532100482)

$7.49

$

In Stock, Qty 12

0

1

Husqvarna 532170325

GAERCASE.ASM.RH.W/BEARING

$122.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532155236

SEAL ASM, OIL

$7.49

$

In Stock, Qty 20+

0

49

Husqvarna 532106391

SPACER

$15.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 532162170

KIT.GEARCASE L&RH

$358.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532100107

SCREW 5/16-18X4

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532008356

SHAFT, REVERSE IDLER

$

$

Not available

9

Husqvarna 532008358

SHAFT.REDUCTION.TILLER

$17.99

$

In Stock, only 4 left!

0

43

Husqvarna 873610700

NUT.ASF.HEX.7/16

$7.49

$

In Stock, Qty 20+

0

10

Husqvarna 532008371

CHAIN.ROLLER.TILLER

$68.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532162165

GEARCASE ASM, LH
(Superseded to 532162170)

$358.99

$

Usually ships in 3-10 days

0

45

Husqvarna 817720510

SCREW
(Superseded to 817490510)

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532008357

REVERSE GEAR

$36.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532175035

GEAR.REVERSE.8HP
(Superseded to 583066801)

$24.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532175031

GEAR.PINION
(Superseded to 586196401)

$62.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532105345

GEAR TI

$68.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532100433

GEAR, CLUSTER CRT

$62.99

$

In Stock, only 1 left!

0

6

Husqvarna 532144564

SPROCKET ASMBLY, TINE

$

$

Not available

60

Husqvarna 532124836

ZERK M
(Superseded to 532183226)

$7.49

$

In Stock, Qty 11

0

14

Husqvarna 532175372

SHAFT.SHIFT.1.00 PINION
(Superseded to 583068601)

$7.49

$

Usually ships in 3-10 days

0

15

Husqvarna 812000039

KLIP RING

$6.49

$

In Stock, Qty 5

0

8

Husqvarna 532004358

WASHER

$7.49

$

In Stock, only 3 left!

0

19

Husqvarna 532150695

SHAFT INPUT

$66.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532124792

BEARING TI
(Superseded to 532004895)

$17.99

$

In Stock, Qty 9

0

47

Husqvarna 873220500

NUT

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532164396

RP GASKET, GEARCASE
(Superseded to 532431023)

$34.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532154467

WASHER, SEAL (2 2)

$7.49

$

In Stock, only 2 left!

0

2

Husqvarna 532008370

BOLT

$

$

Not available

37

Husqvarna 532142145

BRACKET ASM.SHIFT.CRT

$

$

Not available

26

Husqvarna 532106389

SPACER

$13.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532008353

SHIFT FORK TI

$34.99

$

In Stock, only 2 left!

0

24

Husqvarna 532005020

NEEDLE BRNG LT

$20.99

$

In Stock, only 4 left!

0

17

Husqvarna 532001370

THRUST WASHER

$6.49

$

In Stock, only 2 left!

0

- -

Husqvarna 532006066

GREASE CARTRIDGE
(Superseded to 585517301)

$

$

Not available
