CRT 51 - Husqvarna Rear-Tine Tiller (1998-02) TINE ASSEMBLY Parts Diagram

Rear-Tine Tiller

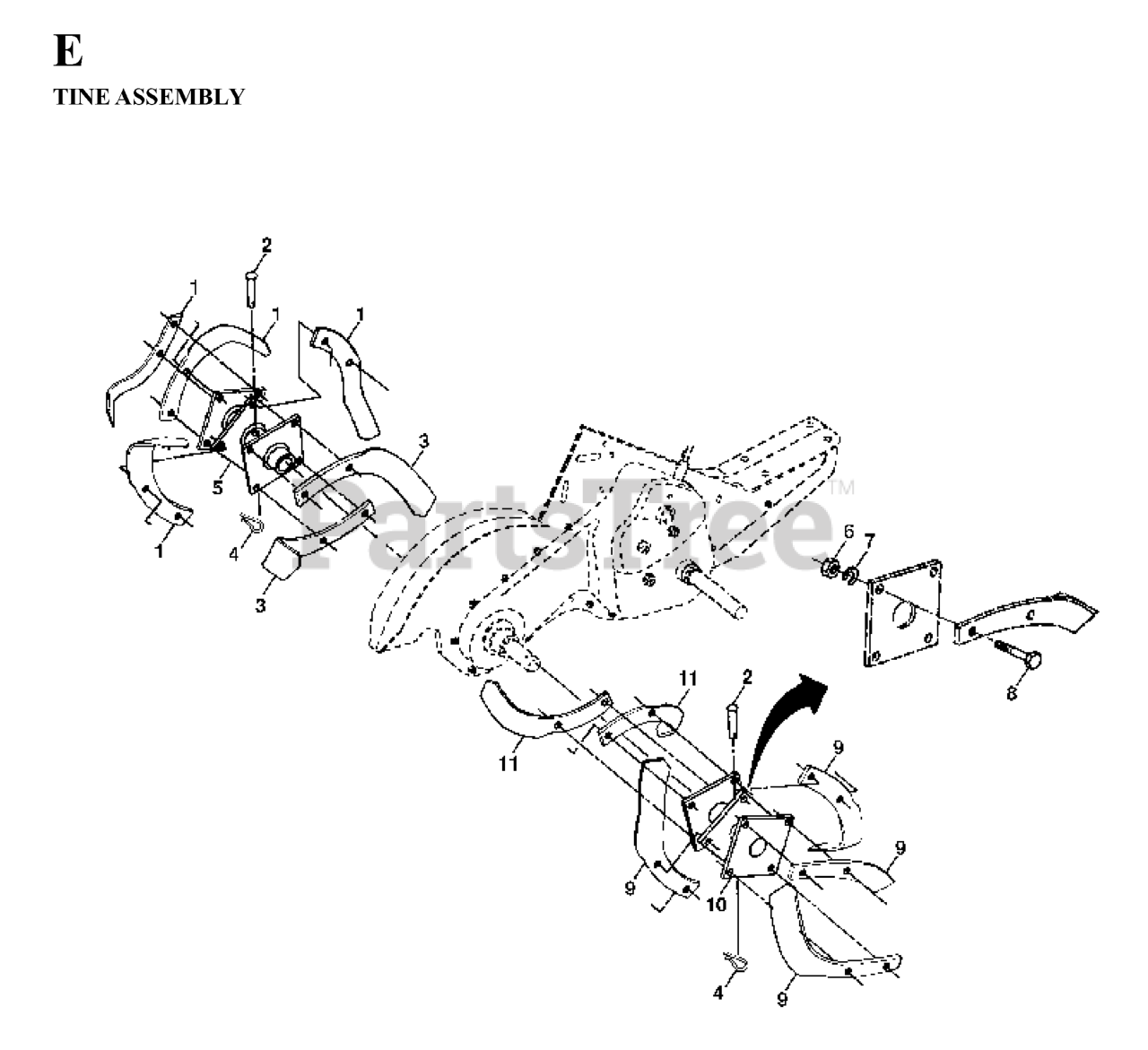

TINE ASSEMBLY Parts Diagram

  • Title
9

Husqvarna 532004460

TINE TI
(Superseded to 532006555)

$

$

Not available

7

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

4

Husqvarna 532124660

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

2

Husqvarna 532132673

PIN RETAINING SCREW

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 532006555

TINE.RH.12"(72R)

$

$

Not available

8

Husqvarna 874610616

BOLT.HEX.001X20.37-24X1.ZINC

$7.49

$

In Stock, Qty 20+

0

10

Husqvarna 532132728

HUB & PLATE ASM RH
(Superseded to 581813701)

$72.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532006554

TINE.LH.12"(72L)

$

$

Not available

6

Husqvarna 873610600

NUT
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532132727

HUB.&.PLATE.ASM.LH

$79.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532004459

TINE TI
(Superseded to 532006554)

$

$

Not available
