CRT 51 (HECRT51B) - Husqvarna Rear-Tine Tiller (1996-01) TRANSMISSION Parts Diagram

Rear-Tine Tiller

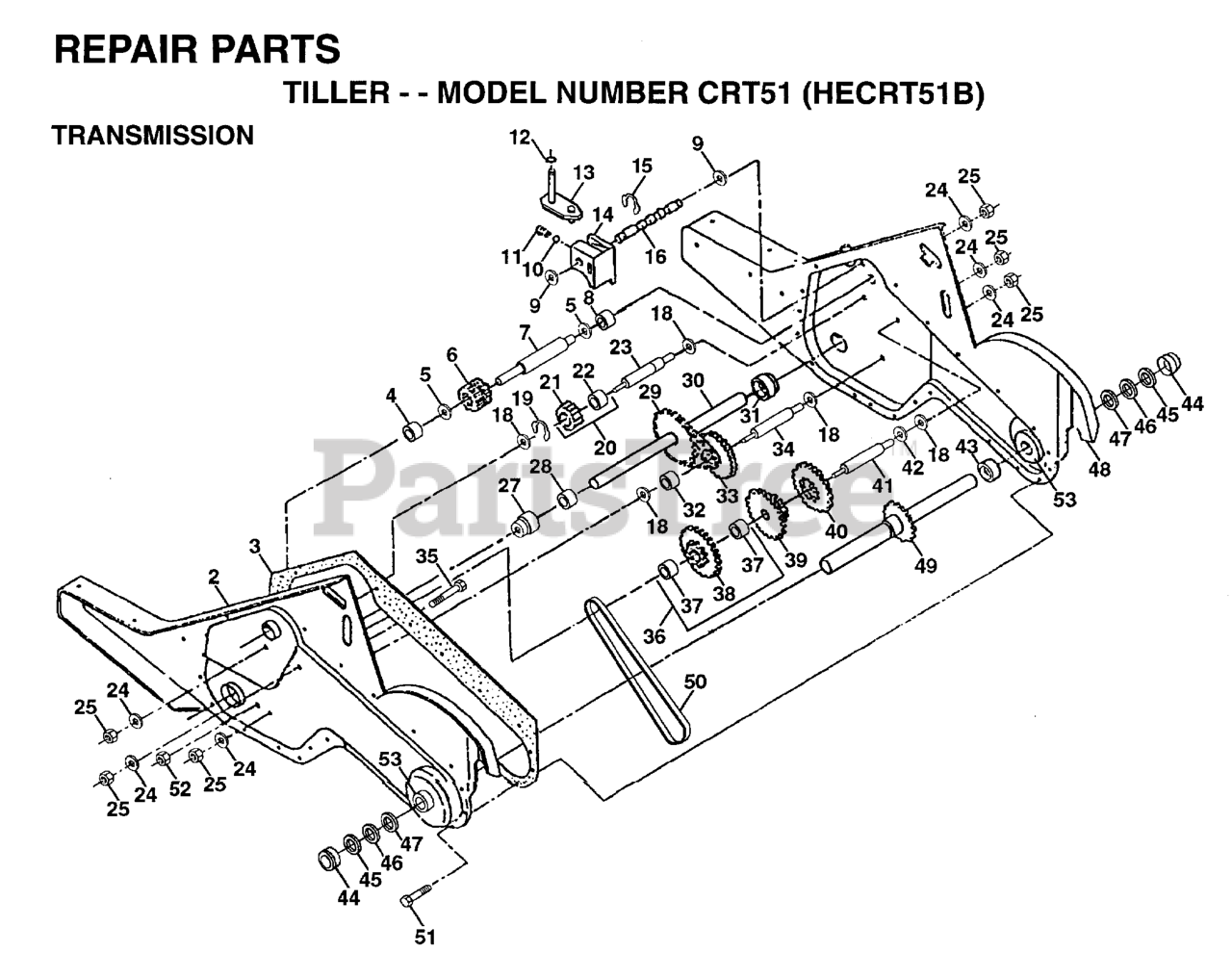

TRANSMISSION Parts Diagram

  • Title
30

Husqvarna 532150737

GROUND SHAFT ASS'Y

$

$

Not available

19

$6.49

$

Usually ships in 3-10 days

0

40

$45.99

$

Usually ships in 3-10 days

0

$7.49

$

Usually ships in 3-10 days

0

24

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

7

Husqvarna 532145101

SHAFT.INPUT."D".TILLER

$78.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532102114

GEAR ASSY CRT

$

$

Not available

23

$22.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532137335

GEAR.PINION.INPUT
(Superseded to 586196301)

$26.99

$

In Stock, only 1 left!

0

$

$

Not available

25

Husqvarna 873610700

NUT.ASF.HEX.7/16

$7.49

$

In Stock, only 1 left!

0

41

Husqvarna 532008358

SHAFT.REDUCTION.TILLER

$17.99

$

In Stock, only 1 left!

0

12

$6.49

$

In Stock, only 1 left!

0

8

Husqvarna 532124792

BEARING TI
(Superseded to 532004895)

$17.99

$

In Stock, Qty 14

0

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532008353

SHIFT FORK TI

$34.99

$

In Stock, Qty 8

0

37

Husqvarna 532124791

BEARING
(Superseded to 585695502)

$6.99

$

In Stock, only 2 left!

0

9

Husqvarna 532154467

WASHER, SEAL (2 2)

$7.49

$

In Stock, only 2 left!

0

29

$31.99

$

In Stock, only 2 left!

0

1

Husqvarna 532154354

TRANSMISSION ASSY
(Superseded to 532181098)

$849.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532154466

SHAFT.SHIFTER.TILLER

$6.99

$

In Stock, only 2 left!

0

44

Husqvarna 532009672

CUP
(Superseded to 532155236)

$7.49

$

In Stock, only 3 left!

0

49

Husqvarna 532132688

TINE SHAFT
(Superseded to 532432058)

$

$

Not available

34

Husqvarna 532102112

SHAFT.SECONDARY.REDUCTION.CRT

$43.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532102121

SPRCKT 8 GEAR CRT

$

$

Not available

38

Husqvarna 532154356

SPROCKET, TINE
(Superseded to 532154355)

$

$

Not available

5

Husqvarna 532001370

THRUST WASHER

$6.49

$

In Stock, only 2 left!

0

27

Husqvarna 532143009

BEARING, SHAFT LH CRT
(Superseded to 532431219)

$

$

Not available

42

Husqvarna 532004220

BRNG RACE T

$5.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532150700

GEARCASE RH W/BRG

$

$

Not available

15

$6.49

$

In Stock, Qty 7

0

3

Husqvarna 532106211

GASKET TI
(Superseded to 532431022)

$24.99

$

Usually ships in 3-10 days

0

43

$34.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532124697

STEEL BALL KIT
(Superseded to 532100482)

$7.49

$

In Stock, only 1 left!

0

22

Husqvarna 532006803

NEEDLE BEARING TI

$10.99

$

In Stock, Qty 5

0

13

Husqvarna 532142145

BRACKET ASM.SHIFT.CRT

$

$

Not available

21

Husqvarna 532102115

GEAR-REV IDLR CRT

$26.99

$

In Stock, only 1 left!

0

- -

Husqvarna 532006066

GREASE CARTRIDGE
(Superseded to 585517301)

$

$

Not available

$5.99

$

In Stock, only 1 left!

0

45

Husqvarna 532102144

RING.SPIRAL.CRT.TILLER

$7.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532154355

SPROCKET.ASM.W/BEARING.TILLER

$

$

Not available

53

Husqvarna 532122204

BEARING KIT
(Superseded to 532165140)

$93.99

$

In Stock, only 1 left!

0

31

Husqvarna 532143008

BEARING, SHAFT RH CRT

$

$

Not available

35

Husqvarna 532102101

SCRW WHIZ LOK CRT

$4.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532106147

CHAIN.TILLER

$66.99

$

In Stock, only 1 left!

0

39

$62.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532150698

GEARCASE LH W/BRG
(Superseded to 532407383)

$849.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532124698

OIL SEAL STD
(Superseded to 532007393)

$6.49

$

In Stock, Qty 5

0

4

Husqvarna 532005020

NEEDLE BRNG LT

$17.99

$

In Stock, Qty 5

0

11

Husqvarna 532100371

SPRING-SHIFT CRT

$7.49

$

In Stock, Qty 6

0

32

$6.99

$

In Stock, only 1 left!

0

51

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0
